37 14 512 Replacing Rear Ride-Height Sensor

37 14 512 - Replacing rear ride-height sensor (M3)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).

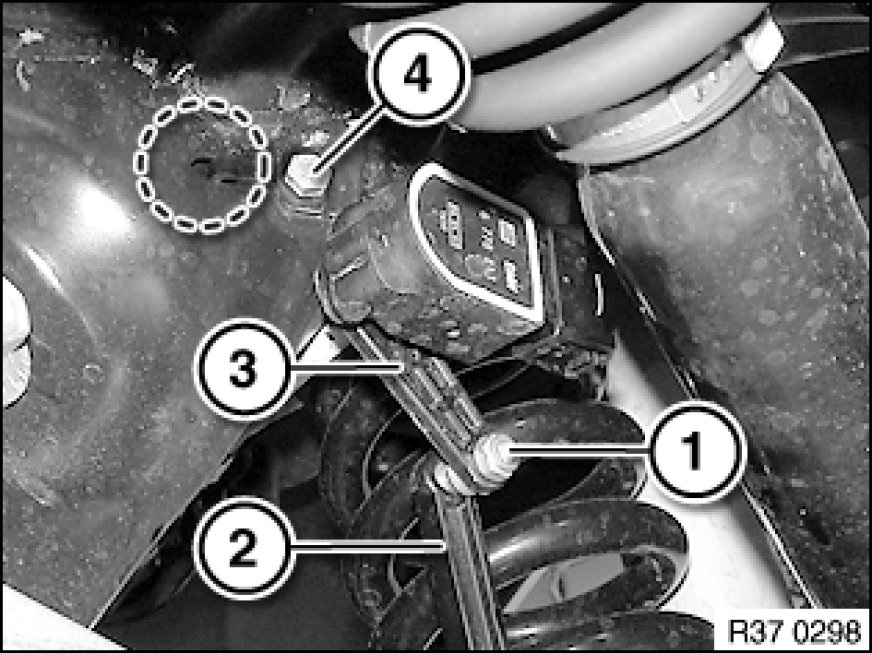

Release nut (1) and disengage jointed rod (2) on ride-height sensor.

Installation Note:
Replace self-locking nut.
Sensor lever (3) must point starting from ride-height sensor to left rear wheel.
Tightening torque 37 14 3AZ Specifications.

Release bolt (4) and remove ride-height sensor with holder from rear axle carrier.

Installation Note:
Align holder to corresponding bore in rear axle carrier.
Tightening torque 37 14 2AZ Specifications.

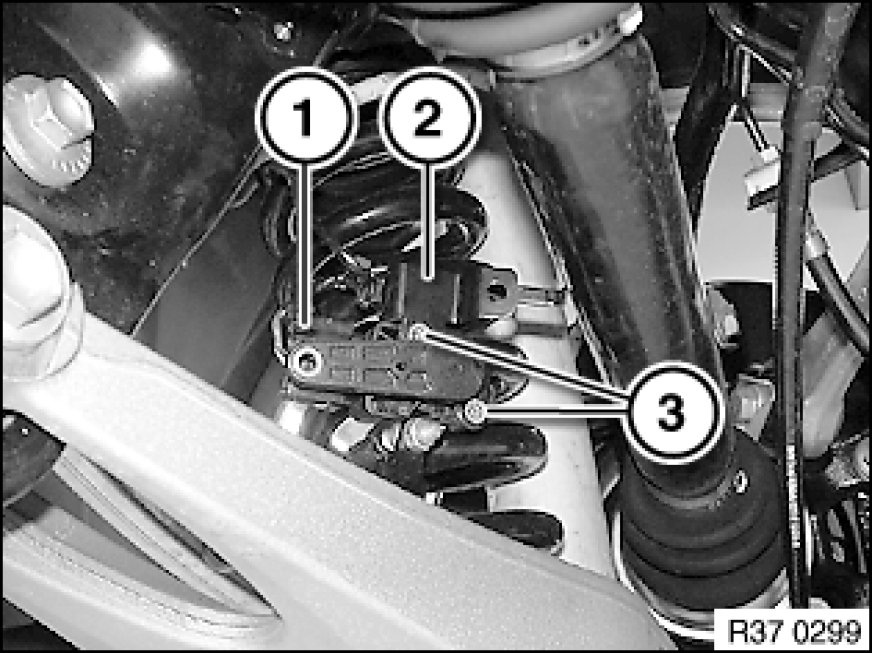

Disconnect plug connection (1).
Release screws (3) and remove ride-height sensor from bracket (2).

Installation Note:
Tightening torque 37 14 1AZ Specifications.





After installation:
- Check headlight adjustment Adjusting Headlights, correct if necessary
