32 41 100 Removing and Installing/Replacing Belt Pulley on Vane Pump For Power Steering

32 41 100 Removing and installing/replacing belt pulley on vane pump for power steering





Note:
Carry out preliminary work as described in the document "Replacing drive belt".





Slacken screws (1)

Relieve tension on drive belt and remove from belt pulley (2).

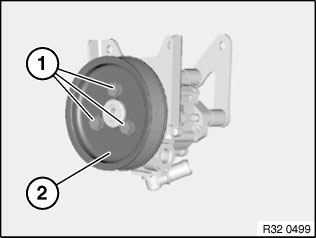

Unscrew bolts (1) and remove belt pulley (2).

Installation note:
Lettering on belt pulley (2) must point forwards.

Tightening torque 32 41 3AZ.
