Outside Temperature Display Sensor: Service and Repair

65 81 060 - Removing and installing/replacing outside temperature sensor (M3)





Release screws (1 and 2).
Remove tip of engine compartment shield (3) on left/right.

Installation:
Make sure tip of engine compartment shield (3) is installed in correct position.

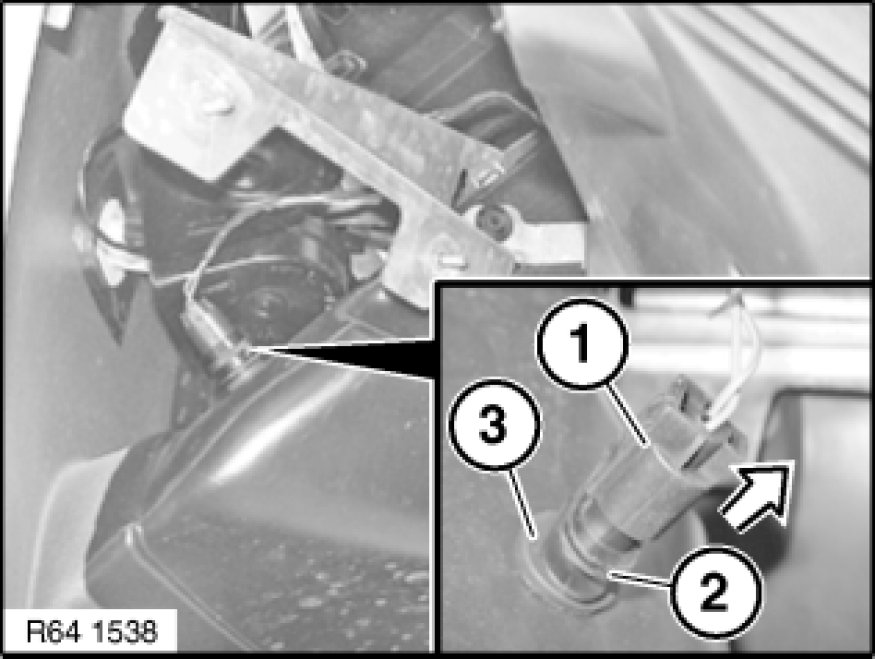

Disconnect plug connection (1).
Unclip outside temperature sensor (2) in direction of arrow and remove.

Installation:
Outside temperature sensor (2) must audibly snap into place.
Ensure correct seating in air duct (3).
