13 31 028 Checking Fuel Feed Pressure

13 31 028 - Checking fuel feed pressure (S65)





Special tools required:
- 13 5 270 13 5 270 Adapter






Necessary preliminary tasks:
- Connect DIS Tester.
- Remove air intake filter housing Service and Repair





Recycling:
Catch and dispose of escaping fuel in a suitable container.
Observe country-specific waste-disposal regulations.

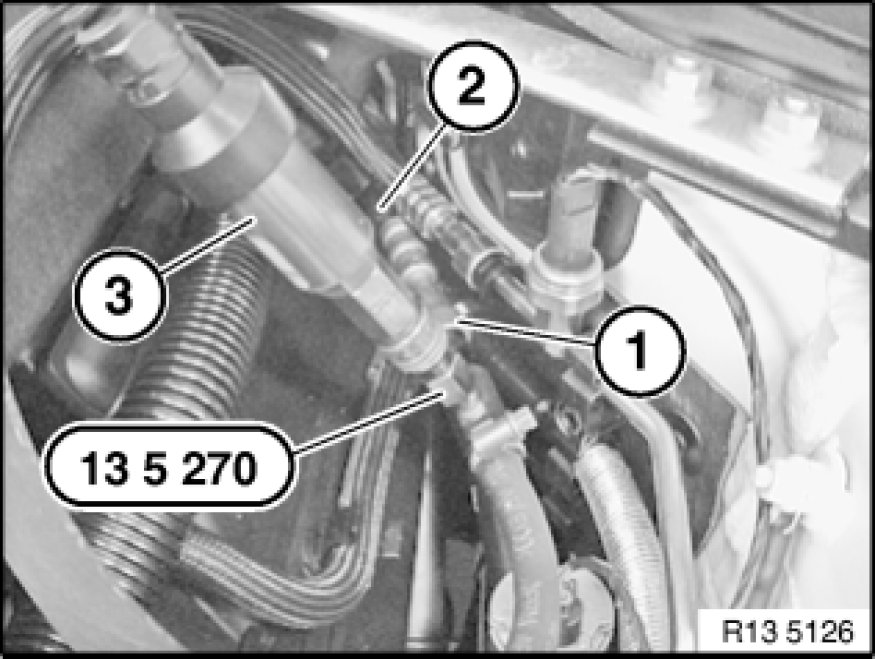

Disconnect quick-release coupling (1) from feed line (2).
Insert special tool 13 5 270 between lines (1) and (2).
Connect pressure sensor (3) of DIS Tester.
Switch on ignition. Read off fuel feed pressure at BMW diagnosis system.
Fuel pressure, refer to Technical Data 13 31 Fuel Pump with Drive and Pipe S65.
