Replacing Pulse Generator on Crankshaft/Transmission

13 62 610 - Replacing pulse generator on crankshaft/transmission (S65)





Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through test schedules
- Switch off ignition
- Remove underbody protection Removing and Installing/Replacing Front Underbody Protection
- Remove reinforcement plate 31 10 010 Removing and installing/replacing reinforcement plate

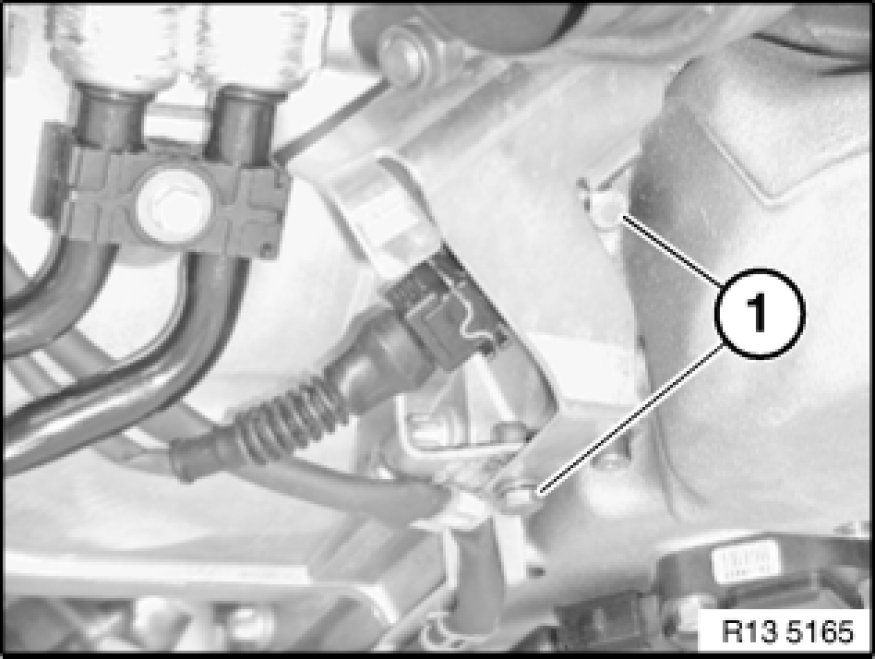

Release screws (1).
Remove cover.

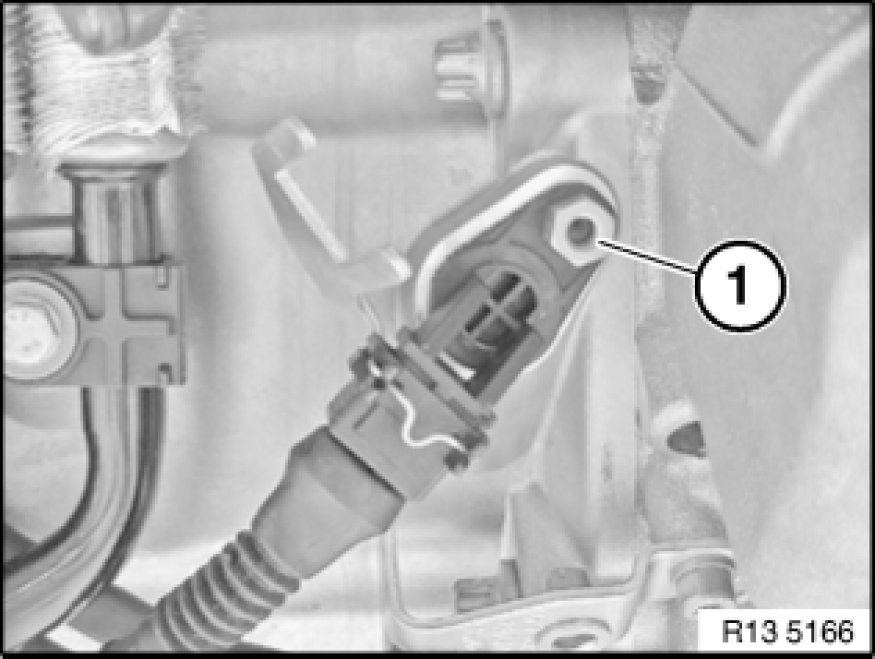

Unlock connector and remove.
Release screw (1).
Remove pulse generator.






Note:
Now clear the fault memory.
Add final details to vehicle.
