Intake Air Duct: Service and Repair

13 41 100 - Removing and installing/replacing supplementary air line (S65)





Necessary preliminary tasks:
- Remove intake air manifold Service and Repair
- Partially disconnect and raise engine wiring harness 12 51 001 Replacing Wiring Harness Section for Engine
- Unclip holders for supplementary wiring harness





Remove idle air hose (2).
Replace clamps.
Lever idle actuator out of holder.

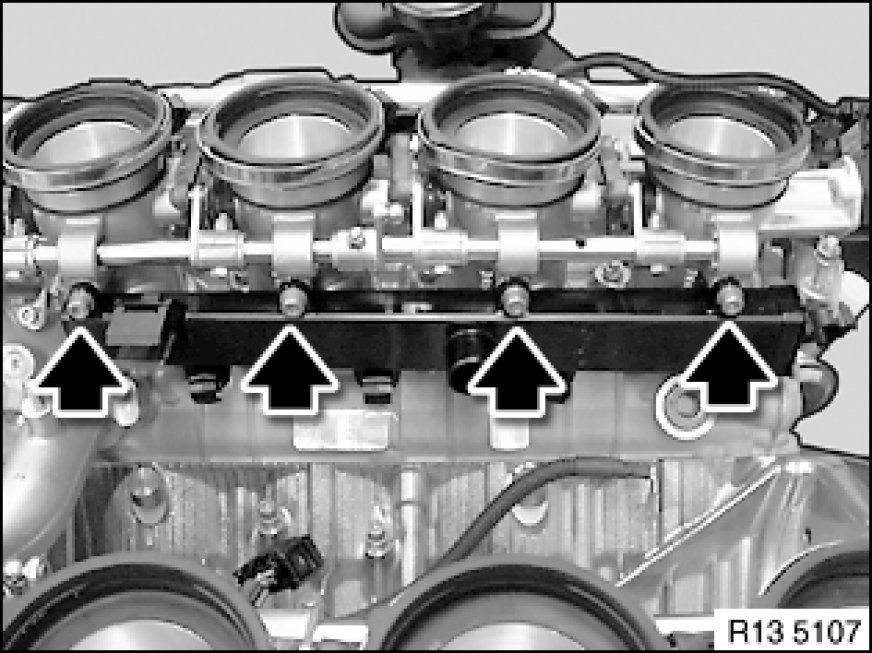

Release screws, detach idle air line.
Remove intake manifold pressure sensor Service and Repair on bank 2.

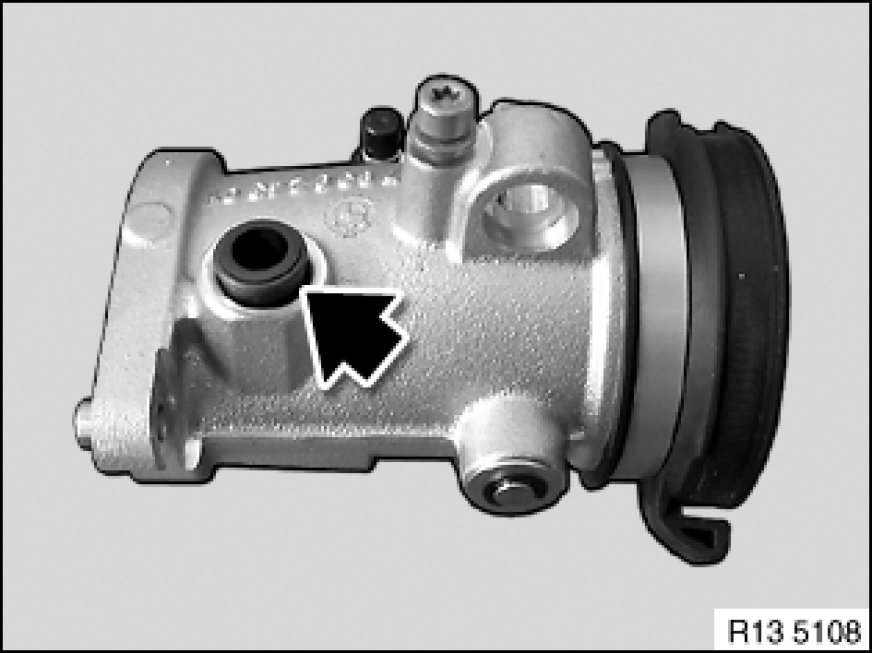

Before installing, check O-rings on unions and apply a light coating of grease.
Assemble engine.
