64 31 063 Removing and Installing/Replacing Right Lower Microfilter Housing Section

64 31 063 - Removing and installing/replacing right lower microfilter housing section





Necessary preliminary tasks:
- Remove right upper microfilter housing section 64 31 072 Removing and Installing/Replacing Left Upper Microfilter Housing Section

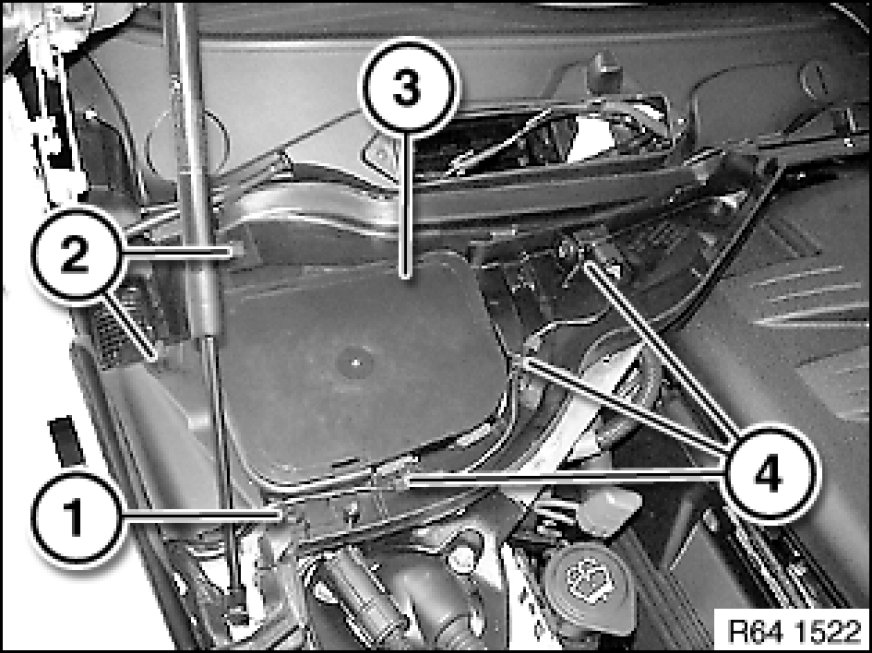

Release screw (1).
Pull off rubber tabs (2) and remove cover (3).
Unclip AUC sensor (4) with electrical lead and remove lower microfilter housing section.

Installation:
Ensure correct lead routing.





Installation:

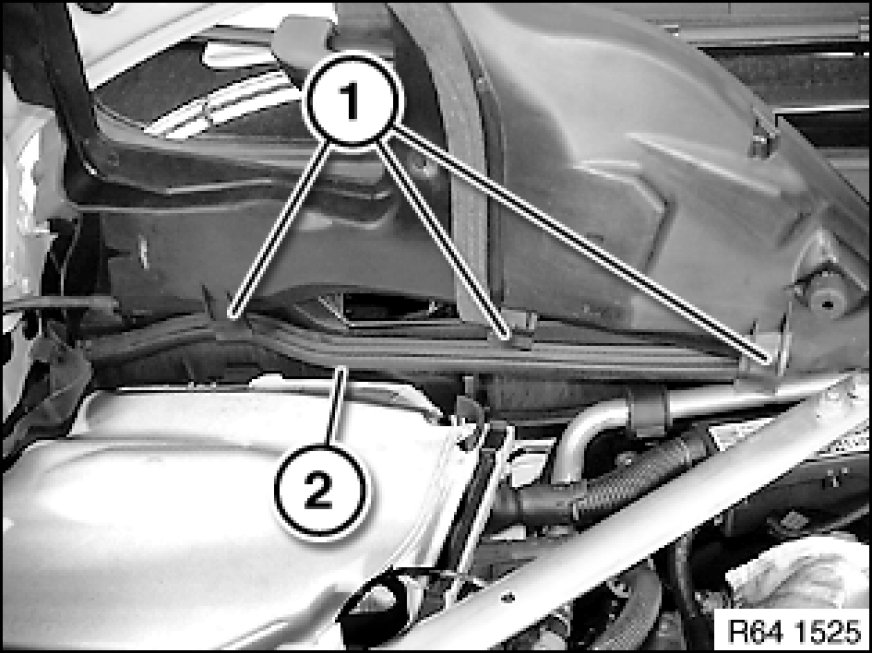

Retaining lugs (1) must be correctly inserted in cowl panel (2).
