Valve Guide Seal: Service and Repair

11 34 560 - Replacing all valve stem seals (S65)





Special tools required:
- 11 1 480
- 11 5 270






Necessary preliminary tasks:
- Remove cylinder head.
- Remove all valve springs Service and Repair.

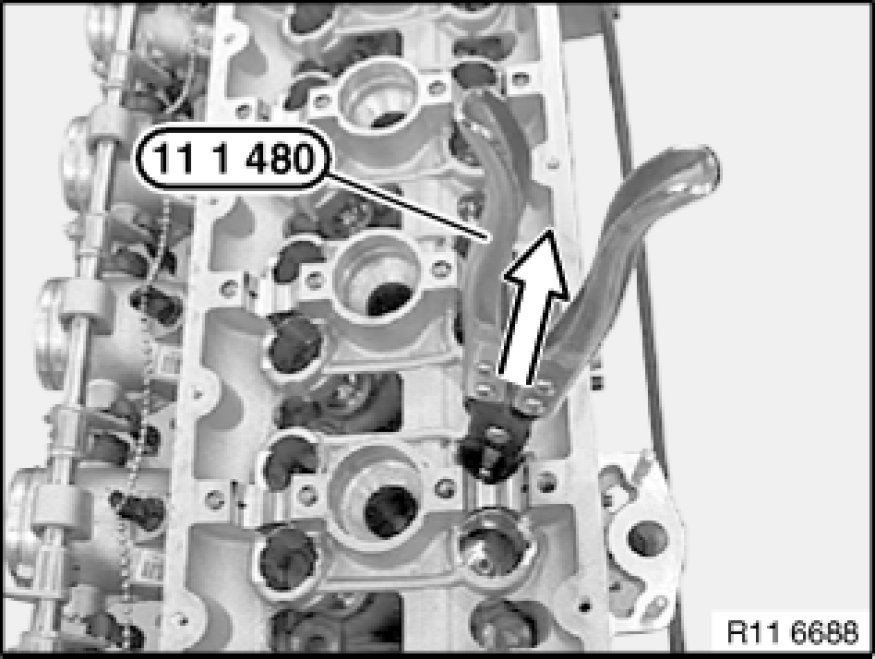

Remove valve stem seal with special tool 11 1 480 in direction of arrow.






Installation:

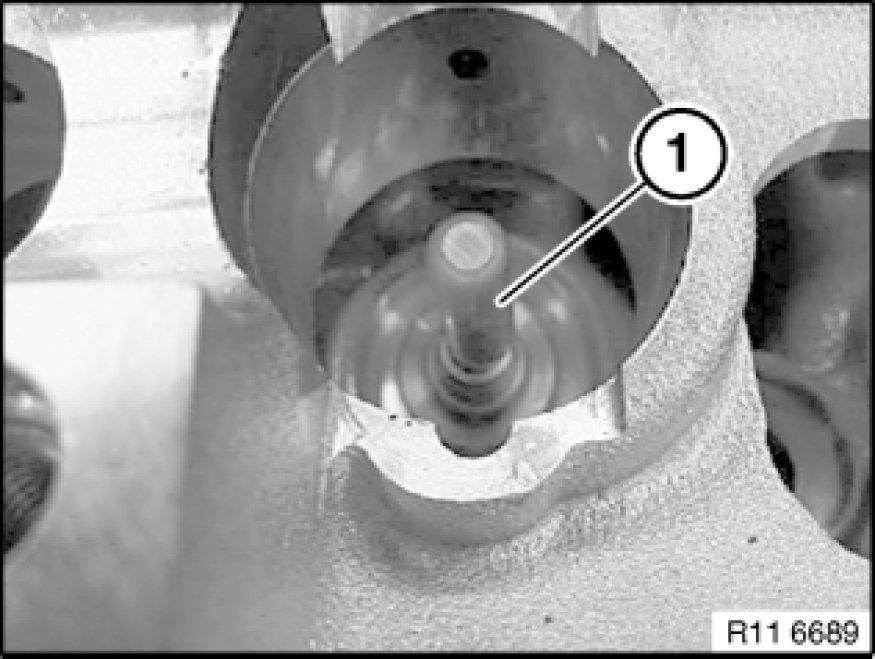

Attach the mounting sleeve (1) supplied with the new part to the valve stem.

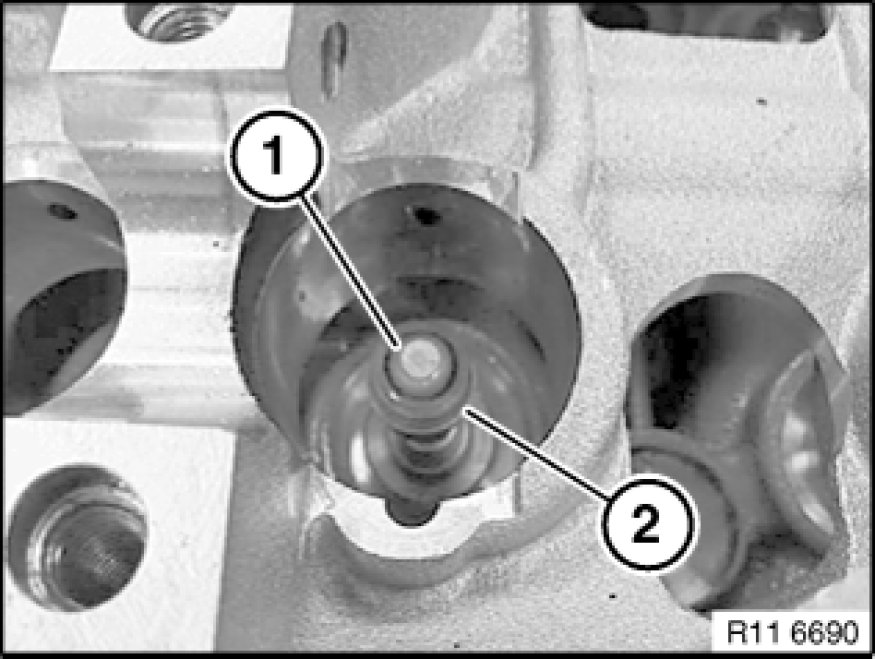

Attach valve stem seal (2) over mounting sleeve (1).





Press on valve stem seal with special tool 11 5 270 in direction of arrow as far as it will go.





Assemble engine.
