11 42 080 Removing and Installing/Replacing Oil Pressure Hose - Feed

11 42 080 - Removing and installing/replacing oil pressure hose - feed - (S65)





Important!
It is essential to adhere to the exact filling capacities specified.
Overfilling the engine with engine oil will result in engine damage.





Recycling:
Catch and dispose of emerging engine oil with suitable equipment.
Note national regulations.





Necessary preliminary tasks:
- Remove fan cowl Service and Repair with electronic fan.
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection.

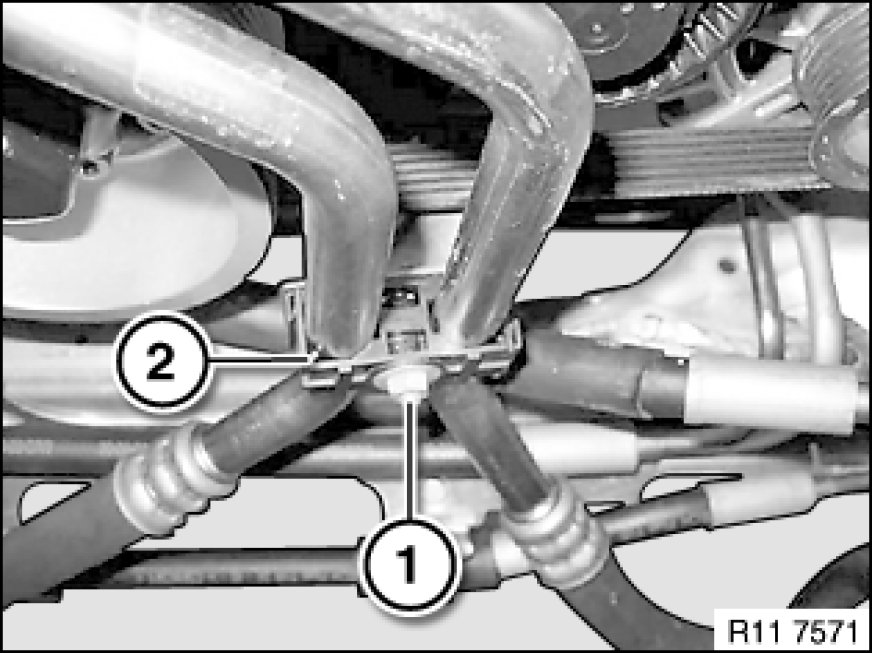

Slacken nut (1).
Disconnect oil line (2).

Installation Note:
Replace O-ring.





Slacken nut (1).
Unclip bracket (2).





Slacken nut (1).
Disconnect oil line (2).

Installation Note:
Replace O-ring.





Assemble engine.
Park vehicle on a horizontal surface.
Allow engine at normal operating temperature to run for 3 minutes with increased revs (min. 1000 / max. 1500 rpm).
Read off engine oil level in instrument cluster or on Control Display.
