11 36 720 Removing and Installing/Replacing Both Solenoid Valves on Right Side

11 36 720 - Removing and installing/replacing solenoid valves on right VANOS adjustment unit (S65)





Necessary preliminary tasks:
- Remove intake manifold Service and Repair (inlet solenoid valve only).





Disconnect plug connection (2) on solenoid valve for exhaust adjustment.
Release screw (1).
Remove exhaust solenoid valve.

Installation:
Replace O-rings.

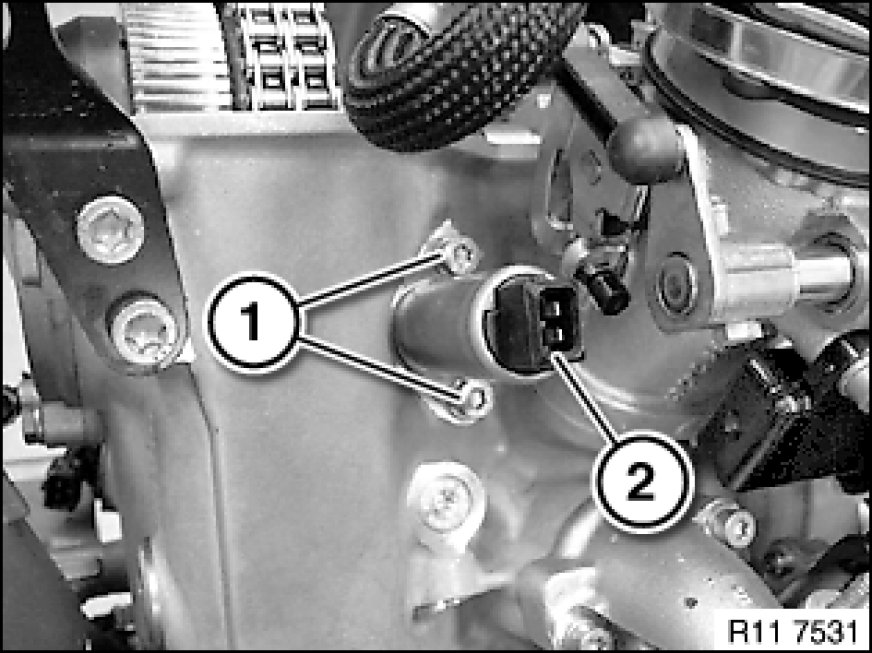

Disconnect plug connection on solenoid valve for inlet adjustment.
Release screws (1).
Remove inlet solenoid valve (2).

Installation:
Replace O-ring.





Assemble engine.
Perform VANOS test.
