Home
>>
BMW
>>
2011
>>
M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Diagrams
>>

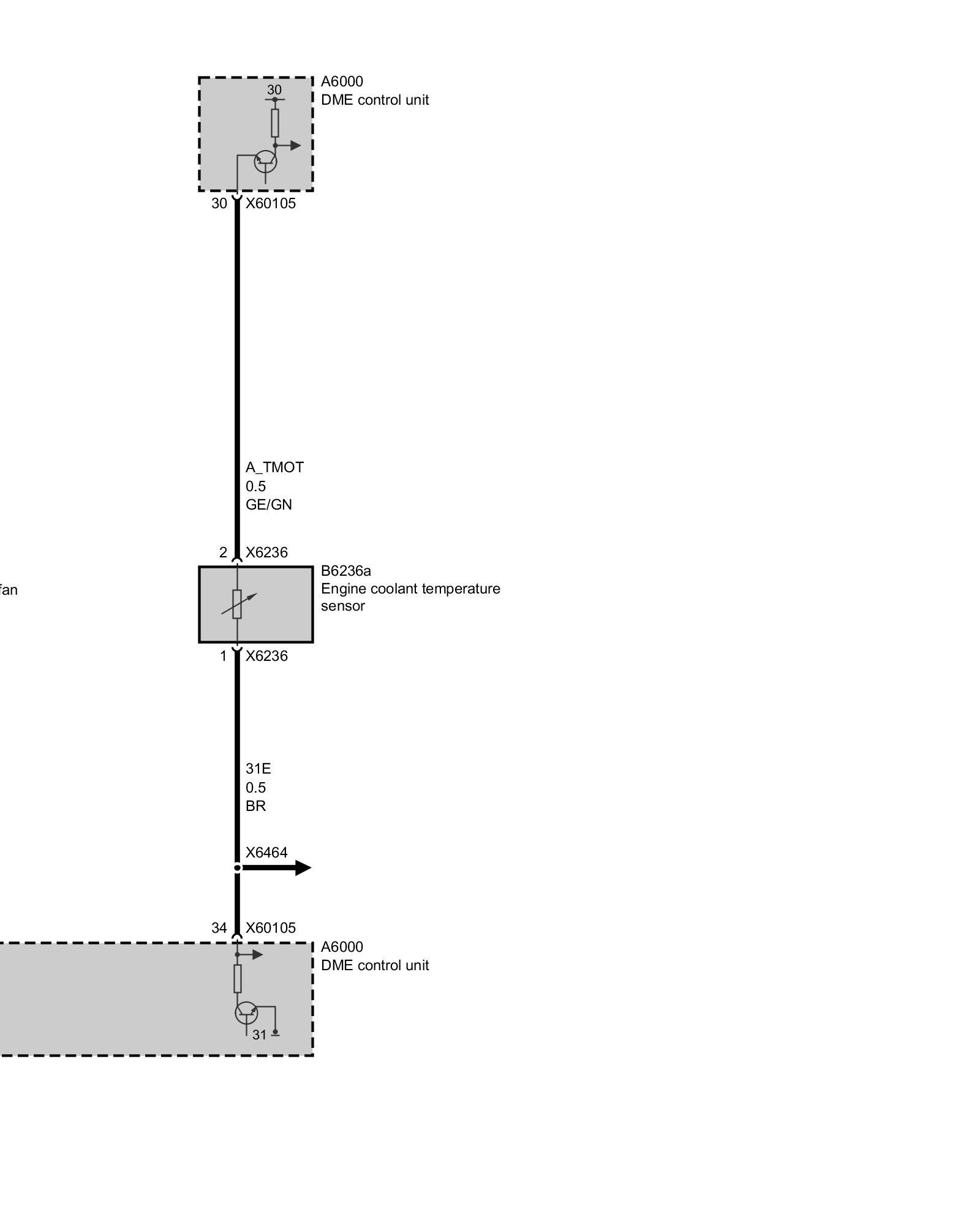

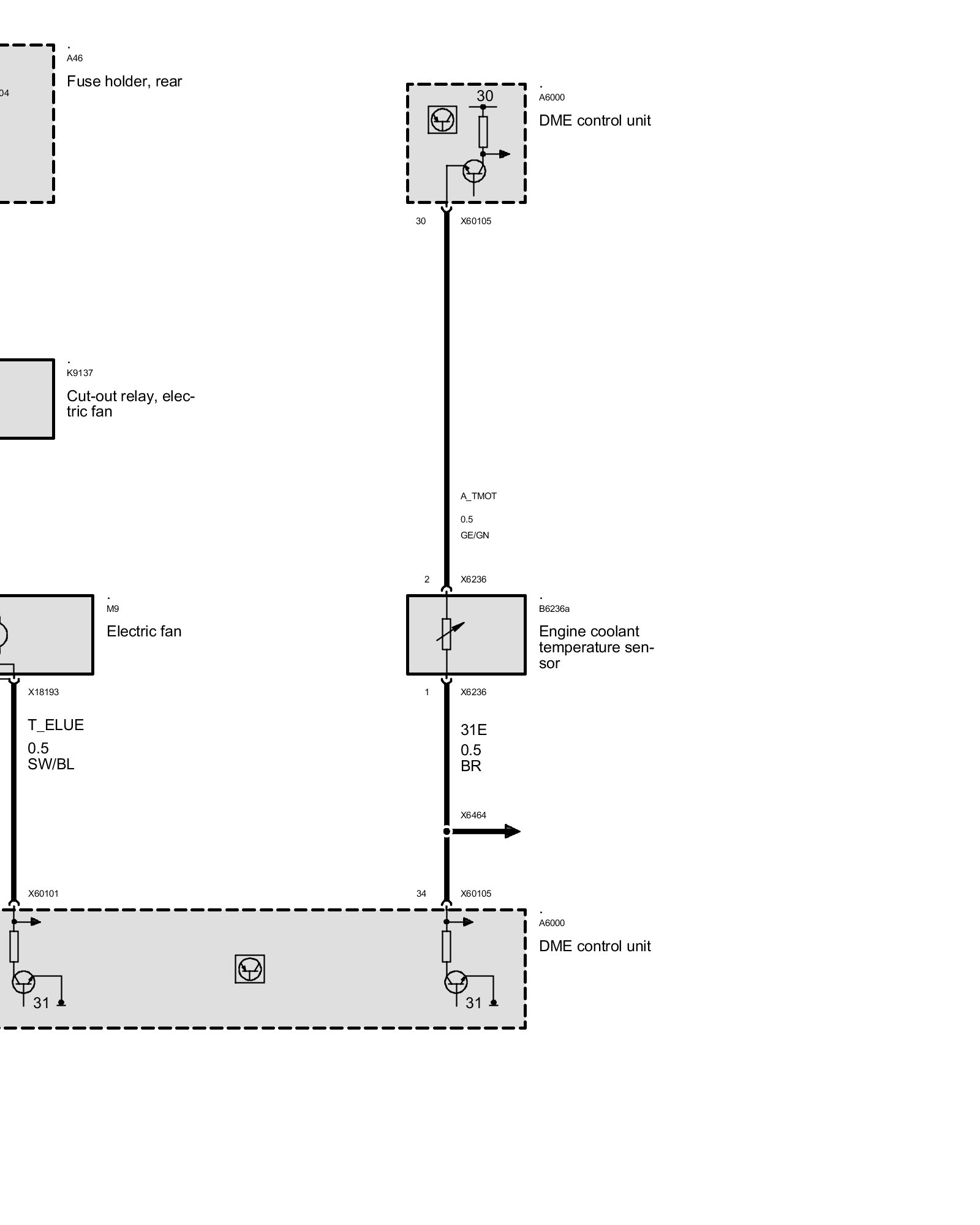

Electrical Diagrams
Electrical Diagrams
Engine
Cooling System

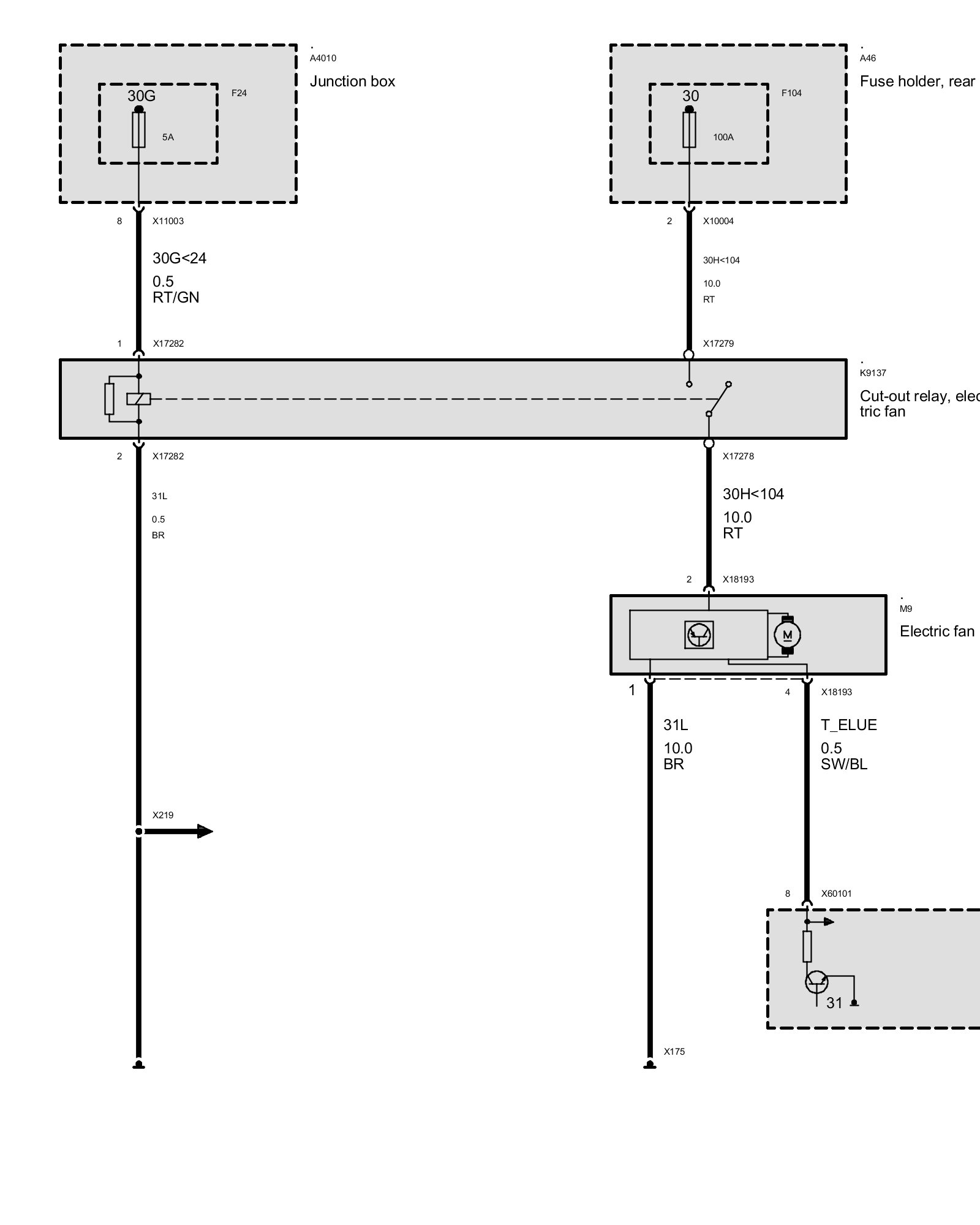

Up to 09/07

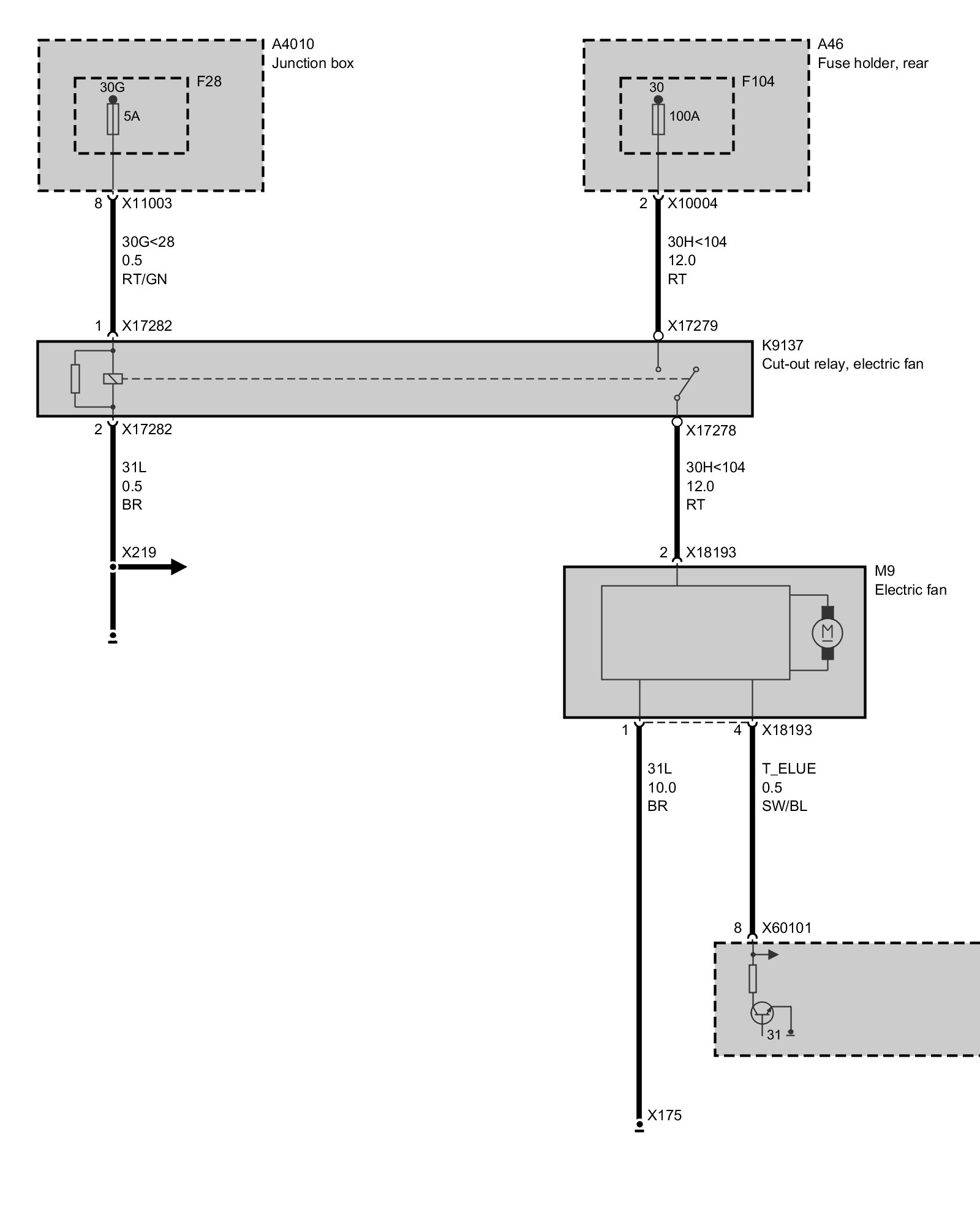

As of 09/07
