Fuse Block

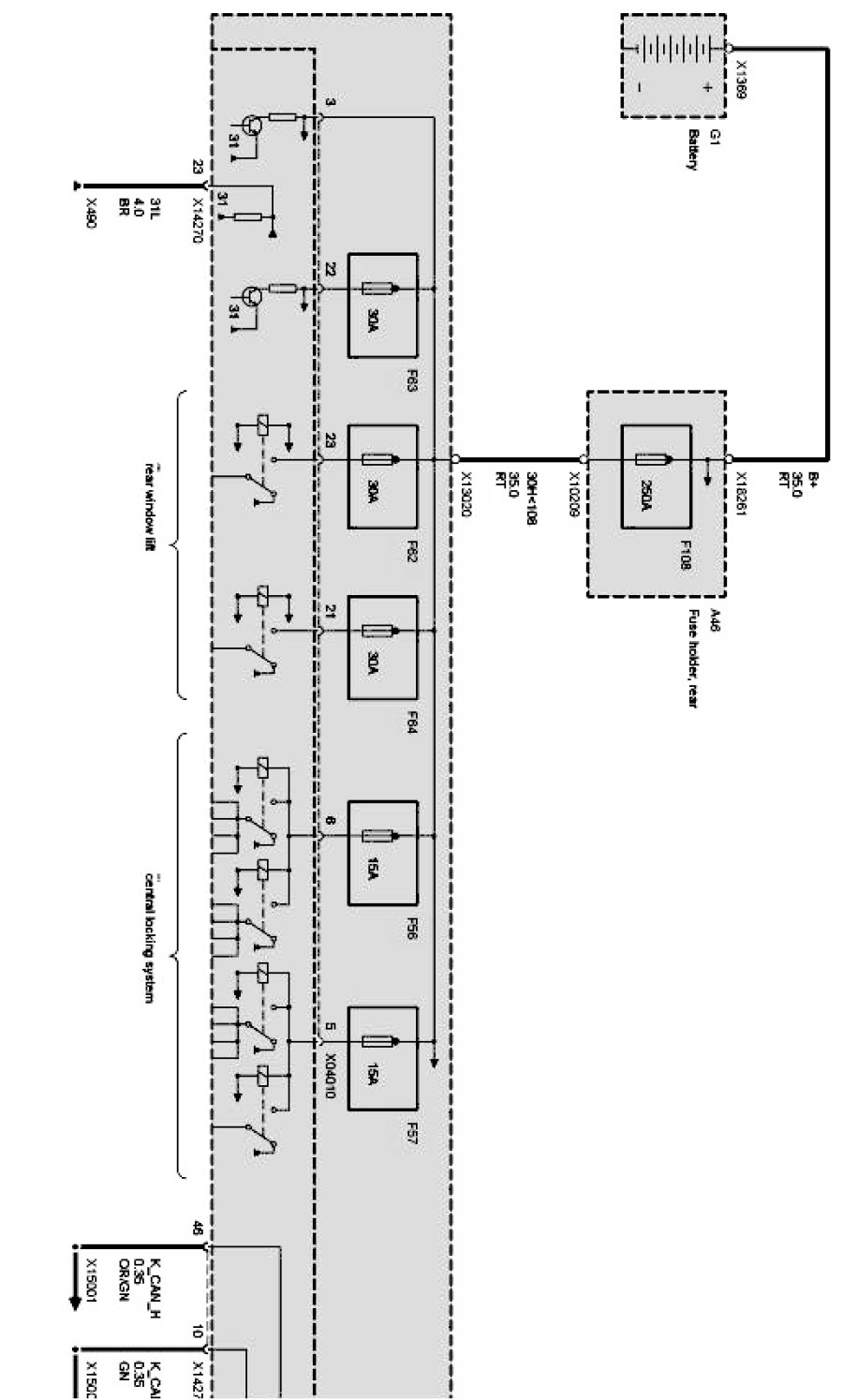

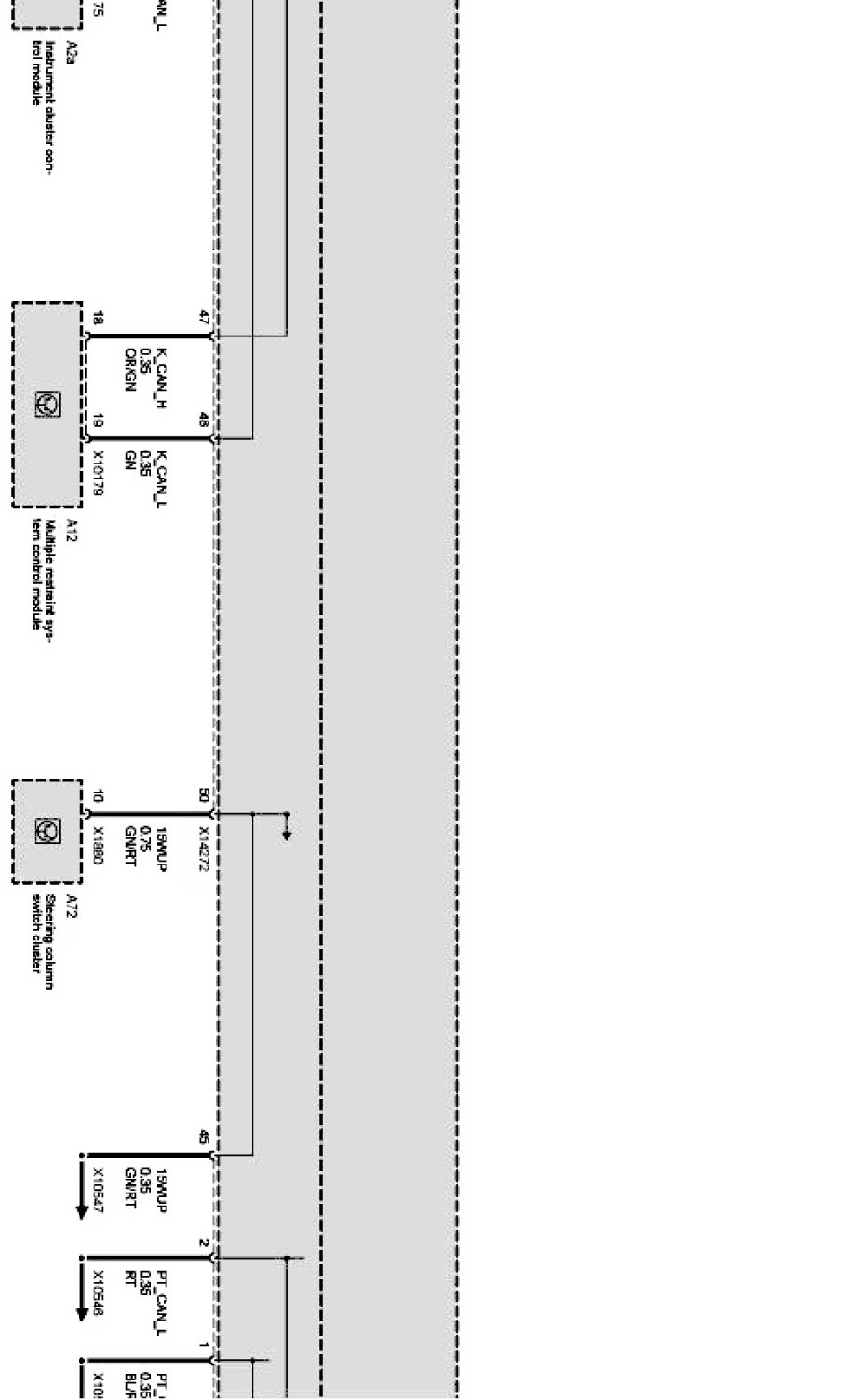

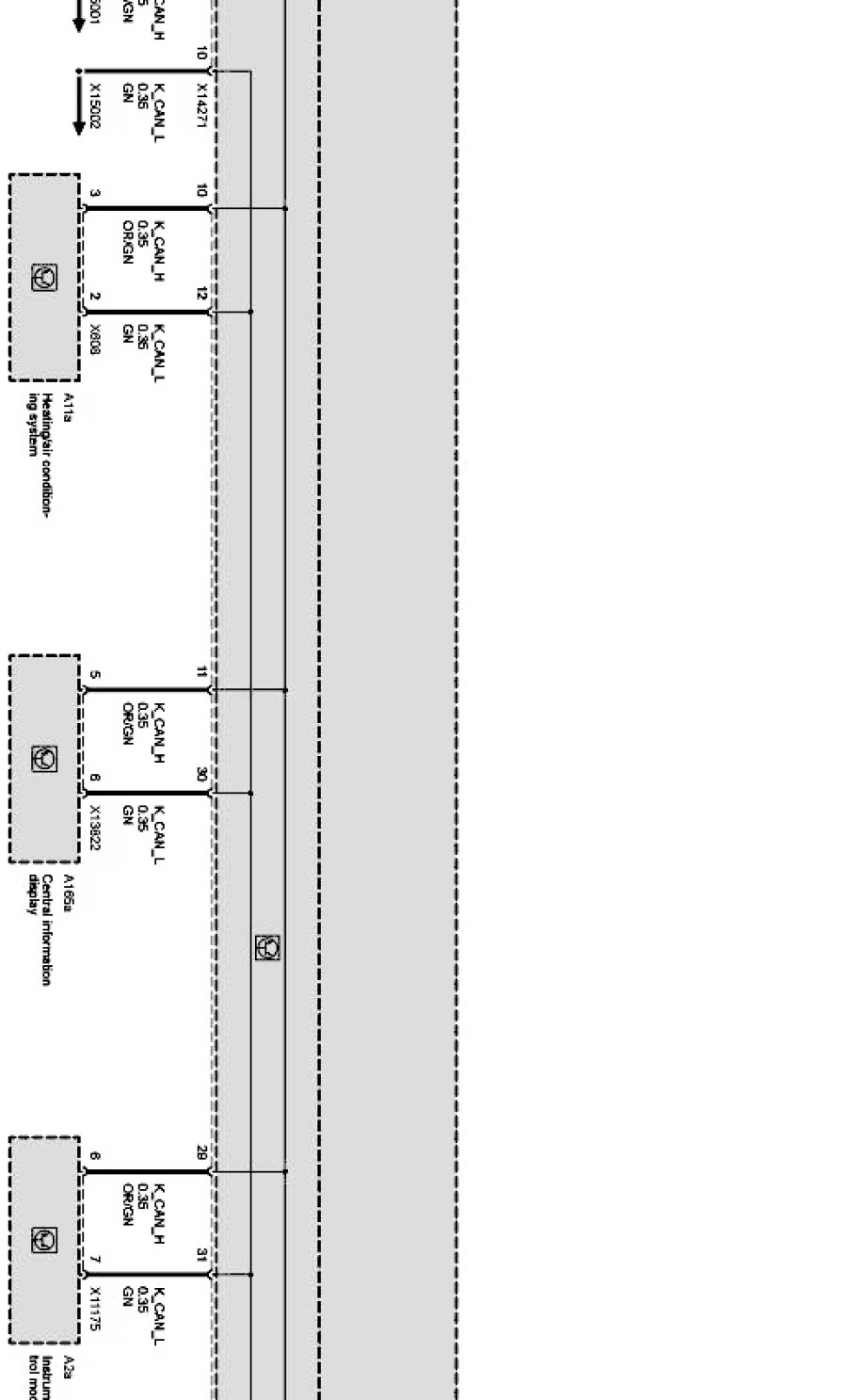

Power Supply JBE Junction Box, Electronics
Up to 03/07
As of 03/07 Up to 09/07
As of 09/07
