34 33 075 Removing and Installing/Replacing Vacuum Pump

34 33 075 - Removing and installing/replacing vacuum pump (S65)





Necessary preliminary tasks:
- Read and comply with General Information Service and Repair.
- Remove front left wheel 36 10 300 Removing or Installing Front or Rear Wheel





Important!
Before starting work, press the brake pedal to the floor several times to reduce the vacuum pressure in the brake booster. This makes it easier to detach the lines.

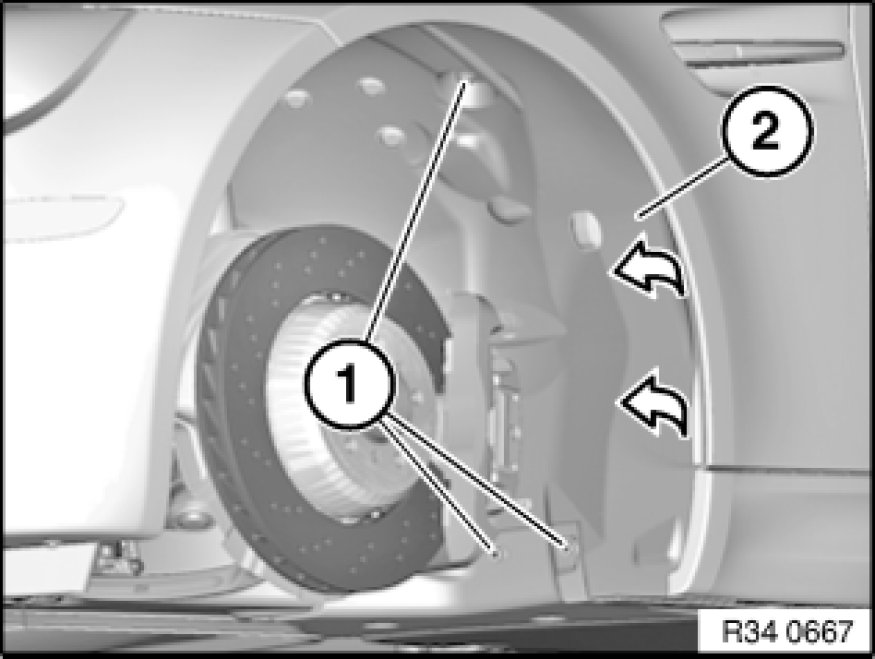

Release screws (1).
Press wheel arch cover (2) forwards slightly in direction of arrow.

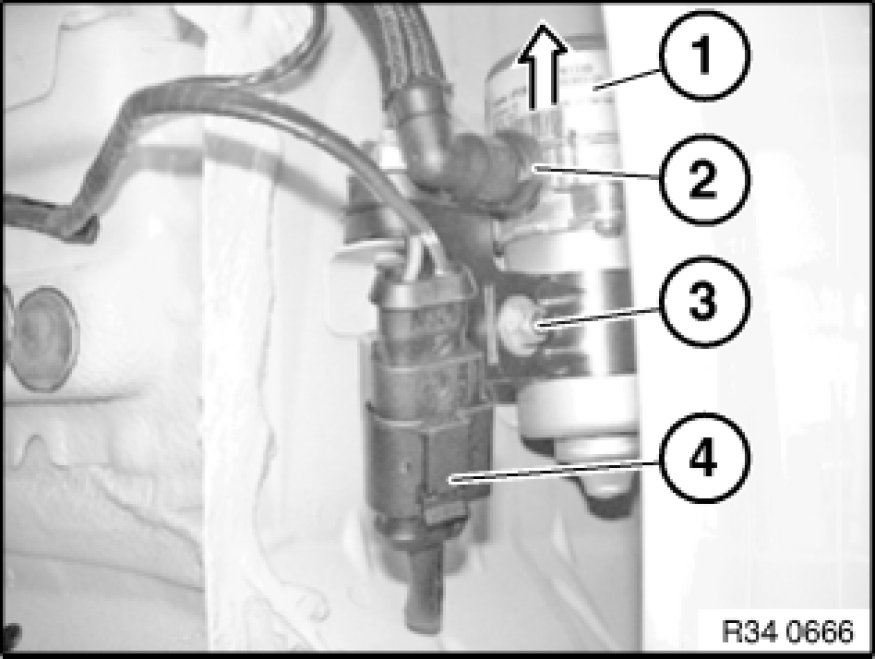

Unlock quick-release fastener (2) and detach vacuum hose.
Disconnect plug connection (4).
Release nut (3) and pull vacuum pump (1) upwards out of bracket.
