Removing and Installing/Replacing Left or Right Underbody Panelling

51 47 ... - Removing and installing/replacing left or right underbody panelling





Note:
Work is shown on the E92/M3 by way of example.
There may be differences in detail in the case of other vehicle models.

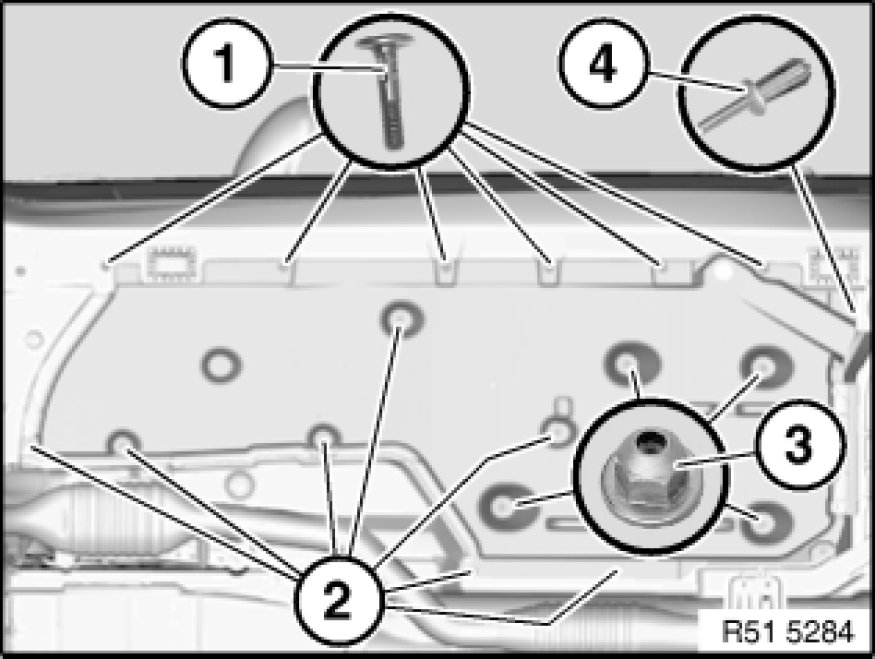

Release screws (1 and 2).
Release plastic nuts (3).
Release expander rivet (4) and remove underbody panelling.

Installation:
If necessary, replace faulty expander rivet (4).
Make sure underbody panelling is correctly seated.





Replacement:

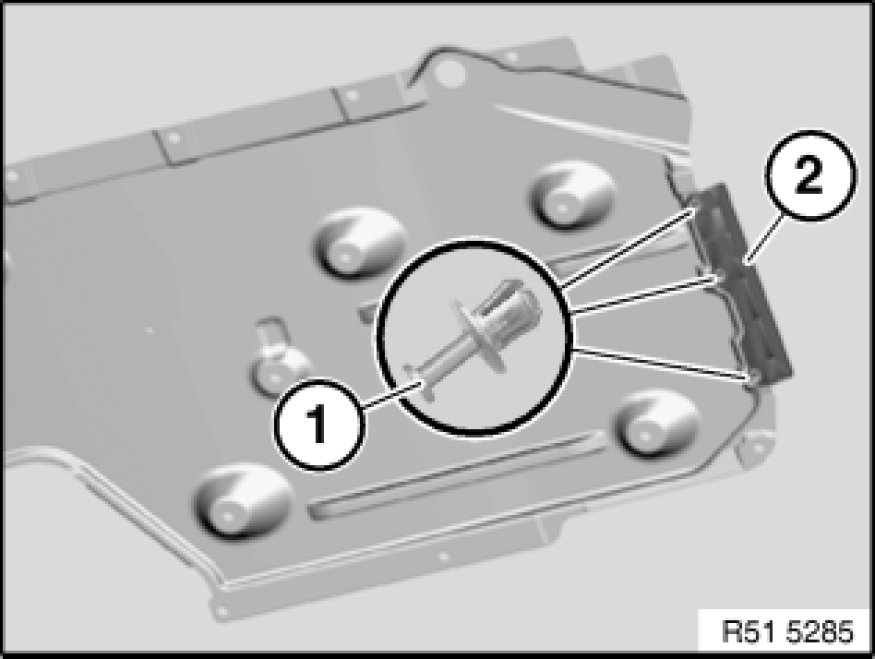

- Release expander rivets (1) and modify lip (2)
If necessary, replace faulty expander rivets (1)
