Removing and Installing/Replacing Front Rollover Protection System Strut

51 61 ... - Removing and installing/replacing front rollover protection system strut





Important!
Risk of damage!
Driving without the strut is not permitted!





Necessary preliminary tasks:
- Remove backrest Removing and Installing/Replacing Backrest
- Remove panel for passenger compartment partition

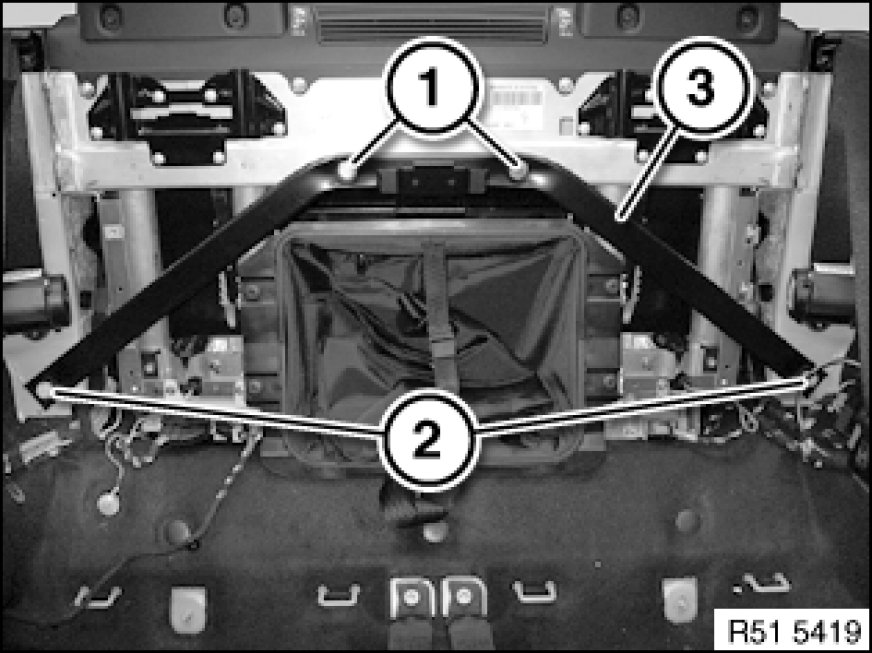

Release screws (1).
Tightening torque 51 71 27AZ Specifications.
Release screws (2) and remove strut (3).
Tightening torque 51 71 28AZ Specifications.

Installation Note:
Replace all screws.
