51 71 345 Removing and Installing/Replacing Left (or Right) Suspension Cross-Brace

51 71 345 - Removing and installing/replacing left (or right) suspension cross-brace





Special tools required:
- 00 9 120






Important!
Driving without the suspension cross-brace is not permitted. (Risk of damage to the body).

Suspension cross-brace screws must be tightened to torque and then tightened down with special tool 00 9 120 .





Necessary preliminary tasks:
- Remove lower section of microfilter housing

Note:
The operation is described on the left side; proceed in the same way for the right side.

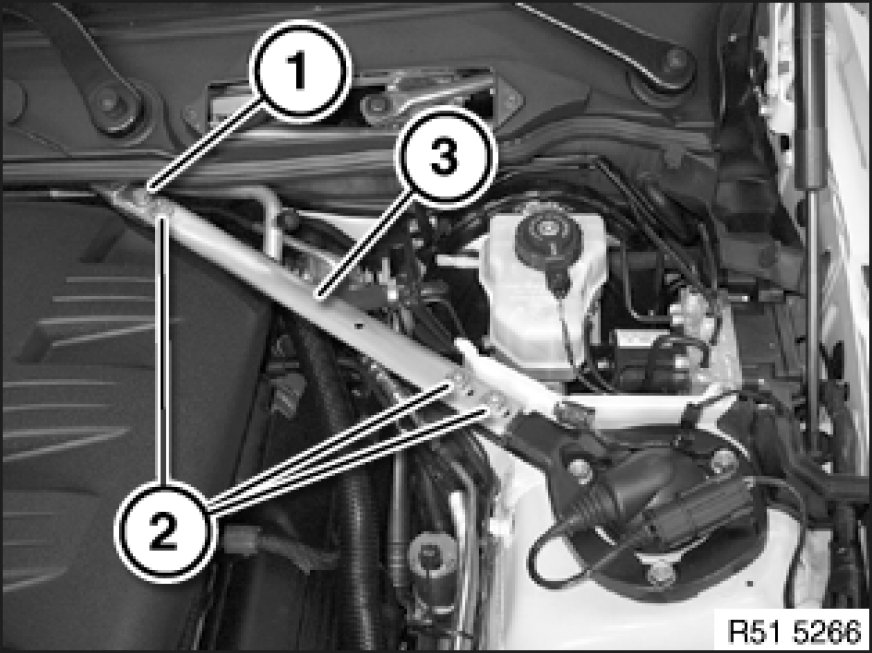

Release screw (1).

Release nuts (2) and remove suspension cross-brace (3).

Installation Note:
Make sure suspension cross-brace (3) is in correct installation position.

Replace screw (1) and nuts (2).

Tighten down screw (1) and nuts (2) to torque and then to angle of rotation using special tool 00 9 120 .

Tightening torque for screw (1) 51 71 18AZ Specifications.

Tightening torque for nuts (2) 51 71 19AZ Specifications.
