51 71 039 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Rear Section)

51 71 039 - Removing and installing/replacing front left or right wheel arch cover (rear section)





Necessary preliminary tasks:
- If necessary, remove front wheel 36 10 300 Removing or Installing Front or Rear Wheel

Note:
In event of further work, where possible, leave wheel arch cover on vehicle.

Wheel arch cover must not be cut.

In case of complete removal or replacement, release spring strut 31 31 003 Removing and Installing Complete Front Left or Right Spring Strut.





Note:

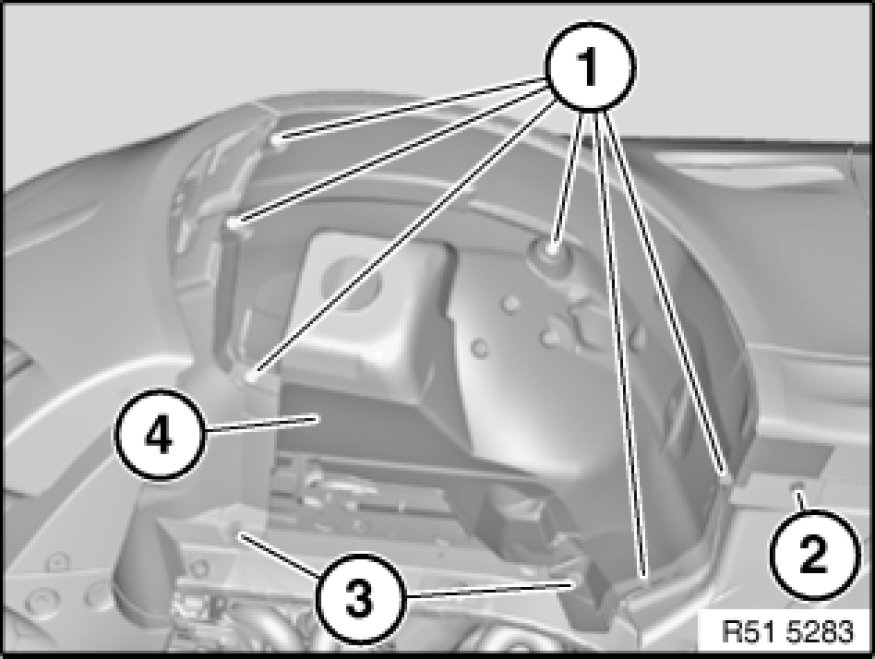

Front axle removed for purposes of clarity.

Release screws (1 and 2).
Release nuts (3) and loosen wheel arch cover (4) from installation position.

Installation:
Ensure wheel arch cover (4) is correctly seated.





Replacement:

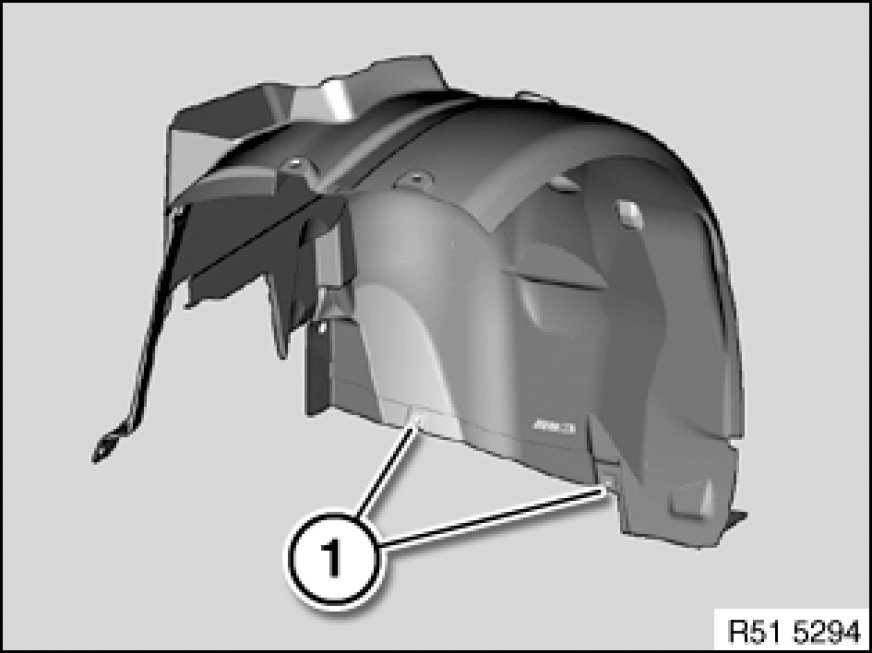

- Modify sheet nuts (1)

Installation:
If necessary, replace faulty metal nuts (1).
