51 11 157 Replacing Front Bumper Trim

51 11 157 - Replacing front bumper trim





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim
- Remove front grille centre section Service and Repair
- If necessary, remove number/license plate holder Service and Repair
- Remove middle grille
- If necessary, remove cover for headlight washer system 51 11 ... Removing and Installing/Replacing Cover For Headlight Washer System on Left
- Remove cover cap for tow lug
Version with Park Distance Control (PDC):
- Remove ultrasonic transducer

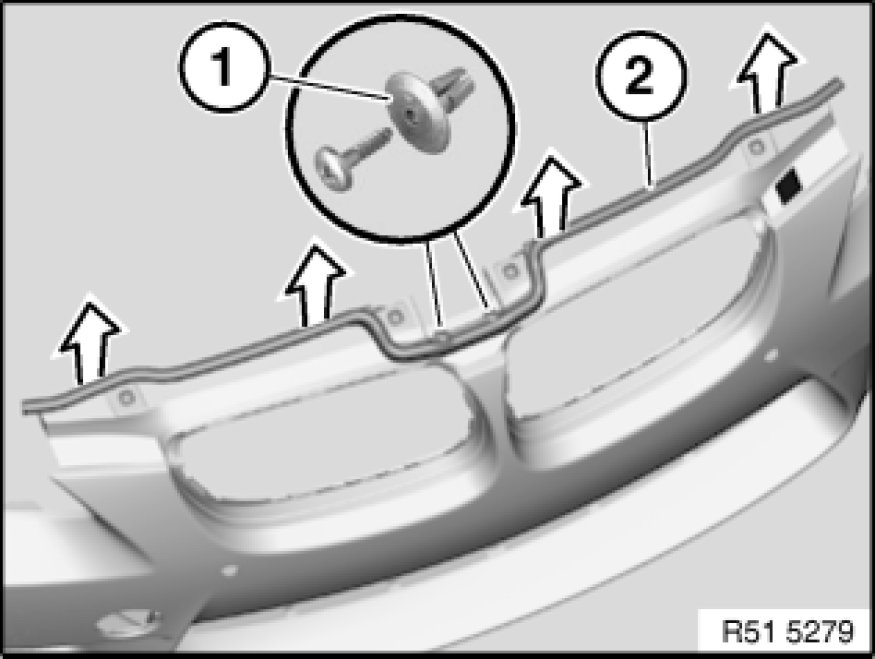

Release expander rivets (1) and pull off seal (2) upwards in direction of arrow.

Installation:
If necessary, replace faulty expander rivets (1).

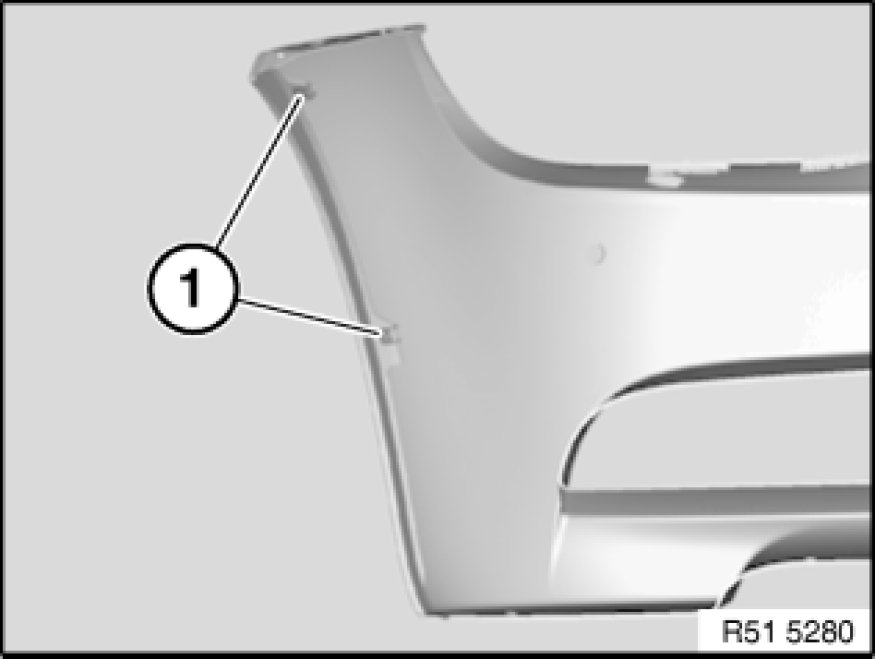

Remove sheet metal nuts (1) on left/right.

Installation:
If necessary, replace faulty metal nuts (1).





Press down catches (2) on insert (1) and remove insert (1) in direction of arrow.
