51 11 ... Removing and Installing/Replacing Cover For Headlight Washer System on Left




51 11 ... - Removing and installing/replacing cover for headlight washer unit on left





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim

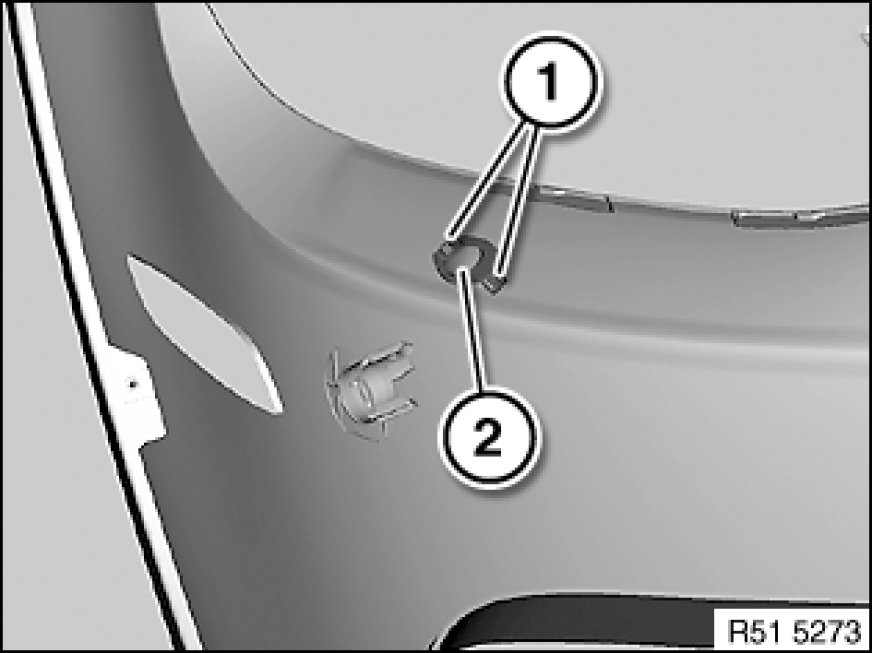

Release catches (1) and remove cover (2).

Installation:
Catches (1) must not be damaged
