65 11 ... Removing and Installing/Replacing Satellite Tuner (US Version Only)

65 11 ... Removing And Installing/replacing Satellite Tuner (US Version Only)







Necessary preliminary work:
- Remove radio

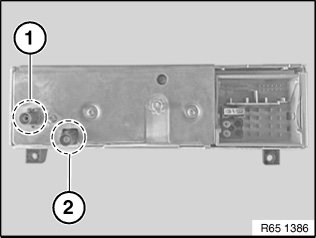

NOTE: Satellite tuner can be recognized by the violet aerial connection (1) which is also located next to the black aerial connection (2).

Additional work is required when the satellite tuner is replaced.







Replacement:

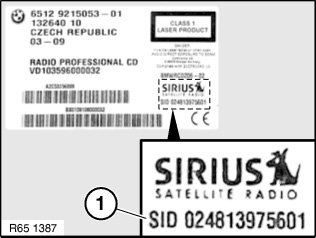

Record SID number (1) of the removed device.

NOTE: The SID number (1) can be found on the label of the housing.

Record SID number (1) of the new device.







Replacement:
Carry out vehicle programming/encoding.







Replacement:
Please contact Sirius. Use the SID number to cancel current device and register new one.
