61 31 241 Removing and Installing/Replacing Right Hood/Bonnet Contact Switch

61 31 241 - Removing and installing/replacing right hood/bonnet contact switch (M3)





Special tools required:

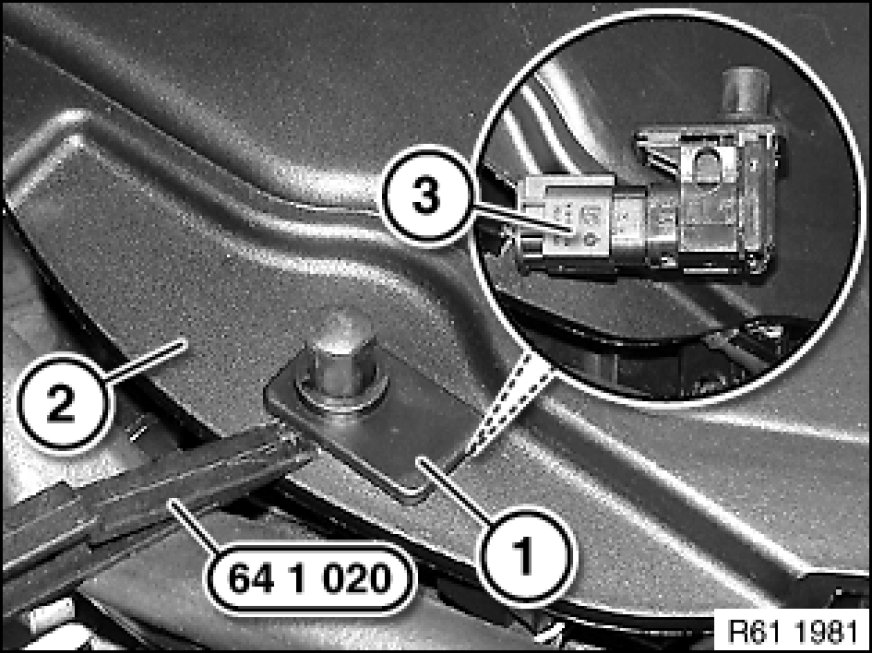

Lever bonnet/hood contact switch (1) with special tool 64 1 020 out of microfilter housing upper section (2).

Disconnect plug connection (3) and remove bonnet/hood contact switch (1).

Installation:
Make sure bonnet/hood contact switch (1) is correctly seated in microfilter housing upper section (2).
