65 20 250 Removing and Installing/Replacing Rear Telephone Aerial

65 20 250 Removing And Installing/Replacing Rear Telephone Aerial







Necessary preliminary tasks:
- Remove rear bumper trim
- Remove left luggage compartment wheel arch trim

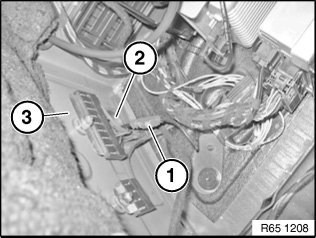

Unfasten plug connection (1) and disconnect.
Pull telephone aerial lead out of cable penetration (2) in tail panel (3).

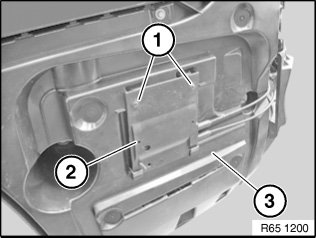

Release screws (1).
Remove telephone aerial (2) from bumper guide (3).
