Front Door Window Motor: Service and Repair

67 62 000 - Removing and installing or replacing flat motor for front left or right power window unit





Necessary preliminary tasks:
- Remove sound insulation in front door Removing And Installing Sound Insulation On Left Or Right Front Door





Note:
Position power window unit so that screws of flat motor are freely accessible





- Remove power window unit

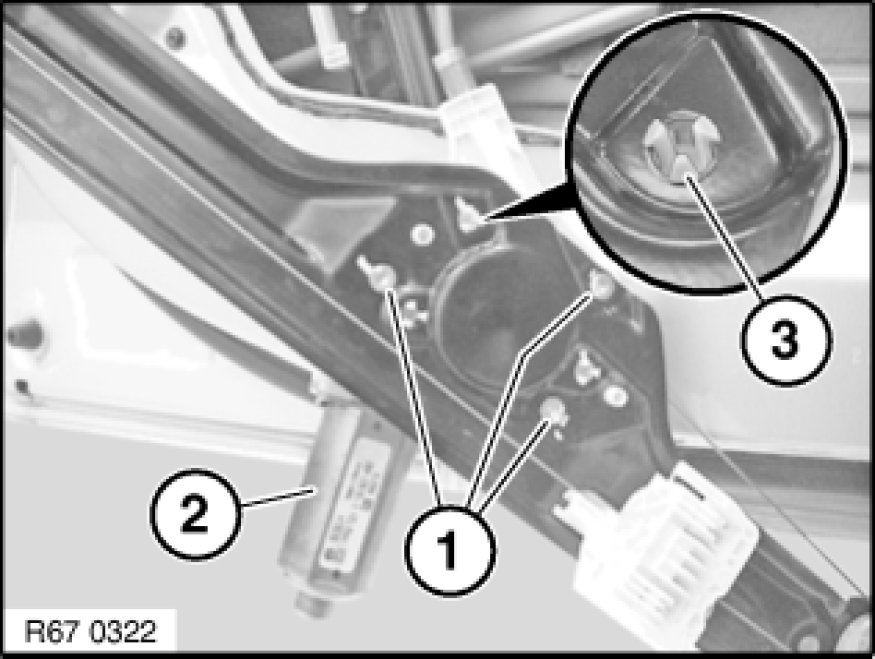

Release screws (1) and detach flat motor (2) from power window unit.

Installation:
Retaining pins (3) must not be released!





Important!
To ensure tension-free installation of flat motor, observe the specified screwing sequence without fail.

Tighten first screw (1), then screw (2) and finally screw (3).

Tightening torque 67 62 1AZ 67 62 Motors, Power Window Regulator.





After installation:
An initialization must be carried out in order to activate anti-trapping protection.
Read and comply with notes Testing and Inspection on initializing power windows.
