37 14 515 Replacing Front Left or Right Ride-Height Sensor

37 14 515 Replacing front left or right ride-height sensor





Important!
Observe safety instructions for raising the vehicle





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection).

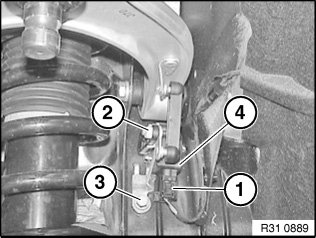

Unfasten plug connection (1) and disconnect.

Release nut (2) and disconnect jointed rod.

Tightening torque 37 14 4AZ.

Release screw (3) and remove ride-height sensor (4).

Tightening torque 37 14 2AZ.





Replacement:

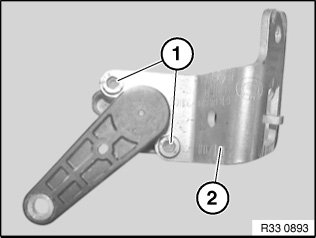

Release screws (1). Remove bracket (2) from ride-height sensor.

Tightening torque 37 14 3AZ.





After installation:
^ Carry out ride-height calibration
^ Check headlight adjustment, correct if necessary
