Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Sensors and Switches - Starting and Charging
>>
Start / Stop Switch
>>
Service and Repair
Start / Stop Switch: Service and Repair
61 31 014 Removing And Installing/replacing Start/Stop Switch
Necessary preliminary work:
-
Remove decorative strip on dashboard in middle

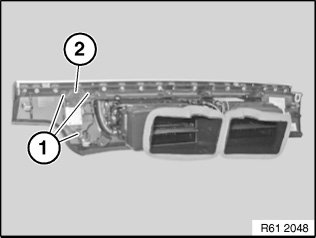

Release screws (1) and remove Start/Stop switch (2).
