Special Tools for Wiring Harness Repairs
61 13 ... - Special tools for wiring harness repairs
Special tools required:
- 61 0 200 61 0 200 Crimping Set (Basic Tool)
- 61 0 210
- 61 0 220
- 61 0 230
- 61 0 240
- 61 0 300
- 61 0 400
- 61 1 100
- 61 4 320

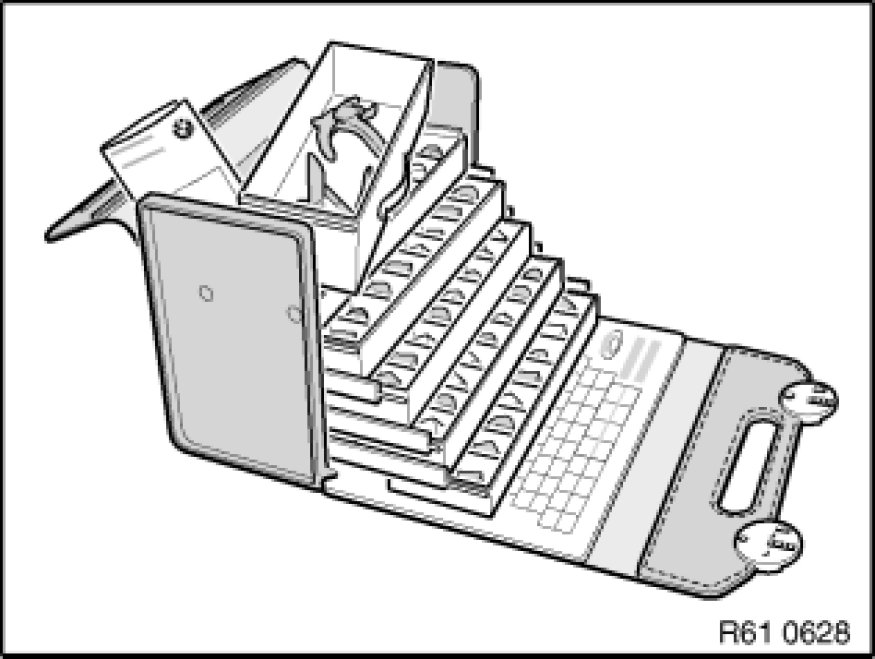

Repair range, vehicle electrical system:
Single parts for wiring harness repairs*
* Sourcing reference: BMW Parts Service
Note:
- Refer to Service Information:
SI 2 04 07 341
Release and press-out tool:
- Special tool 61 0 300
- Special tool 61 0 400 (MINI N12/N14)
- Special tool 61 1 100 (engine)
Handling:
- Instructions for opening contacts and locks 61 13 ... Instructions For Opening Contacts and Locks of Different Plug Contact Systems of different plug contact systems
Cutting to length and stripping insulation from cables:

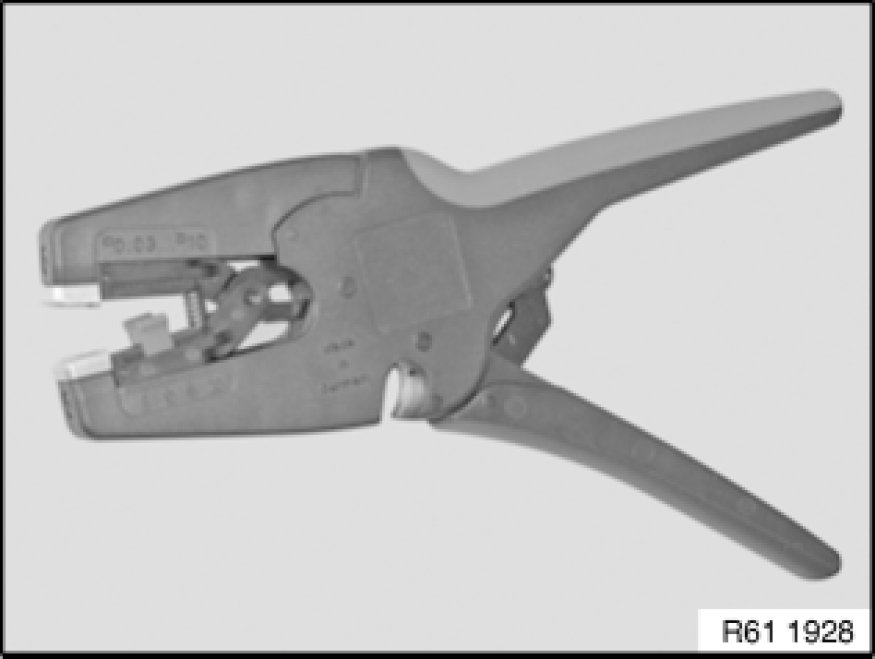

Wire stripper MultiStrip10*
*Sourcing reference BMW Workshop Equipment Catalogue
Handling:
- Cutting cables to length and strip insulation 61 13 ... Cutting to Length and Stripping Insulation From Cables
Crimping stop parts (small contacts) and butt connectors:
- Special tool 61 4 320
1. Tool without crimping head
2. Crimping head (stripping insulation and cutting fibre-optic cables to length) 61 13 ... Cutting Off, Stripping Insulation and Cutting Optical Fibres to Length
3. Crimping head (crimping fibre-optic cable contacts) 61 13 ... Crimping Optical Fibers
4. Crimping head (crimping MQS contacts) 61 13 ... Crimping Micro Quadlock System Contacts (MQS)
5. Crimping head (crimping MPQ contacts) 61 13 ... Crimping Micro Power Quadlock Contacts (MPQ)
6. Replacement blade (face-cutting fibre-optic cables)
7. Replacement blade with tool (insulation stripping unit)
8. Universal crimping head (SI 2 04 06 293)
Crimping stop parts (large contacts) and butt connectors:
- Special tool 61 0 200 61 0 200 Crimping Set (Basic Tool) (crimping set)
- Special tool 61 0 210 (matrix set LSK 8)
- Special tool 61 0 220 (matrix set SLK 2.8)
- Special tool 61 0 230 (matrix set MAK 8 / DFK4)
- Special tool 61 0 240 (butt connector 4.0 - 6.0 mm�)
Handling:
- Refer to Service Information:
SI 2 02 05 194
SI 2 07 05 233
