Home >> BMW >> 2011 >> Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Cover

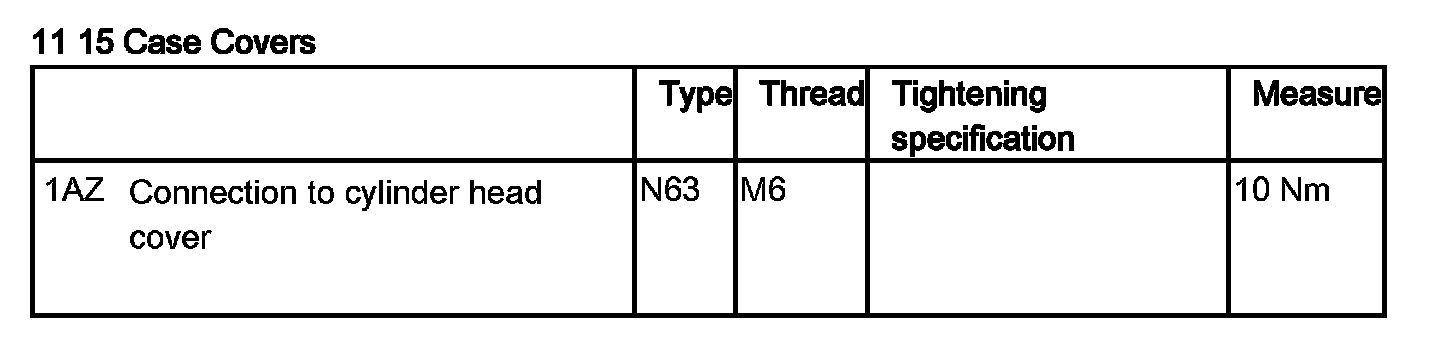

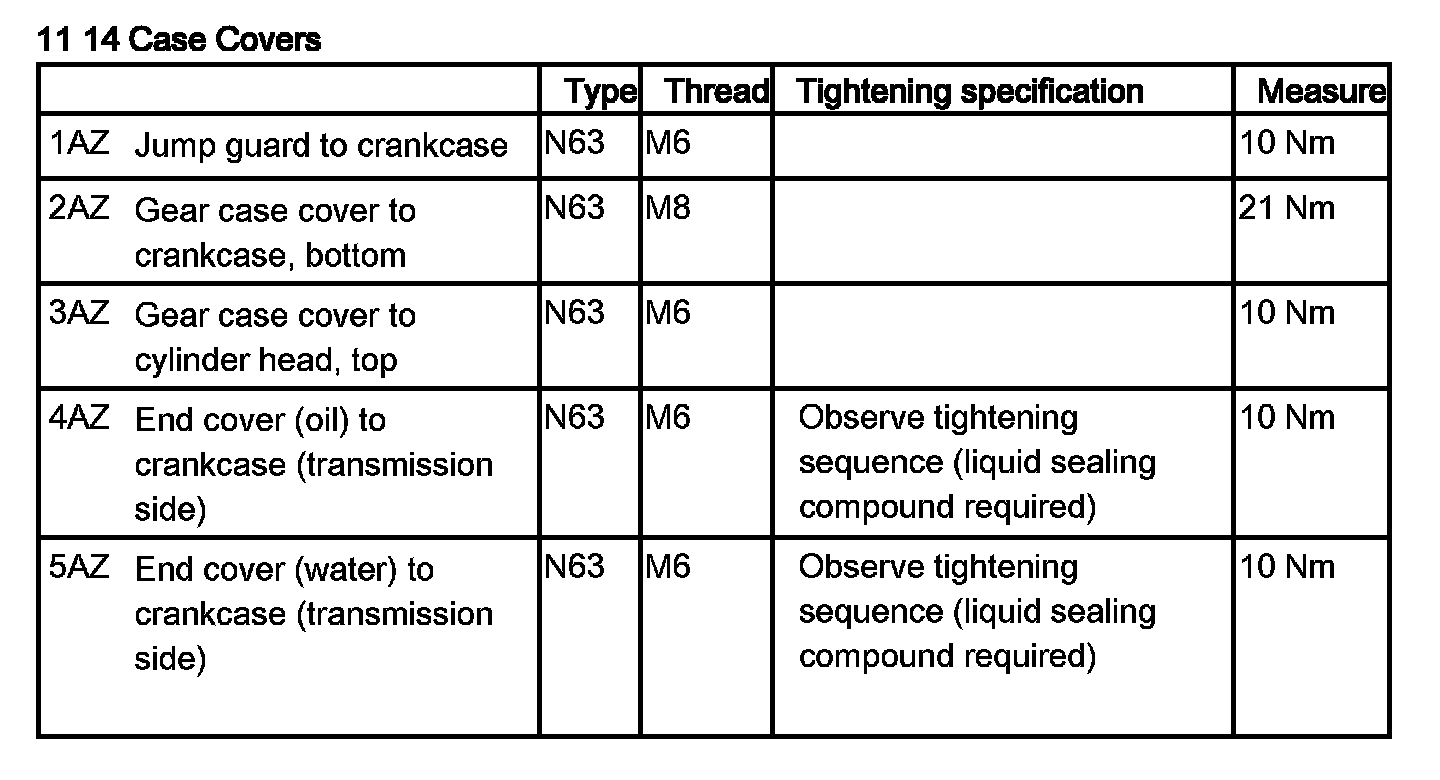

Timing Cover
