Home >> BMW >> 2011 >> Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> 11 11 Engine Block

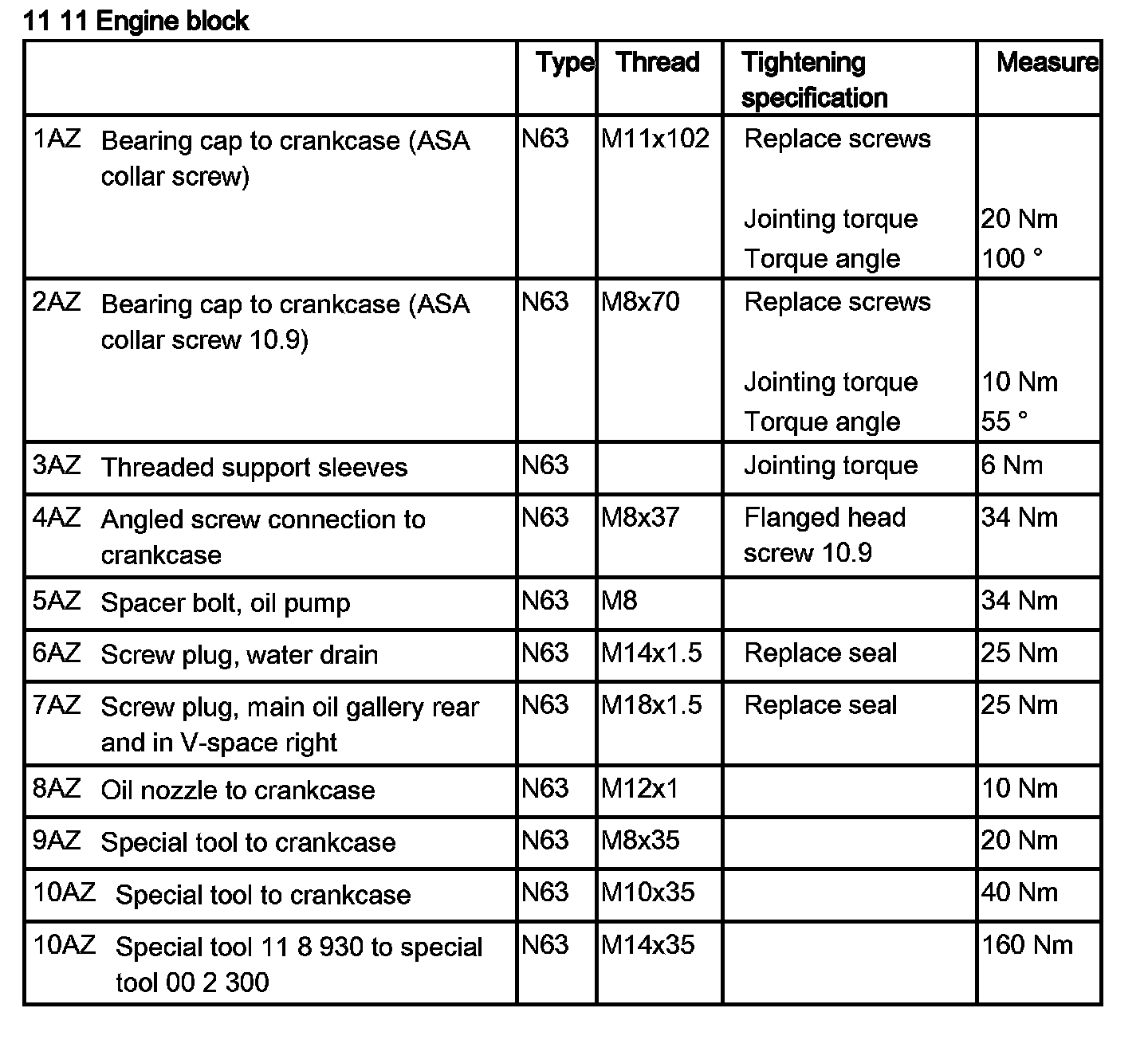

11 11 Engine Block

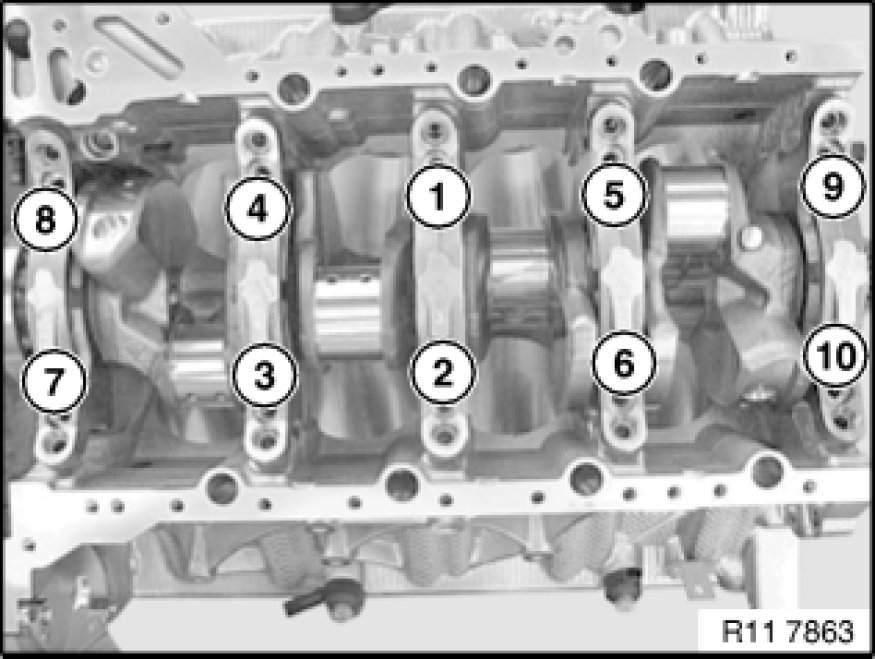

M8 collar bolts sequence.

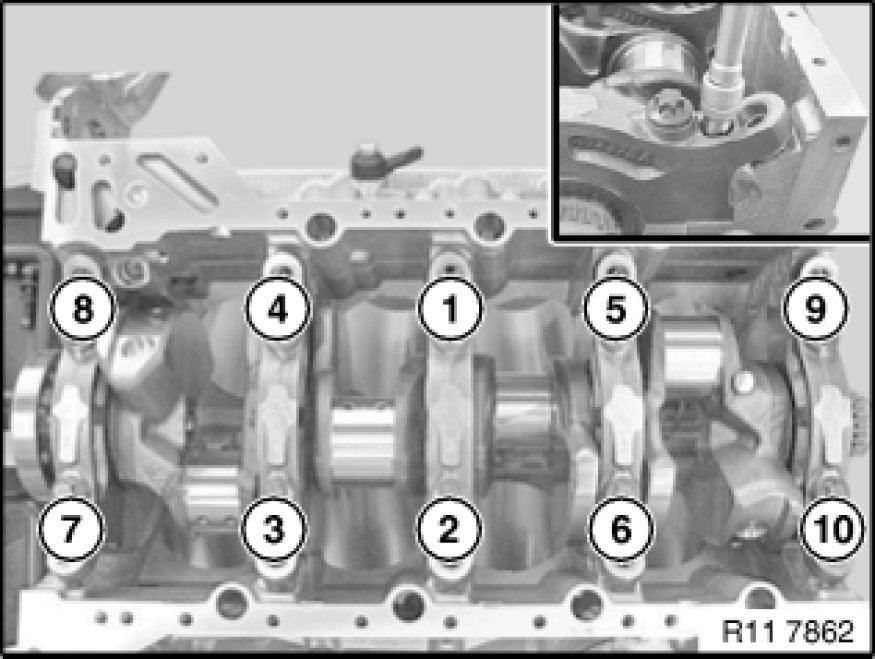

M8 collar bolts sequence.
