Suspension Fluid Level Switch: Service and Repair

32 41 ... - Replacing level switch for Dynamic Drive fluid reservoir





Necessary preliminary tasks:
- Remove intake duct for air filter housing

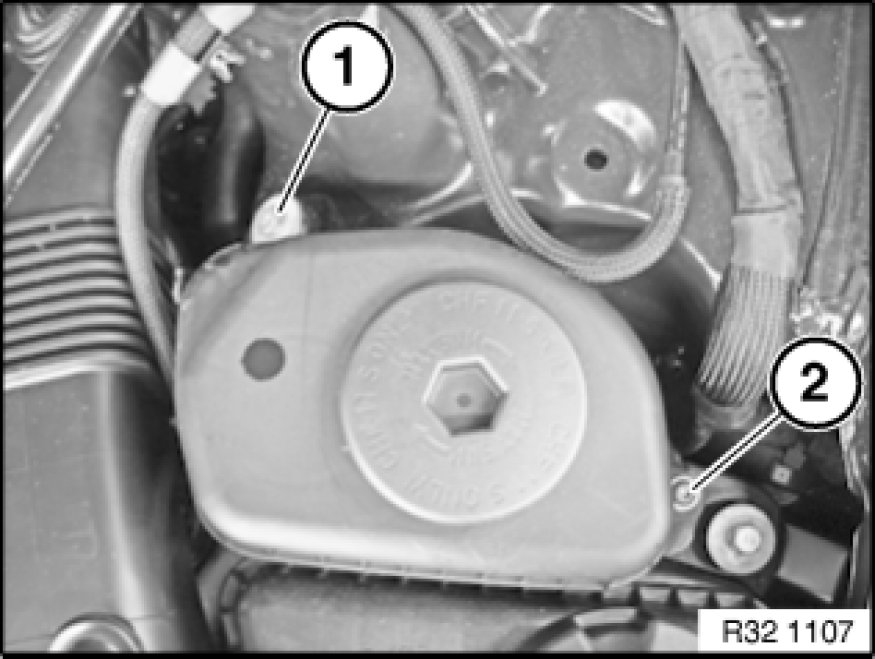

Release screws (1) and (2).
Remove shims.
Tightening torque 32 41 1AZ/ 2AZ 32 41 Pump and Oil Supply
Remove fluid reservoir by pulling upwards.





Note:
Raise and/or turn fluid reservoir in order to gain better access to plug connection.

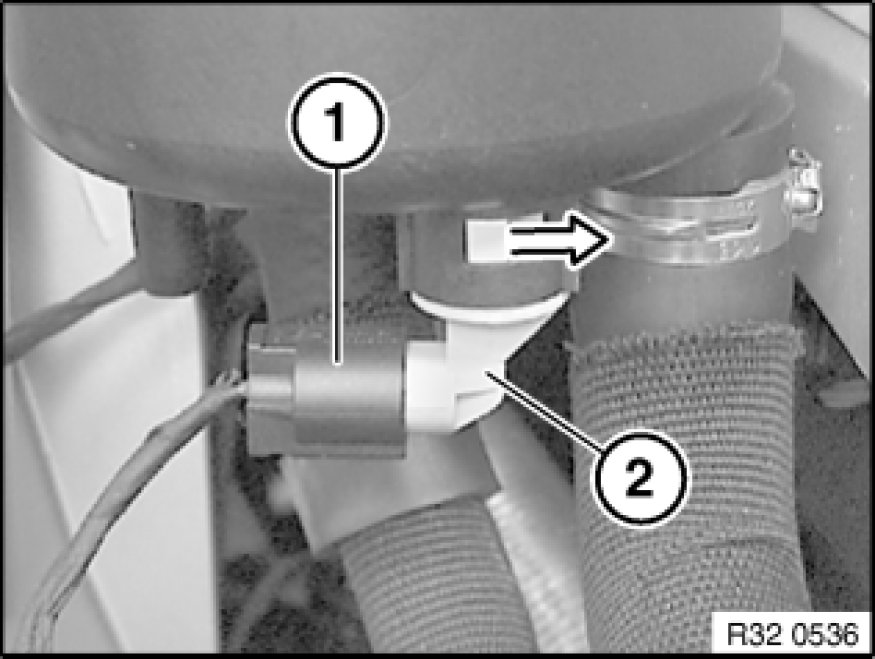

Disconnect plug connection (1).
Turn level switch (2) through approx. 45° and remove towards bottom.
