34 52 525 Replacing One Front Pulse Sensor

34 52 525 Replacing one front pulse sensor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).





Necessary preliminary tasks:
^ Remove front wheel
^ Read and comply with General Information.

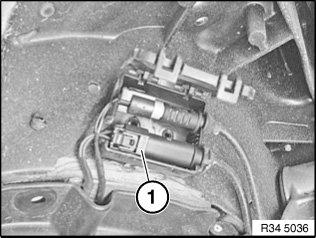

Open housing cover.

Disconnect plug connection (1).

Installation:
Ensure proper locking of plug connector and proper seating of rubber grommets.

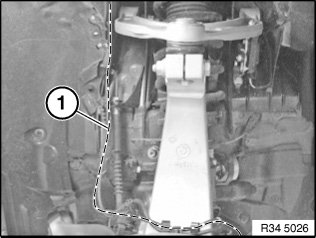

Disengage line (1) along marked lines from holders.

Installation:
Ensure proper locking of the holders and proper seating of the line in the holders.

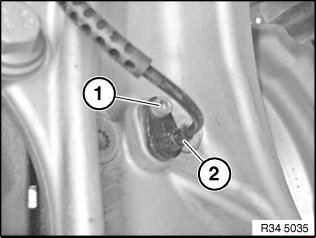

Release screw (1) and withdraw pulse generator (2) from bore.

Installation:
Tightening torque 31 51 3AZ.

Clean bore for pulse generator and lubricate with Staburags NBU 12/K lubricating grease.

Important!
Prior to installation, check sensor head for damage and replace if necessary.
