61 31 084 Removing and Installing/Replacing Switch For Automatic Rear Lid Actuation



61 31 084 Removing And Installing/replacing Switch For Automatic Rear Lid Actuation

Special tools required:

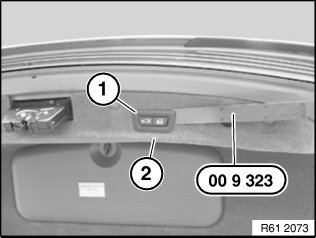

Lever switch for automatic rear lid actuation (1), with special tool 00 9 323, sideways out of tailgate trim (2).
Disconnect associated plug connection and remove switch for automatic rear lid actuation (1).
