61 31 204 Replacing Operating Unit For Seat Adjustment

61 31 204 Replacing Operating Unit For Seat Adjustment







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove cover from front seat

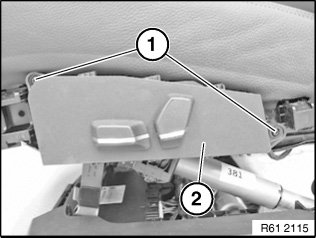

Release screws (1).
Raise operating unit for seat adjustment (2).

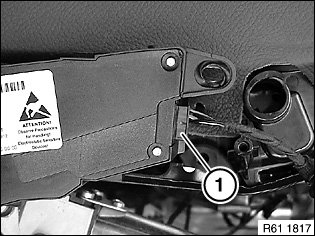

Disconnect plug connection (1) and remove operating unit for seat adjustment.
