36 11 105 Removing and Installing RDC (Tire Pressure Control) Control Unit

36 11 105 Removing and installing RDC (Tire Pressure Control) control unit





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).





Necessary preliminary tasks:
^ Remove right luggage compartment wheel arch panel.

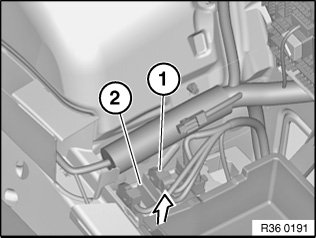

Disconnect plug connection (1).

Pull out RDC control unit (2) upwards in direction of arrow.





Replacement:
- Carry out programming/encoding
