Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Function Diagrams
>>

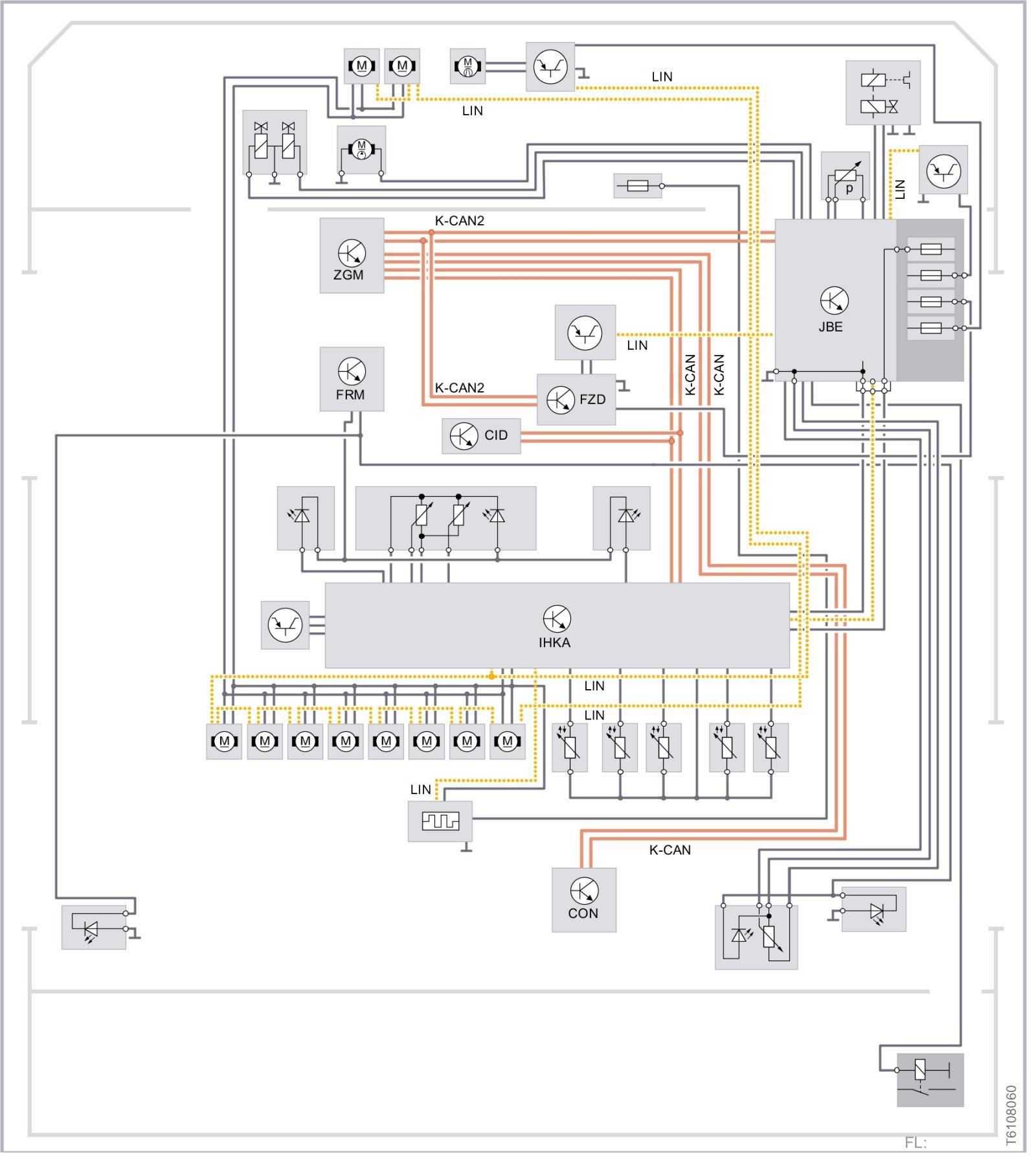

Integrated Automatic Climate Control, Basic Version
Integrated Automatic Climate Control, Basic Version
Integrated Automatic Climate Control, Basic Version
