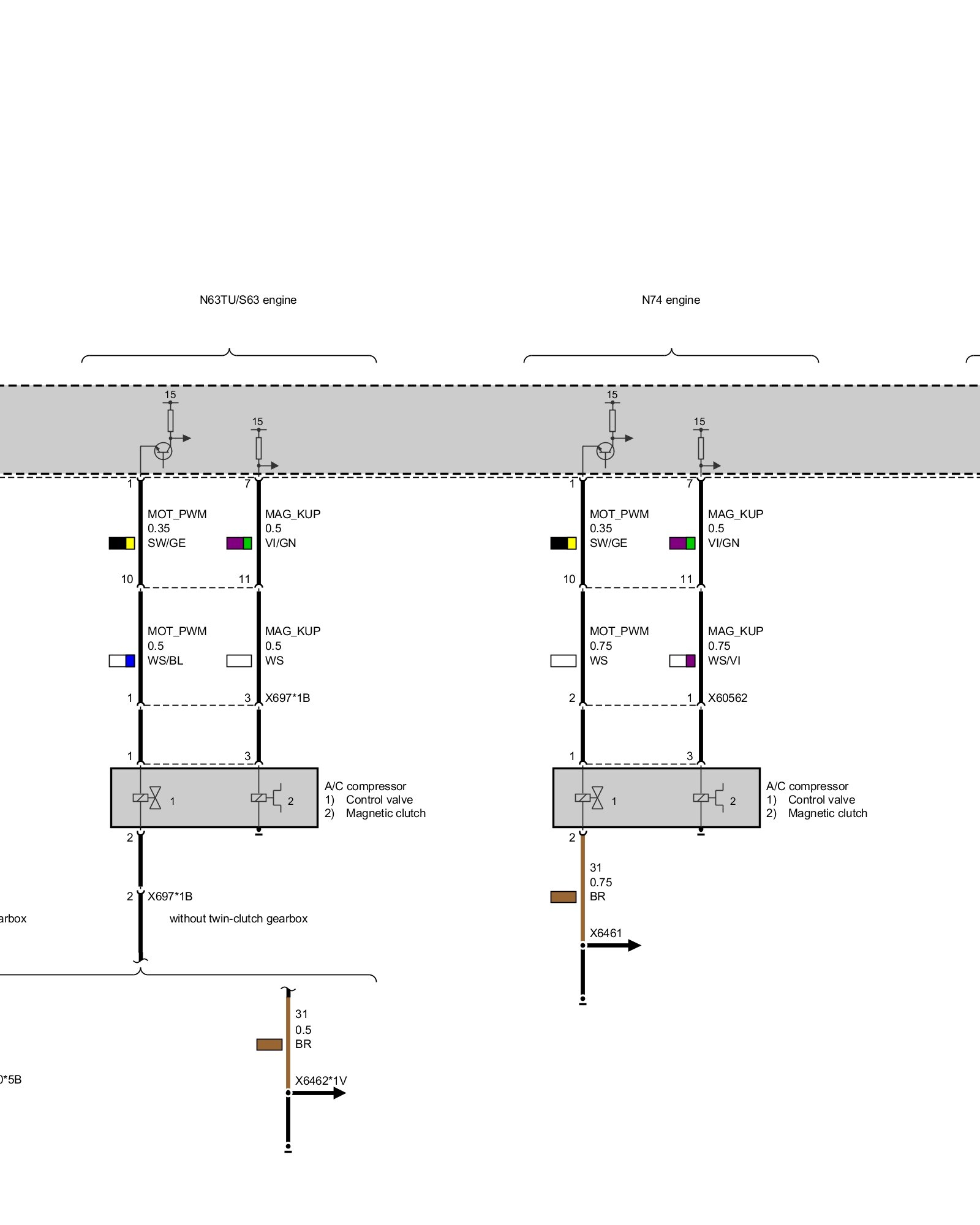

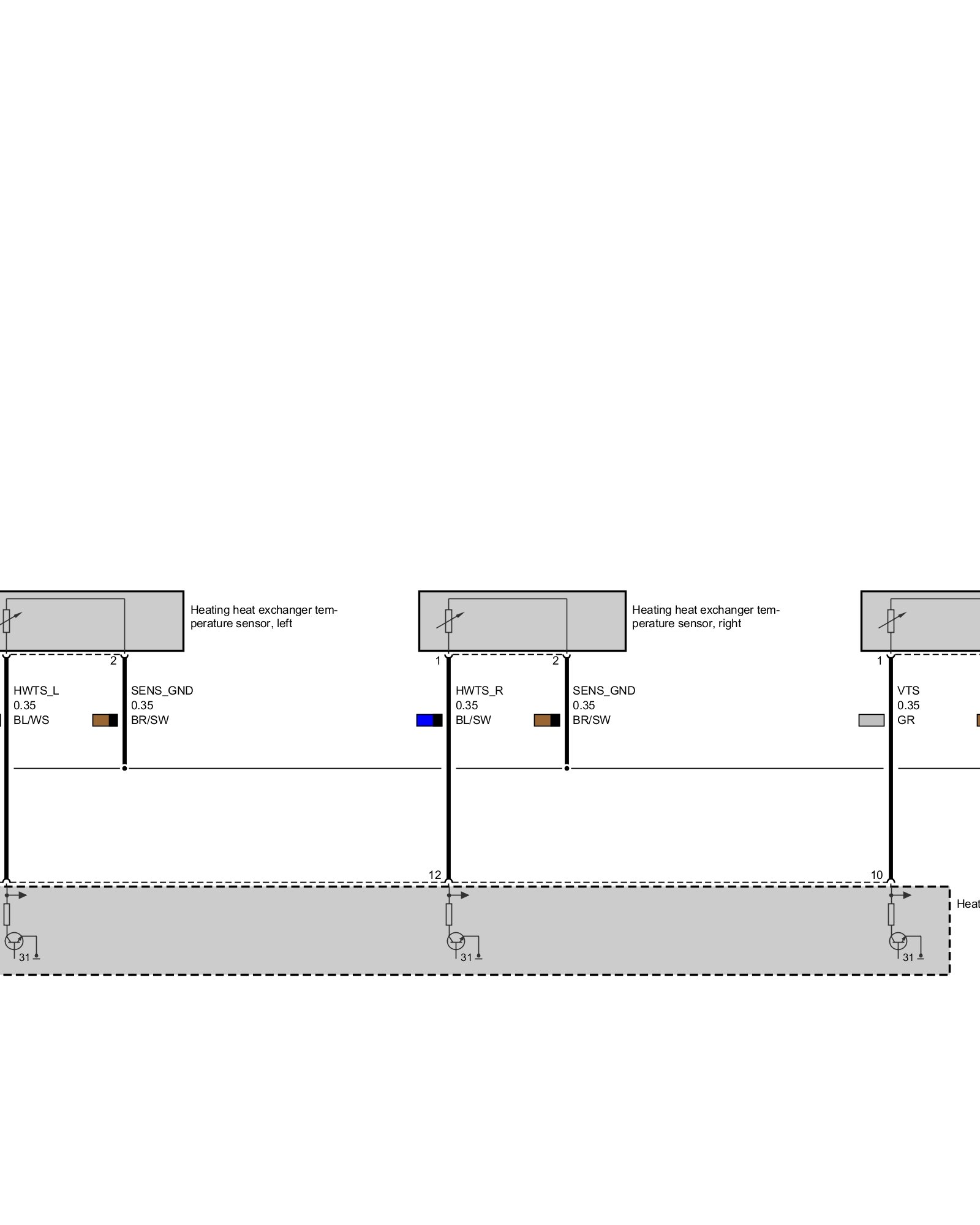

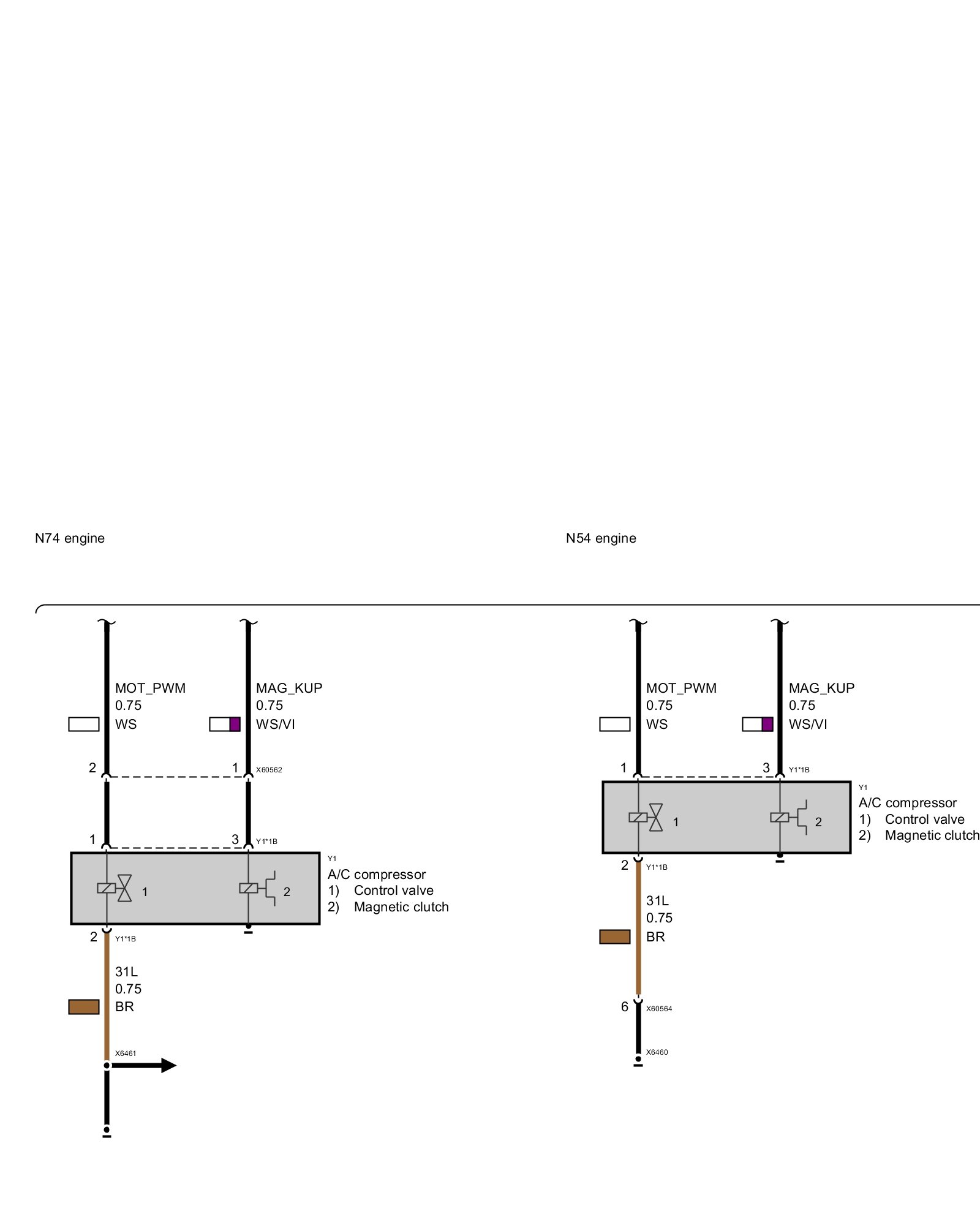

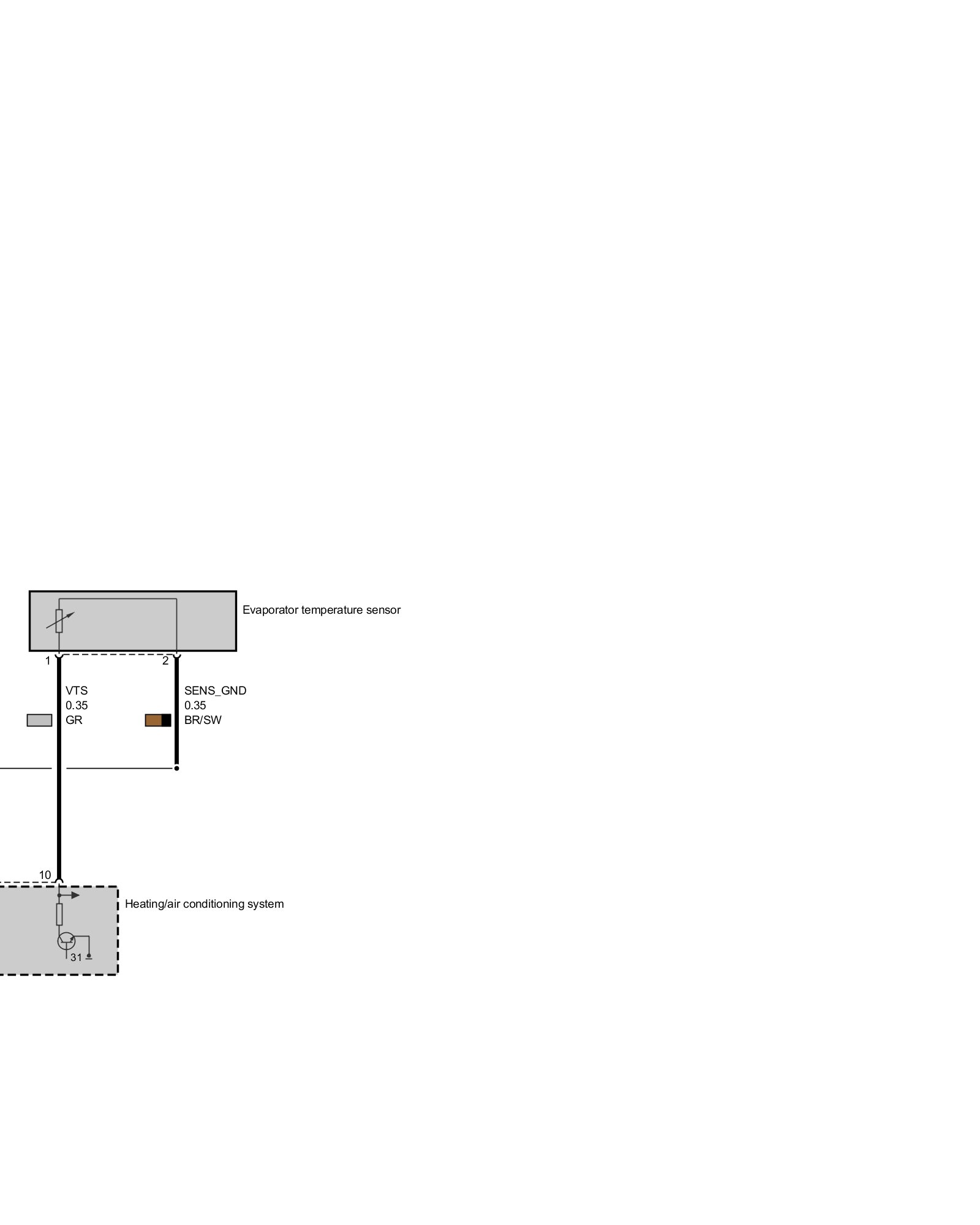

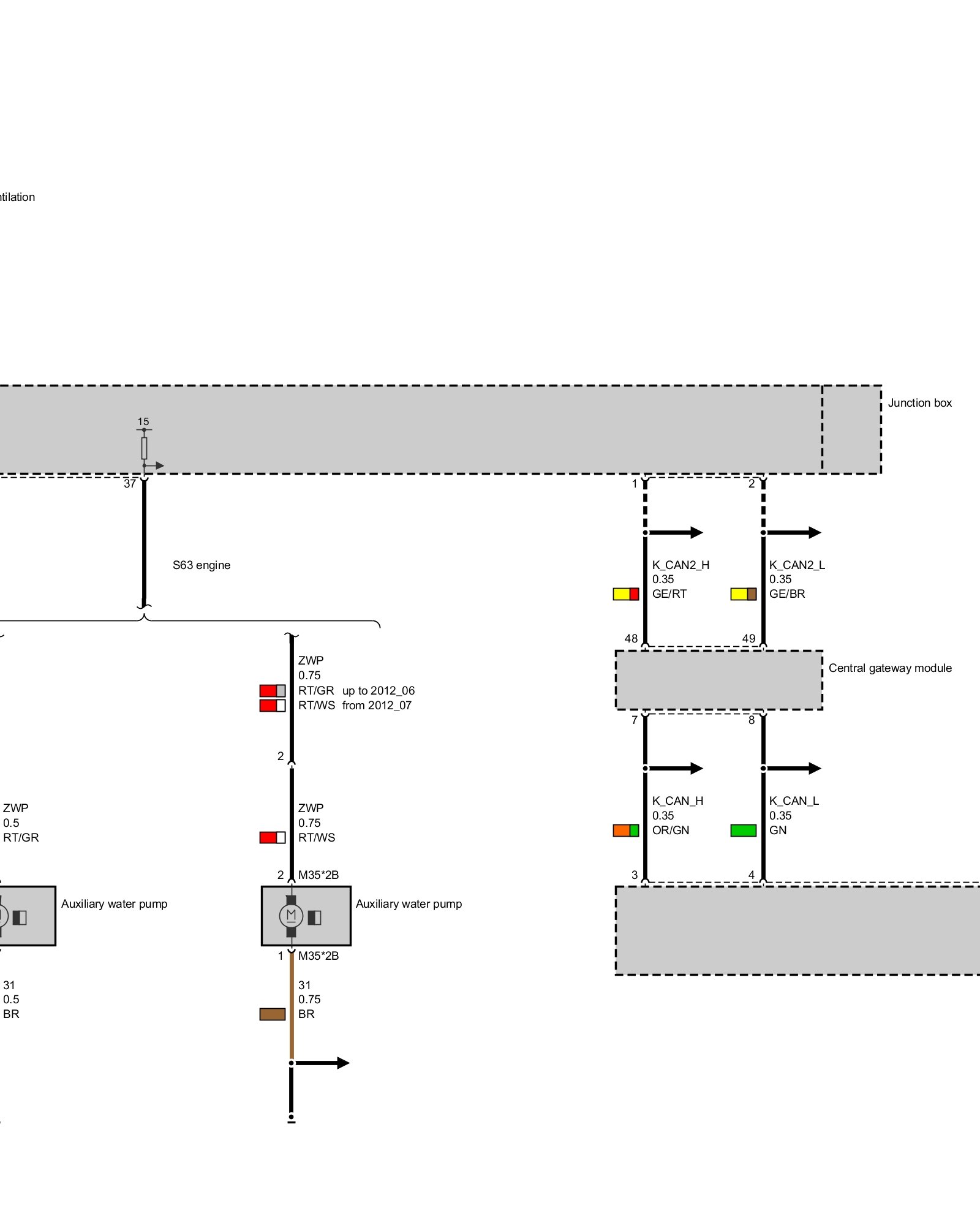

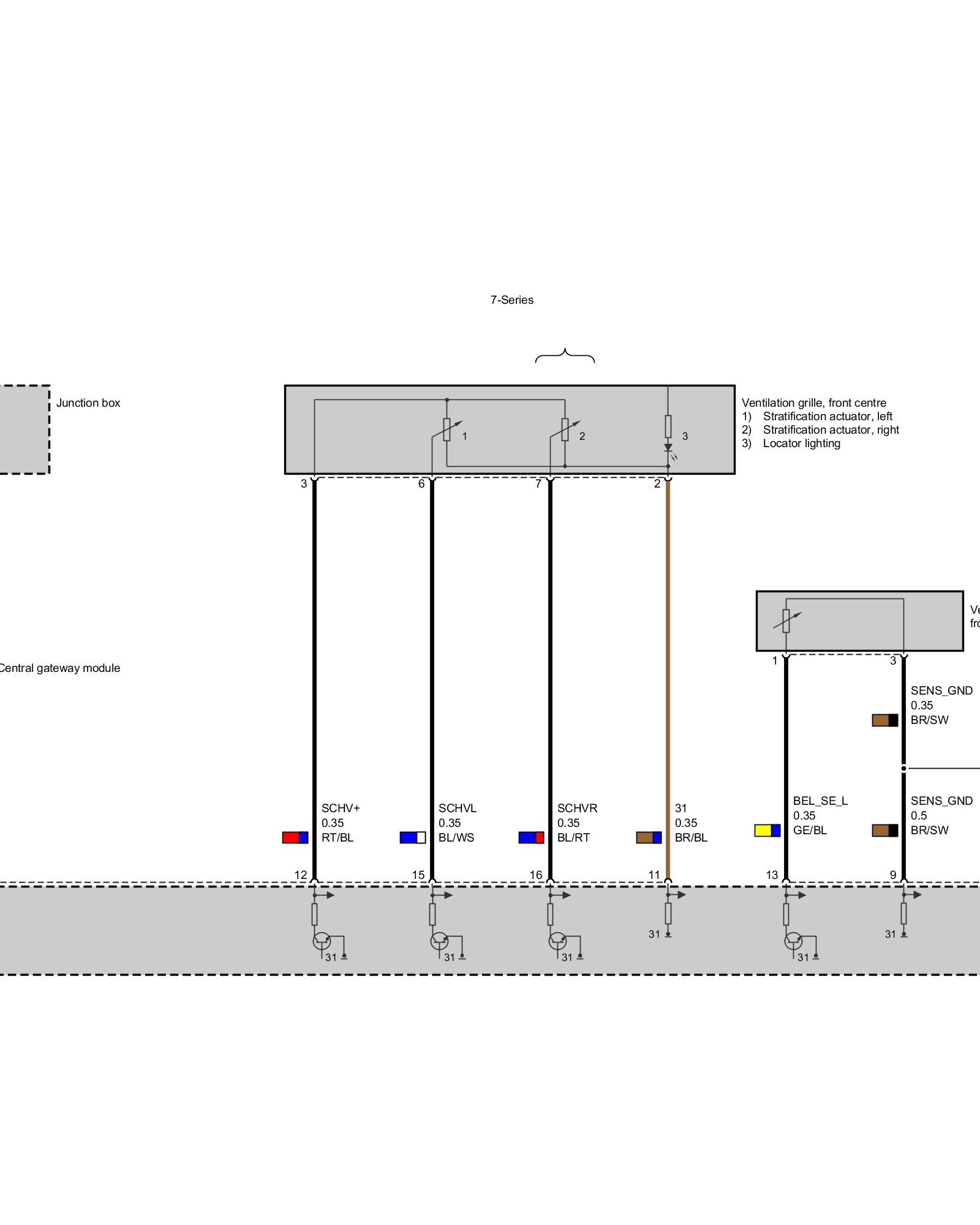

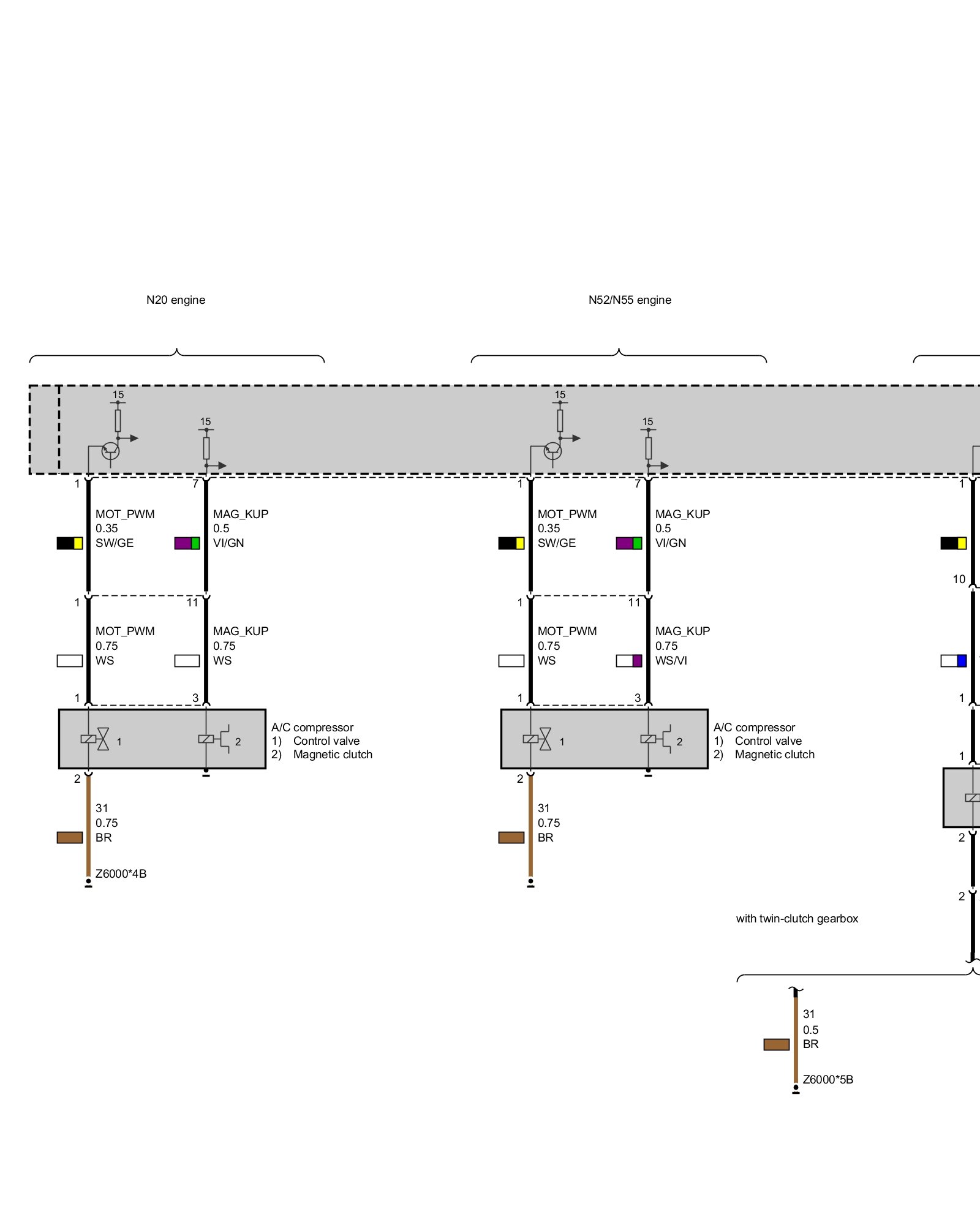

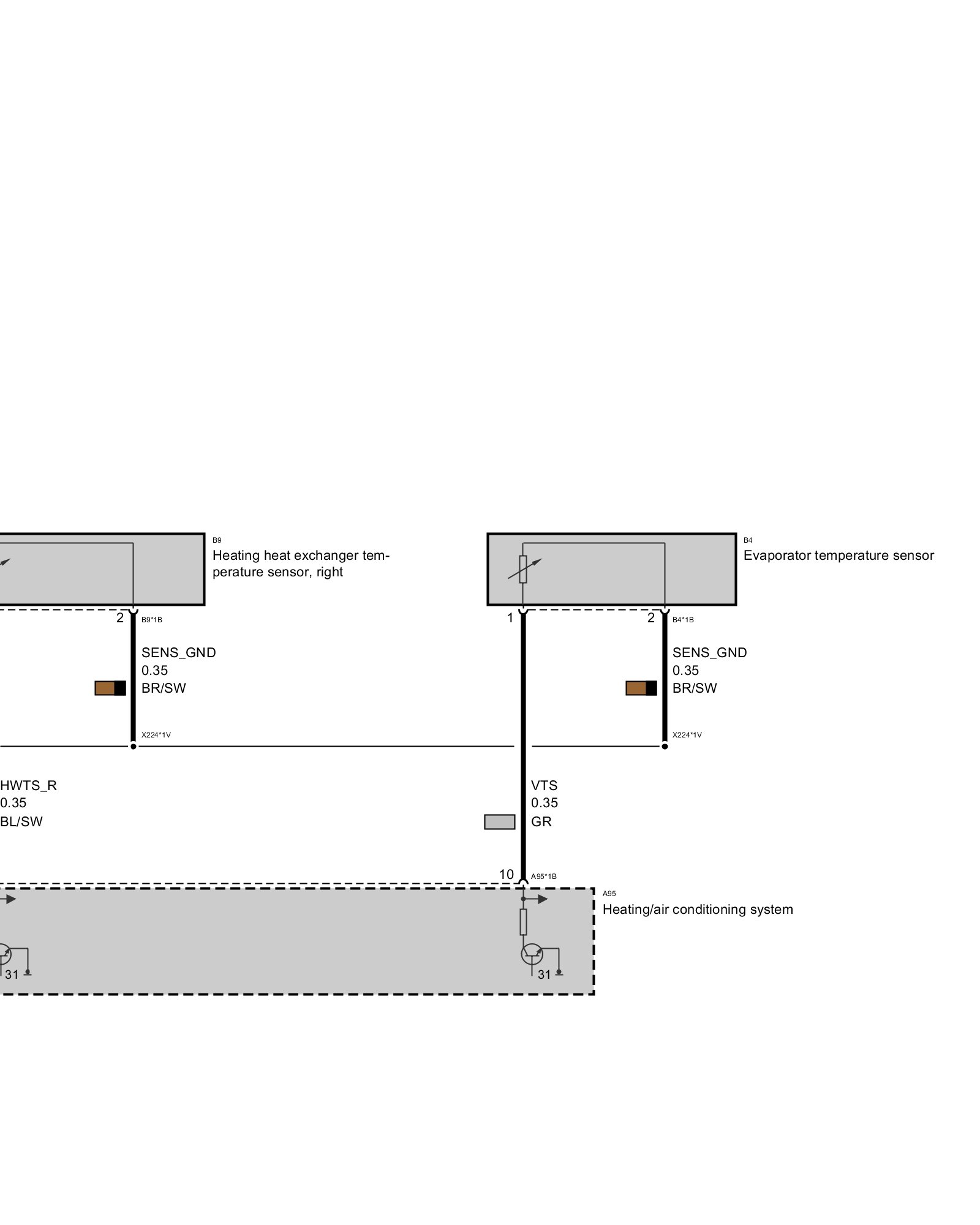

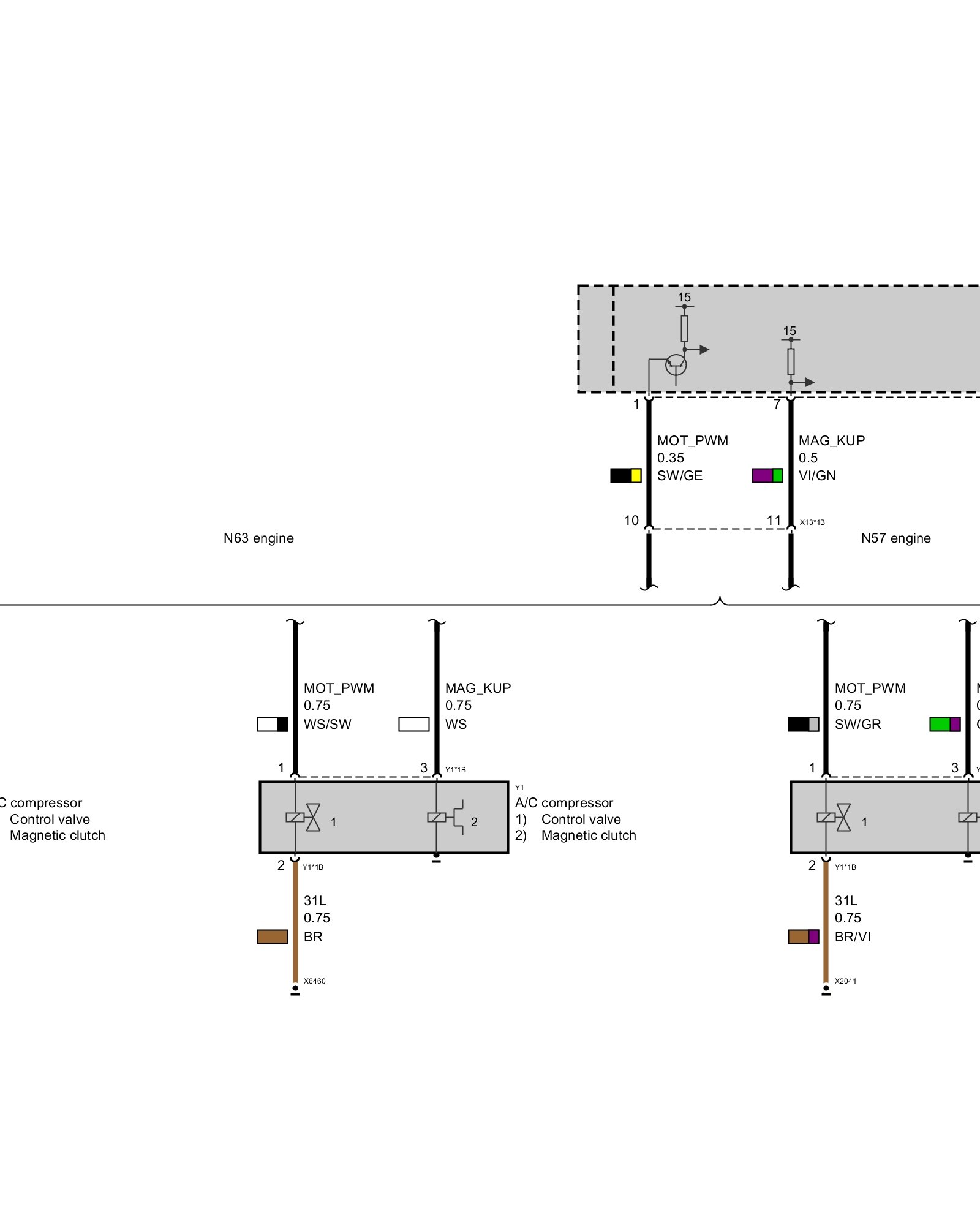

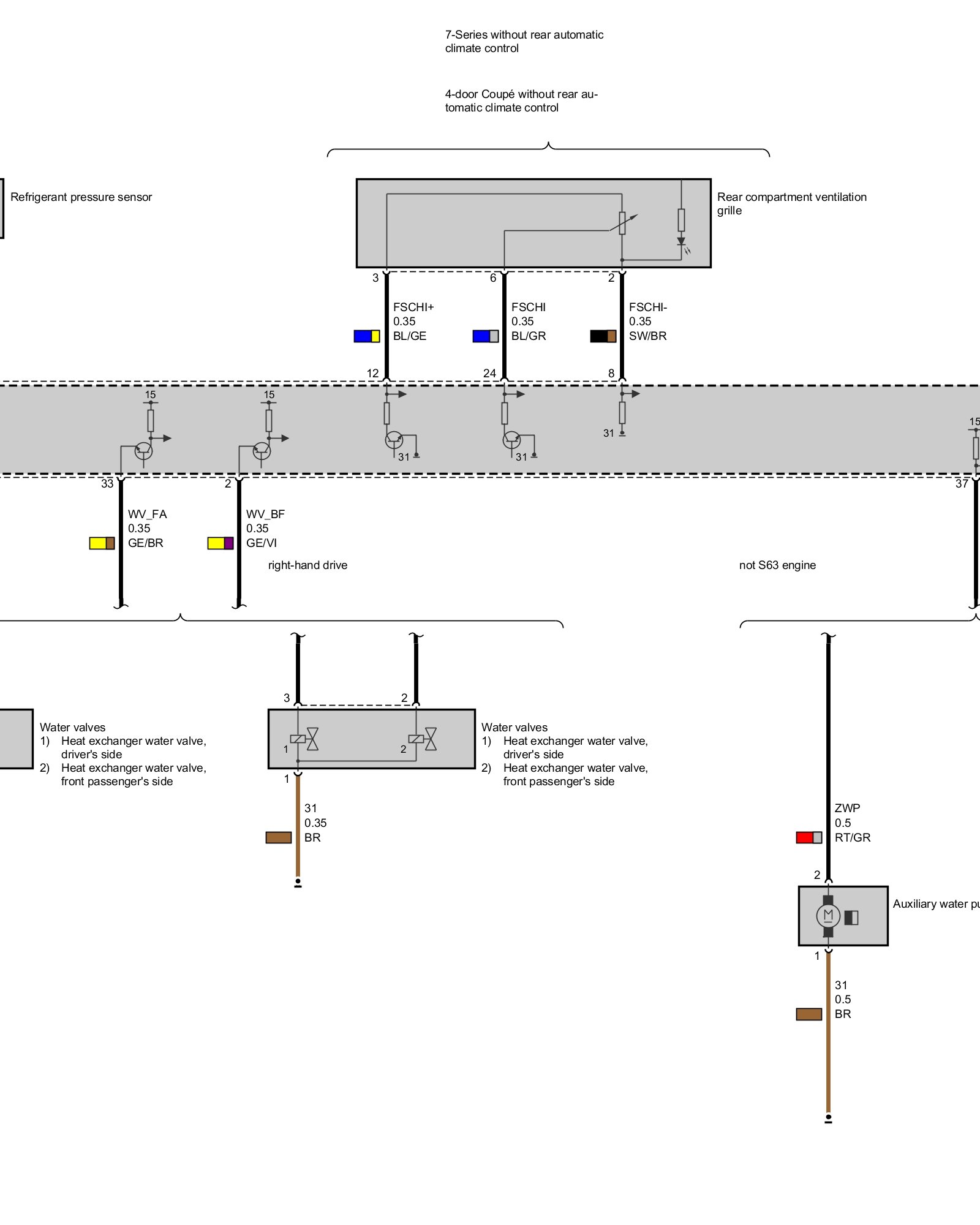

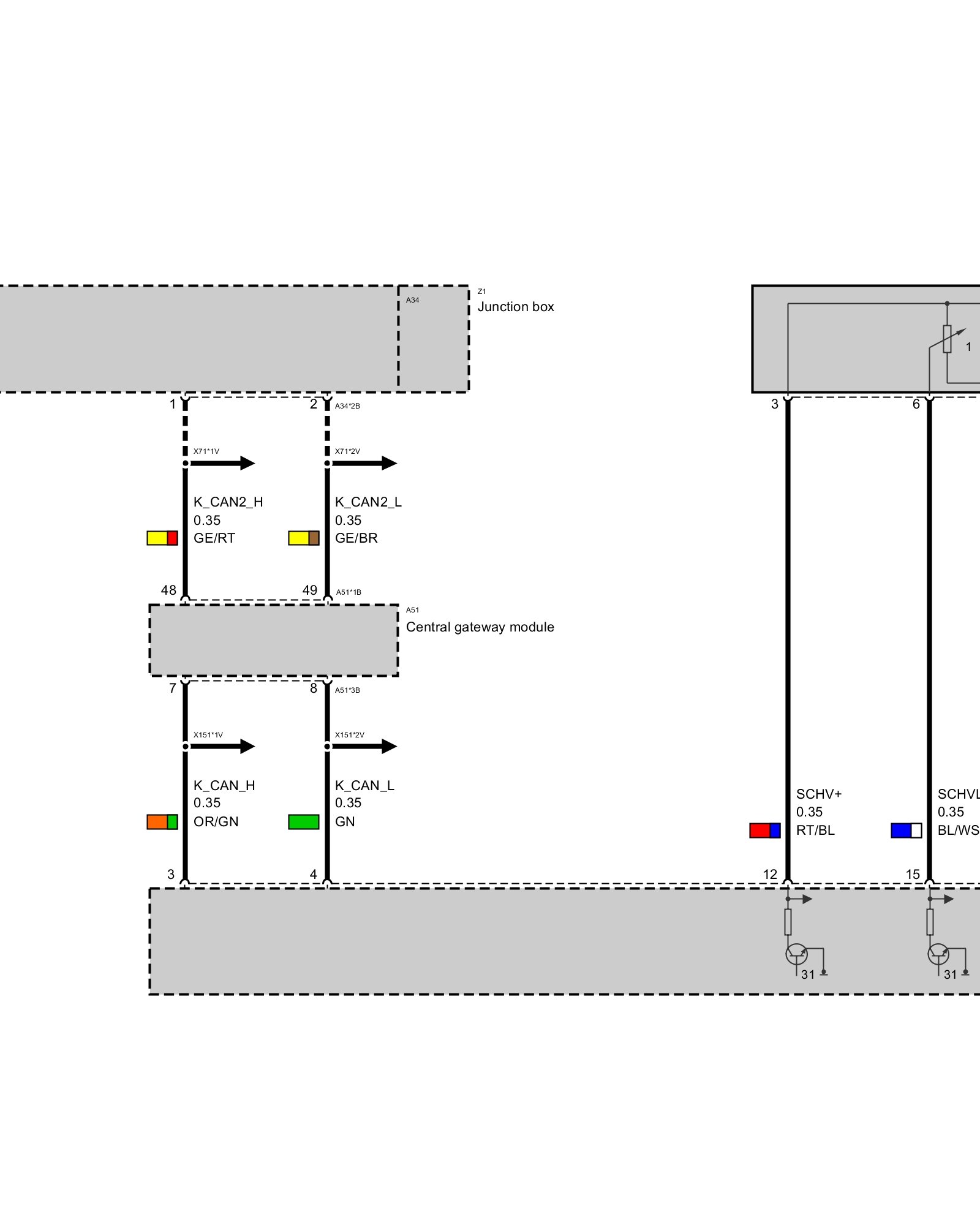

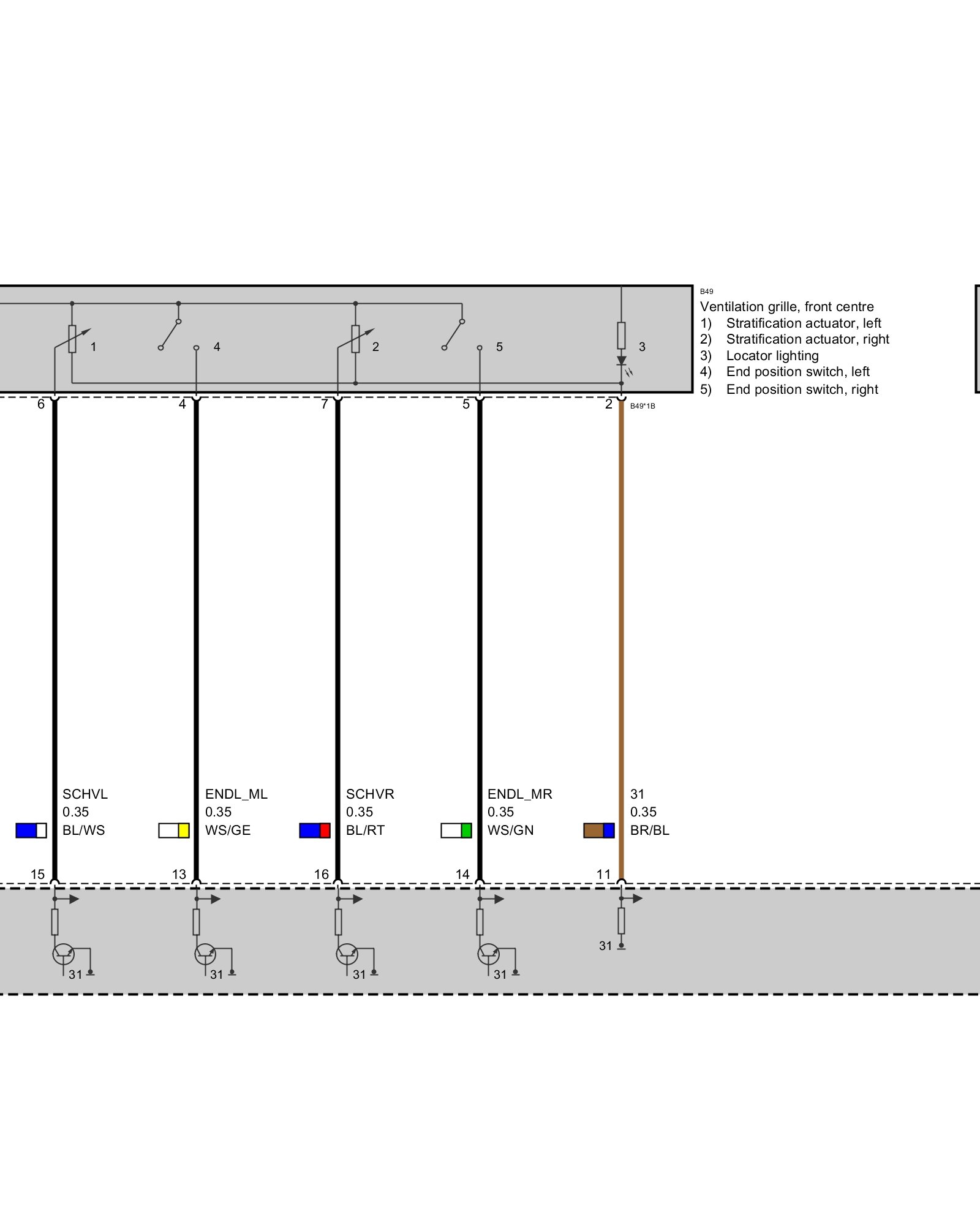

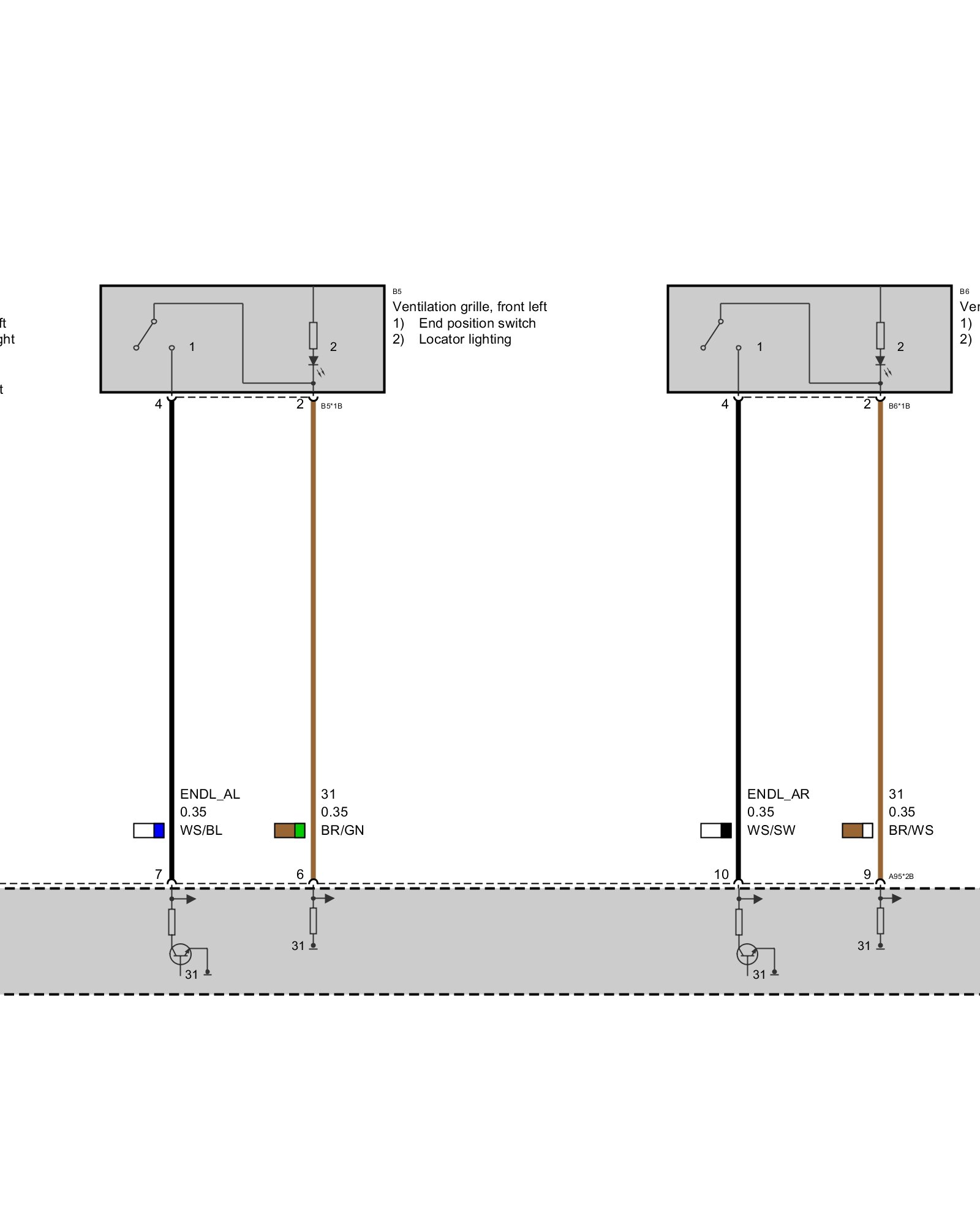

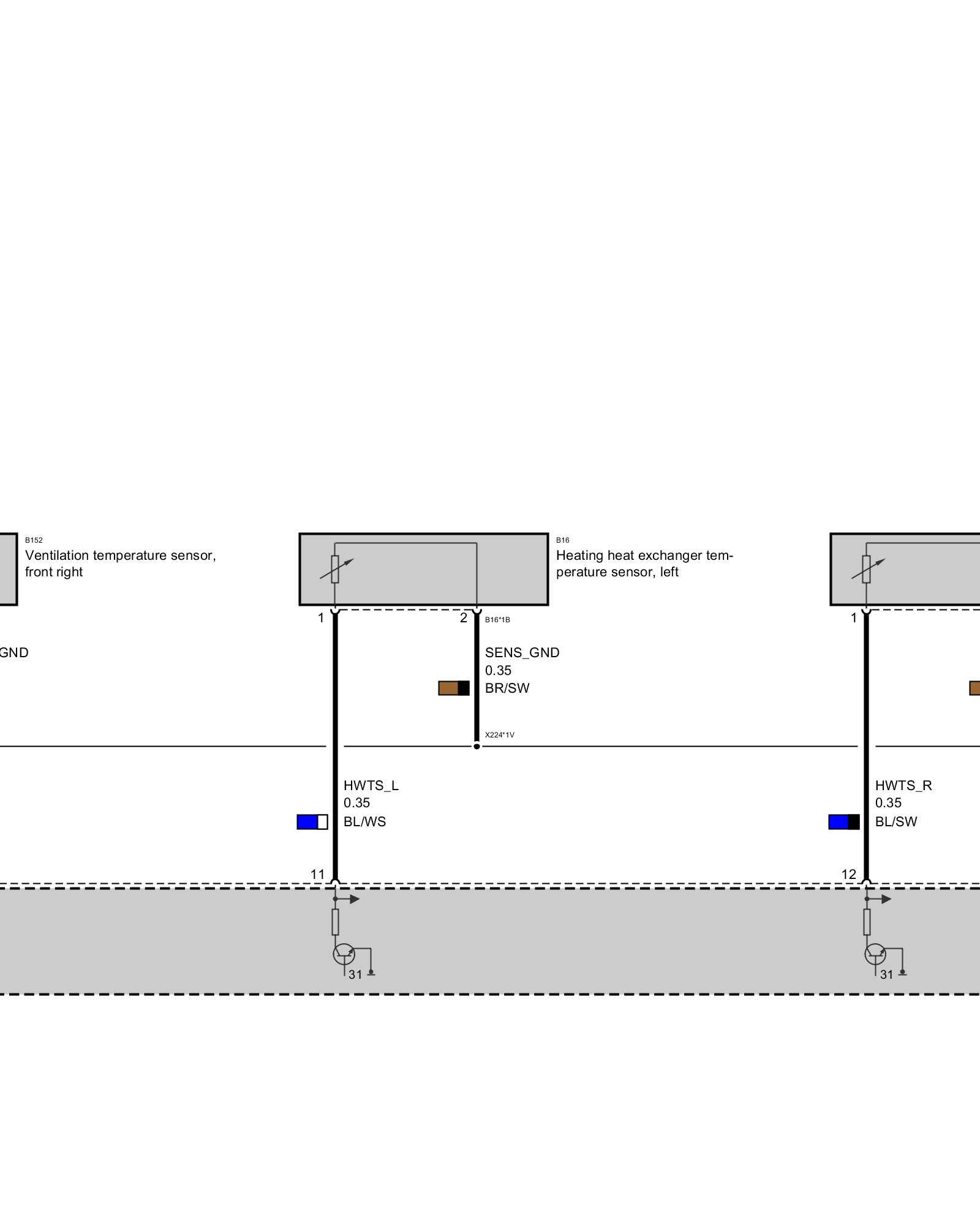

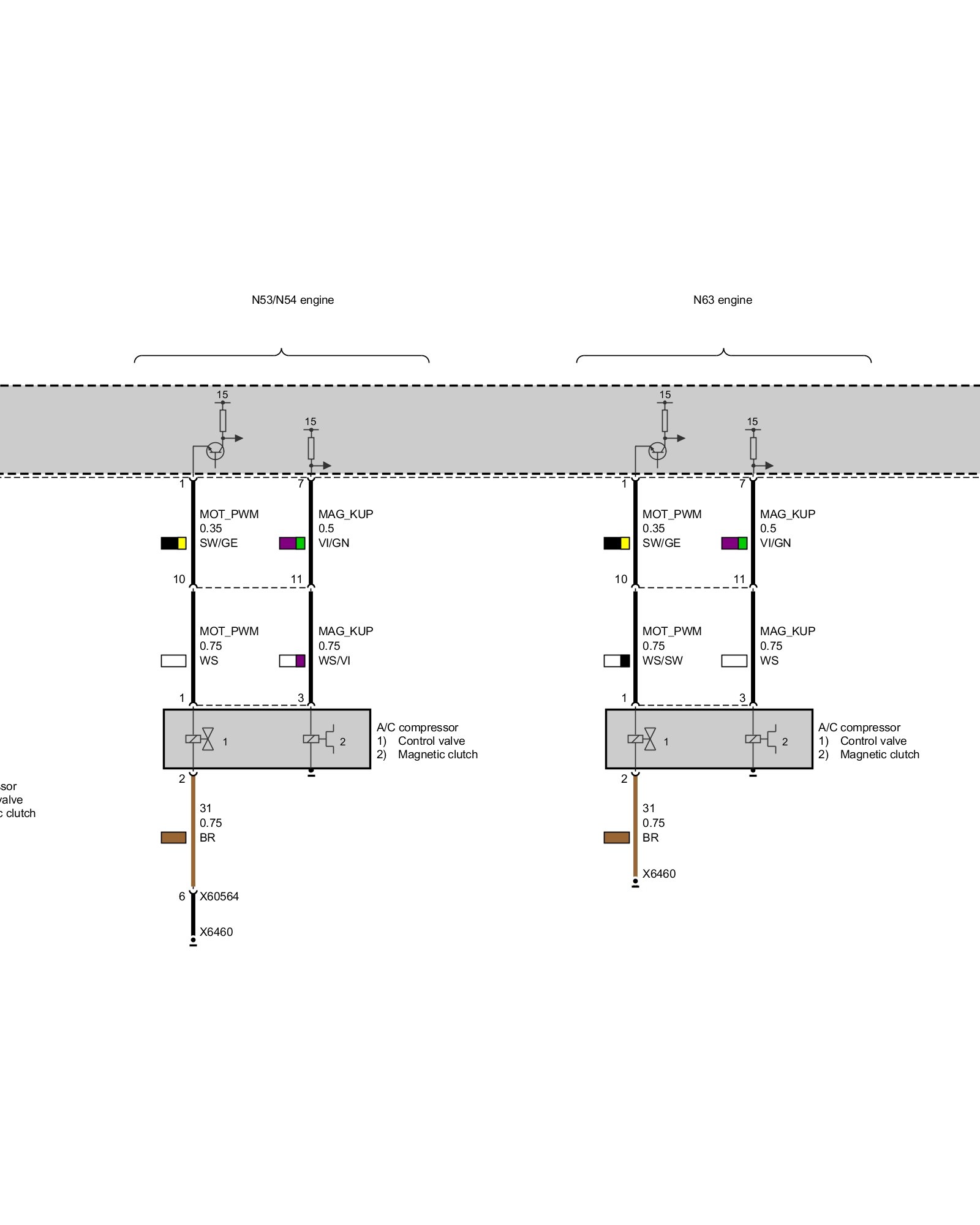

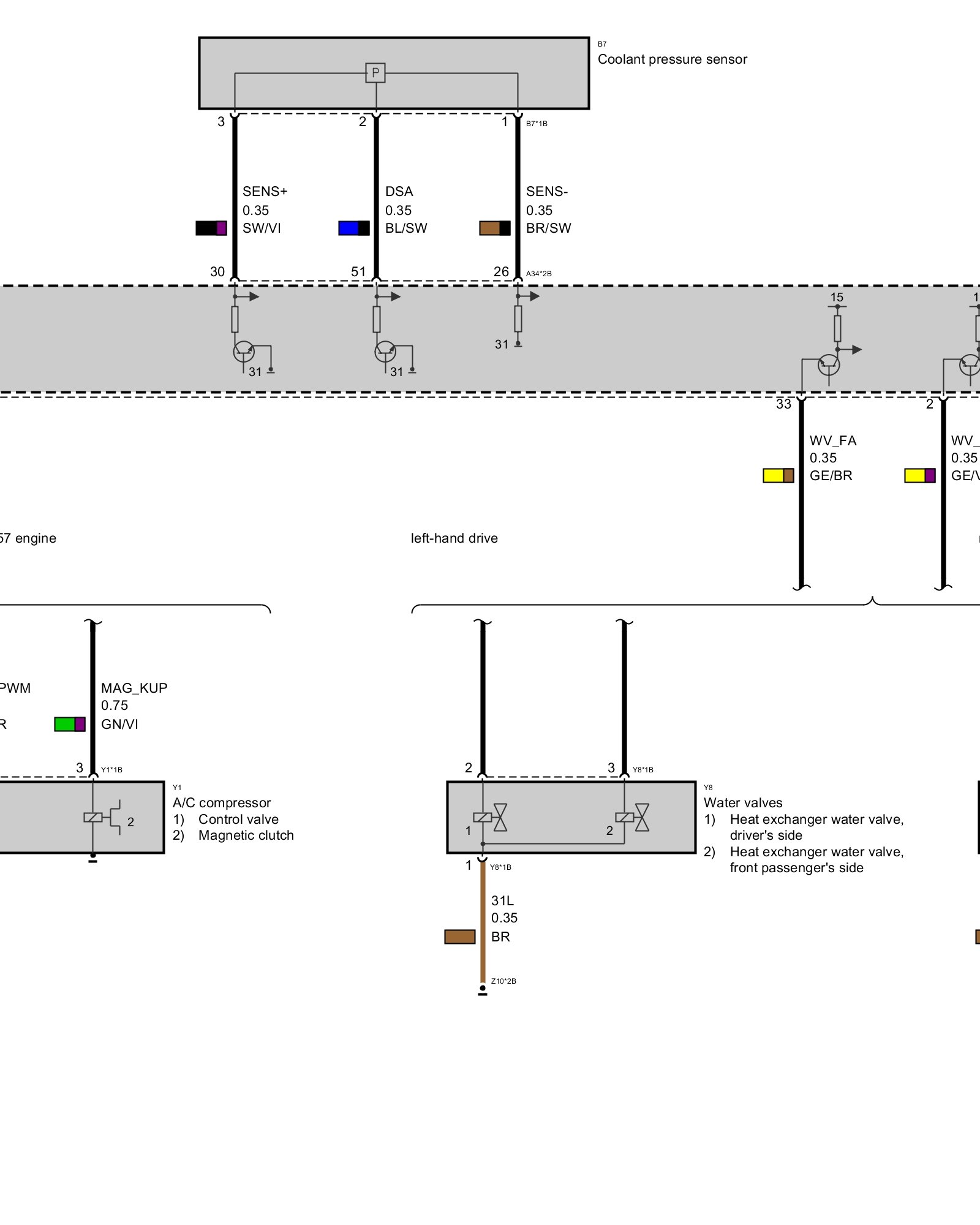

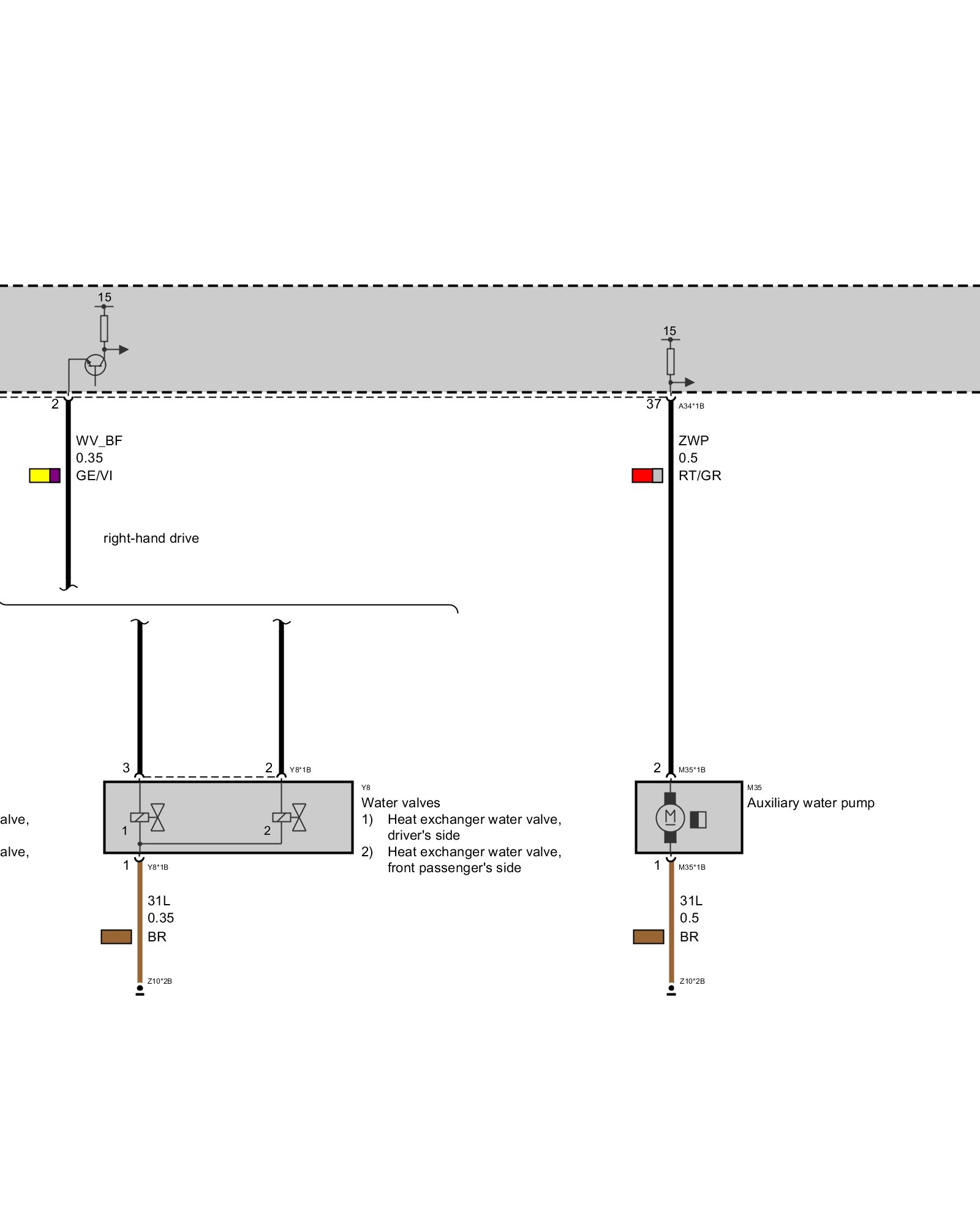

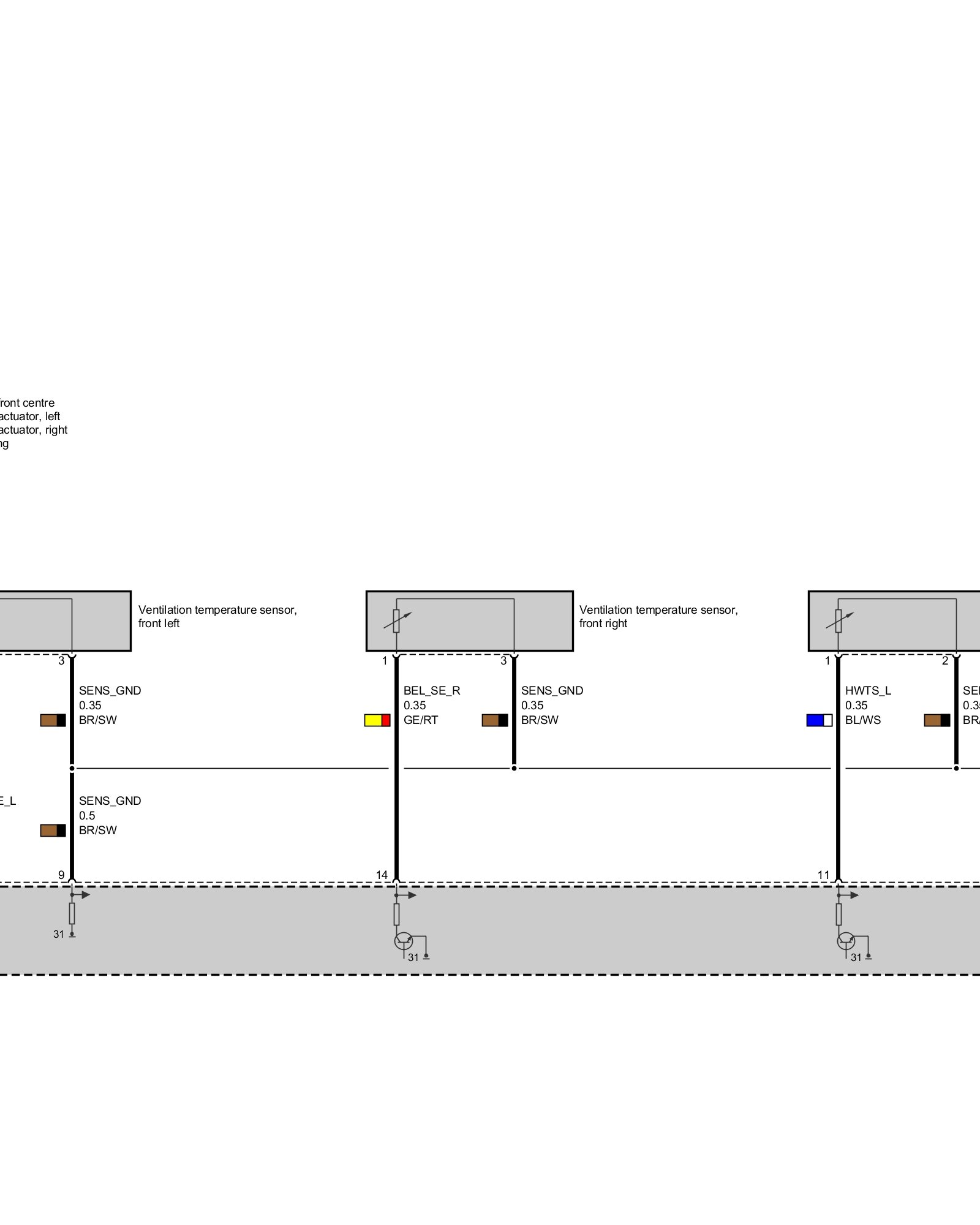

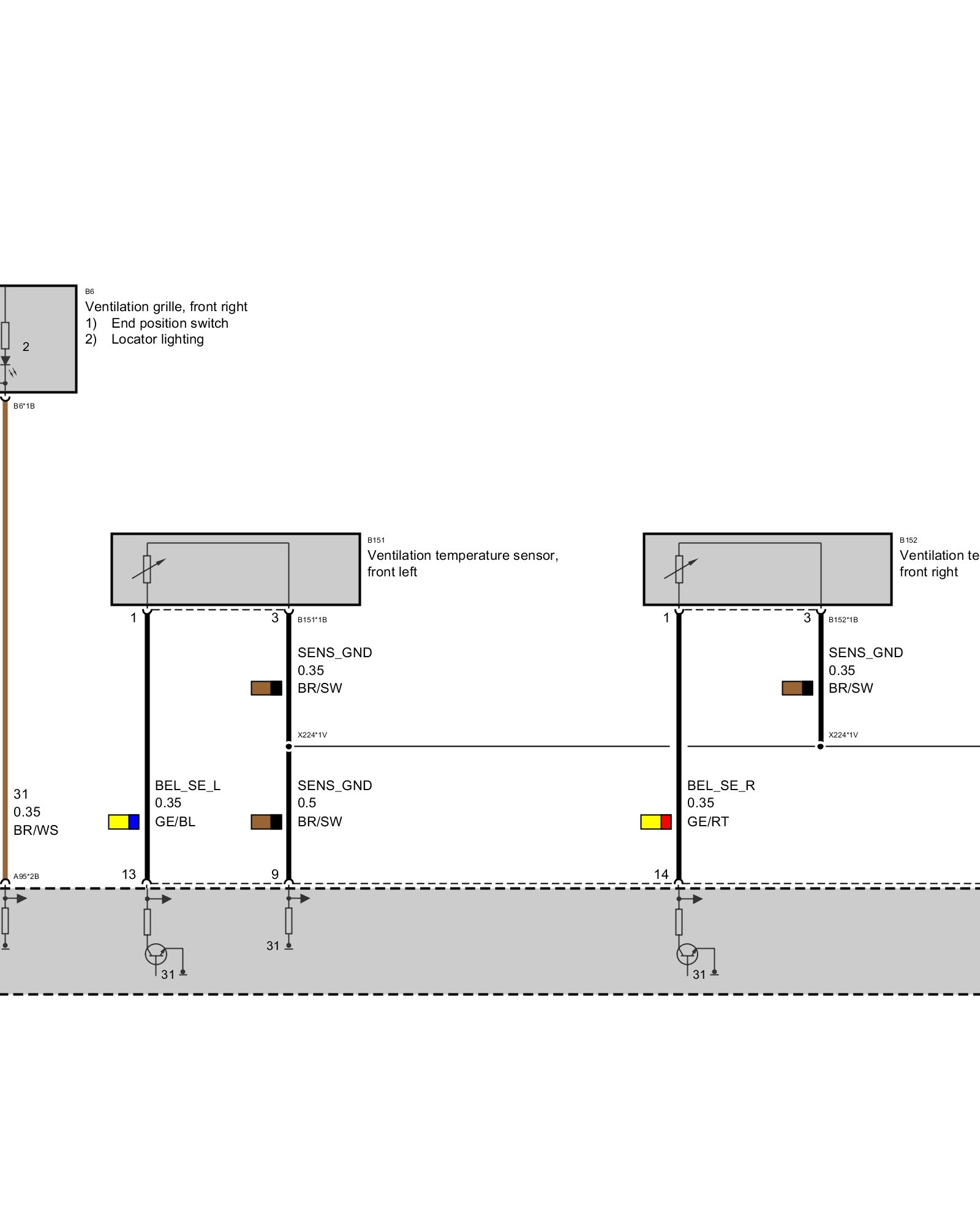

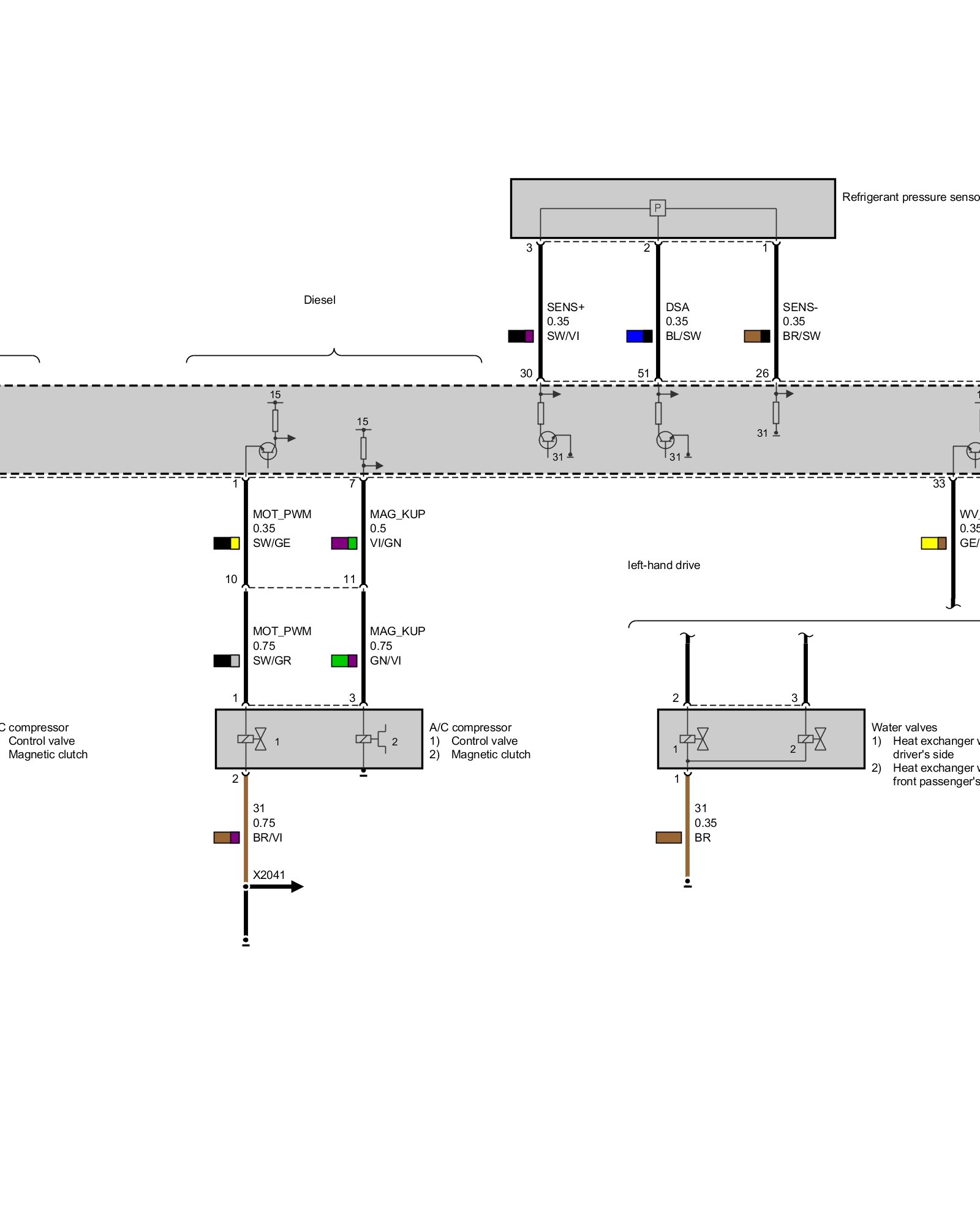

Temperature Control



Temperature Control



Without FKA Rear-Cabin Automatic A/C


































With FKA Rear-Cabin Automatic A/C
