Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>
A4*2B
>>
A4 Rear Passenger's Side Seat Module (With Massage Function)
A4 Rear Passenger's Side Seat Module (With Massage Function)

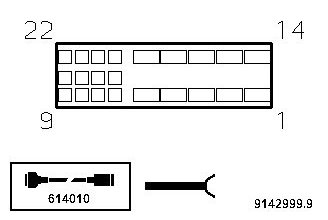

A4*2B
A4 Rear Passenger's Side Seat Module
