Home >> BMW >> 2011 >> Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From A >> A26*6B >> A26 Passenger's Seat Module (Without Massage Function)

A26 Passenger's Seat Module (Without Massage Function)

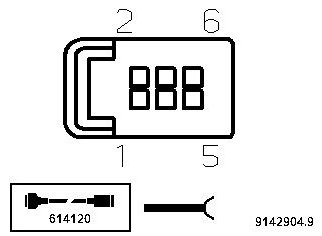

A26*6B







A26 Passenger's Seat Module
