FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2011
>>
Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>

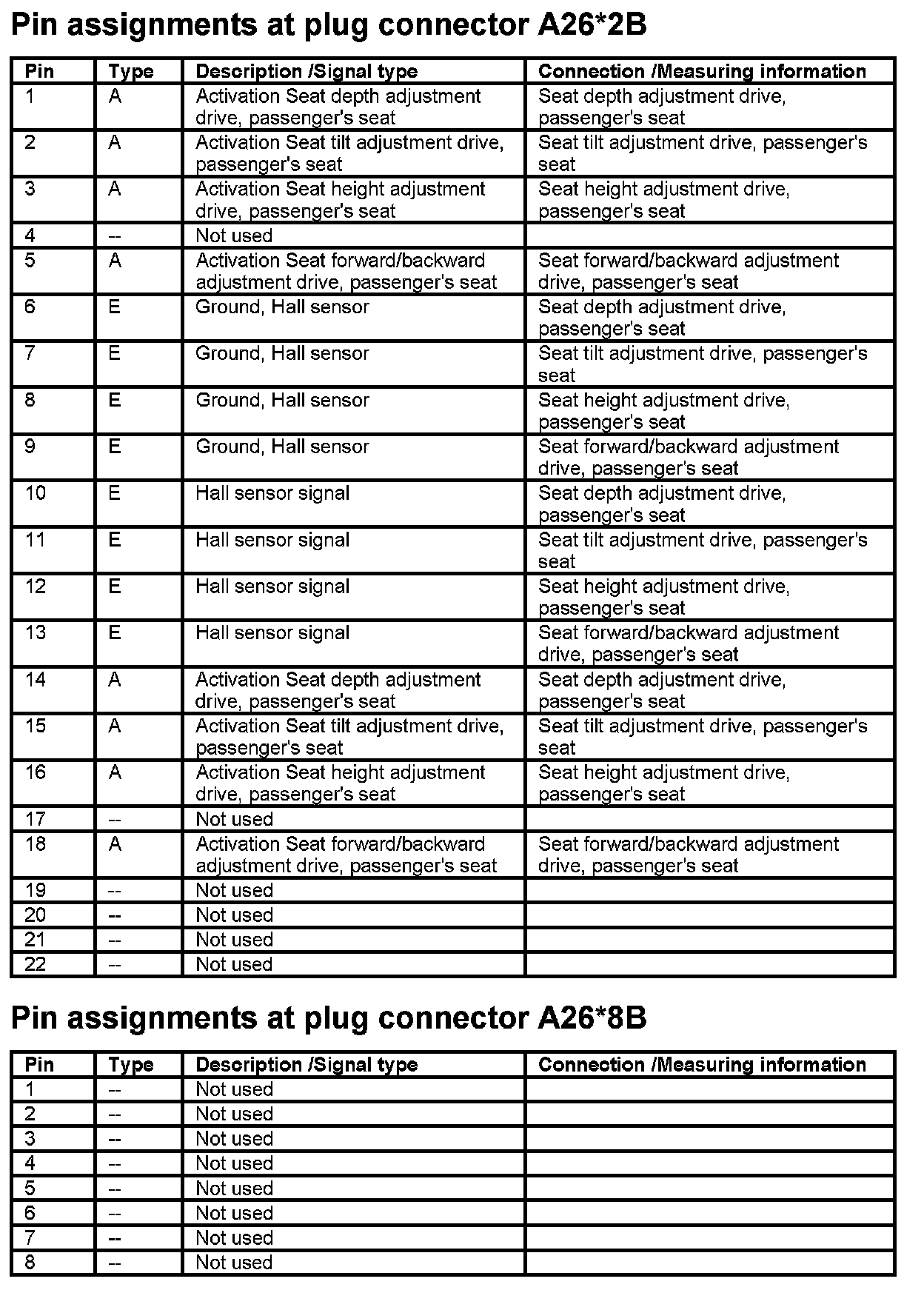

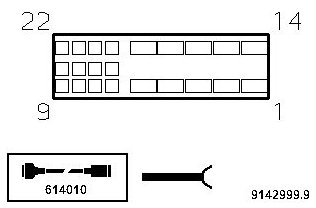

A26*2B
>>
A26 Passenger's Seat Module (With Massage Function)
A26 Passenger's Seat Module (With Massage Function)
A26*2B
A26 Passenger's Seat Module
