Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>

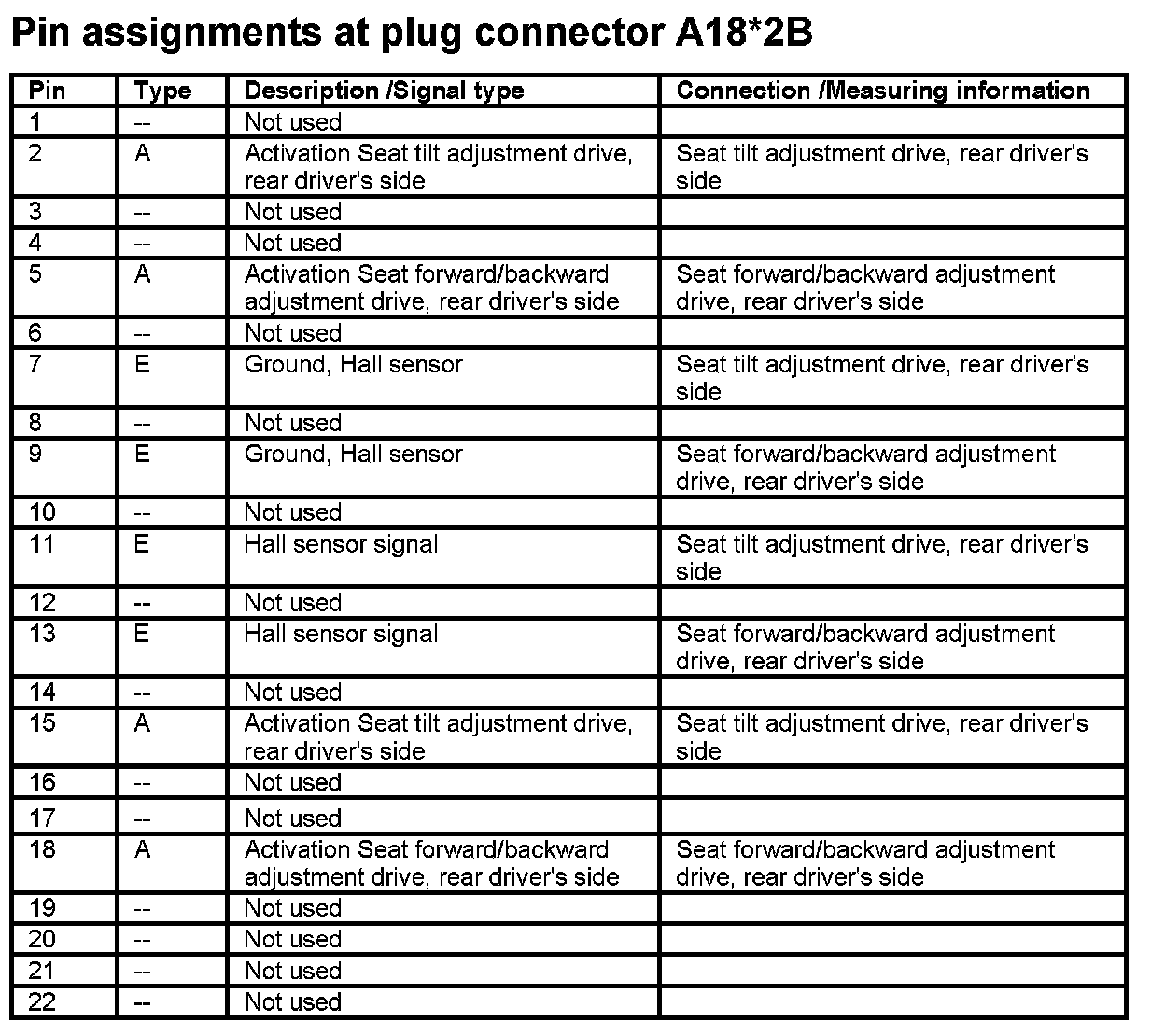

A18*2B
>>
A18 Rear Driver's Side Seat Module (Without Massage Function)
A18 Rear Driver's Side Seat Module (Without Massage Function)

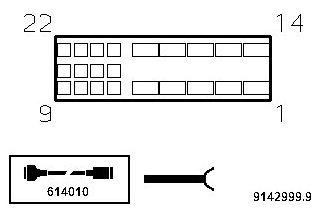

A18*2B
A18 Rear Driver's Side Seat Module
