Home >> BMW >> 2011 >> Alpina B7 xDrive AWD (F01) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Components >> Components With B >> B62101 Oxygen Sensor Before Catalytic Converter

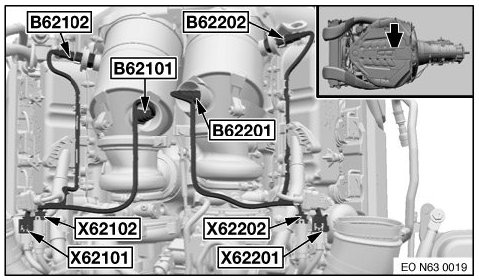

B62101 Oxygen Sensor Before Catalytic Converter



B62102, B62101, B62202, B62201, X62102, X62101, X62202, X62201
