54 12 497 Removing and Installing/Replacing Wind Deflector for Glass Slide/Tilt Sunroof

54 12 497 Removing And Installing/Replacing Wind Deflector For Glass Slide/Tilt Sunroof







Necessary preliminary tasks:
- Completely open glass slide/tilt sunroof lid
- Completely open sliding headlining

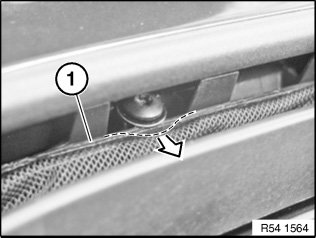

Press net welt (1) with screwdriver towards rear and pull out of guide.

Replacement only:
Cut off net from wind deflector to facilitate removal of net welt.

Installation:
Slide net welt (1) with pointed pliers first on left and right into outermost guide.

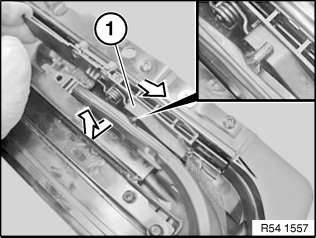

Press controller (1) for wind deflector forwards against spring.
Press wind deflector inwards and disengage from controller.







Installation:

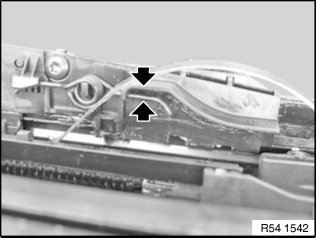

Make sure wind deflector guide is correctly positioned between spring and controller.

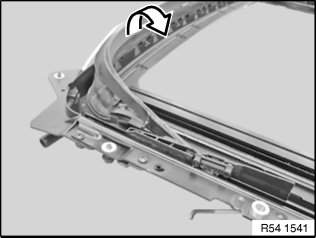

Reposition wind deflector and remove towards top.
