54 12 193 Replacing Carriage For Rain Channel on Left and Right



54 12 193 Replacing Carriage For Rain Channel On Left And Right







Necessary preliminary tasks:
- Remove glass slide/tilt sunroof lid
- Remove rain channel

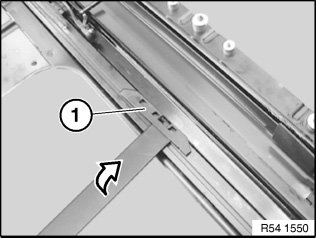

Lever out garage stop (1) with plastic wedge.







Advance carriage (1) up to opening and lift out.
