Pillar Trim Panel

51 43 230 Removing And Installing / Replacing Trim On C-pillar At Bottom Left Or Right







Necessary preliminary tasks:
- Remove belt outlet trim
- Remove entrance cover strip
- Remove backrest

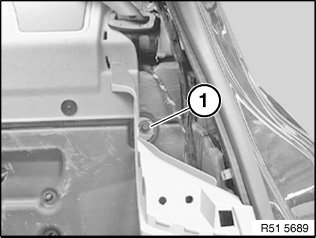

Release plastic nuts (1).







Release plastic nuts (1).
Lever out clip (2).
Unclip trim.

Installation
If necessary, replace faulty clip and retainers on trim.
Make sure trim is correctly seated in seal.
