51 45 470 Removing and Installing/Replacing Driver's Side Hinged Compartment Panel

51 45 470 Removing And Installing/Replacing Driver's Side Hinged Compartment Panel







Necessary preliminary tasks:
- Remove decorative strip on instrument panel on left
- Remove hinged compartment on driver's side

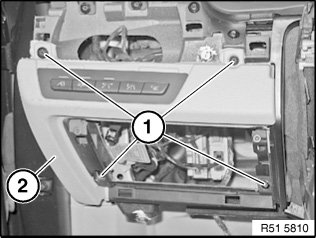

Release screws (1).
Remove hinged compartment panel (2) and unlock and disconnect plug connection behind.

Installation
Make sure hinged compartment panel (2) is correctly seated.







Replacement:
Remove control element for driver assistance system.
