61 31 338 Removing and Installing/Replacing Grip Cover For Gear Selector Switch (Ceramic Application, Operating Elements)

61 31 338 Removing And Installing/replacing Grip Cover For Gear Selector Switch (ceramic Application, Operating Elements)

Special tools required:

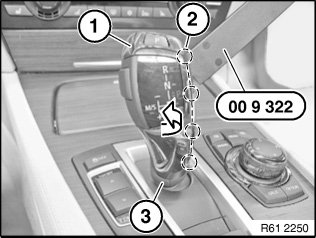

Carefully unclip knob cover (1) 00 9 322 with special tool at points (2) from gear selector switch (3) and remove in direction of arrow.

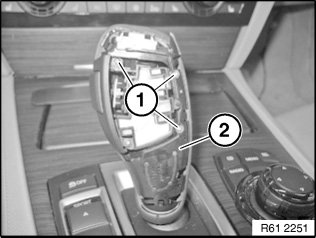

Release screws (1) and remove support (2).

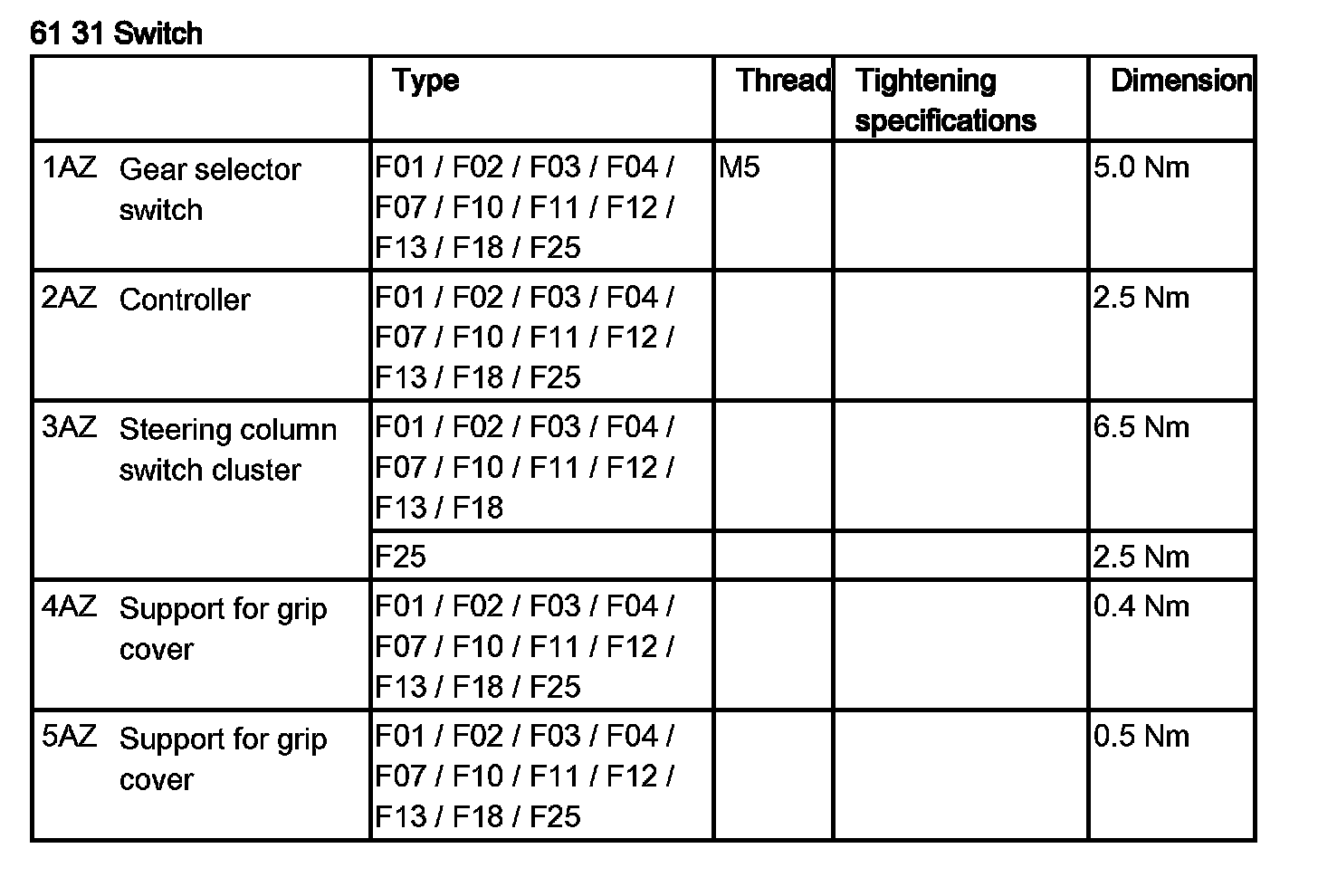

Tightening torque 61 31 4AZ.







IMPORTANT: Removed ceramic carrier (2) must not be reused.

Installation note:

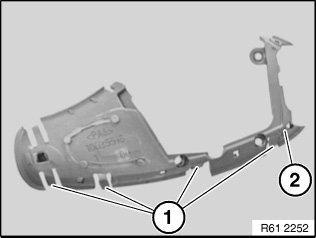

Engagement lugs (1) of ceramic carrier (2) must not be damaged.
