22 11 001 Replacing Right Engine Mount AWD

22 11 001 Replacing right engine mount (N63) AWD





Necessary preliminary tasks:
^ Secure engine in installation position
^ Remove rear underbody protection
^ Release engine support arm





Release bolt (1) and remove engine mount.

Important!

Installation:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the bolt connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ.





Installation:

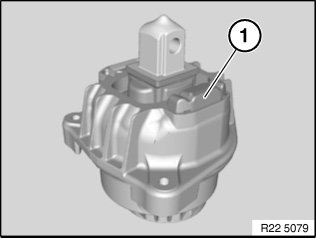

Rubber section (1) of engine mount must point to middle of vehicle.

��:
