67 65 019 Removing and Installing/Replacing Drive For Left or Right Roller Sun Blind

67 65 019 Removing And Installing/Replacing Drive For Left Or Right Roller Sun Blind

Necessary preliminary tasks:
- Remove door trim panel

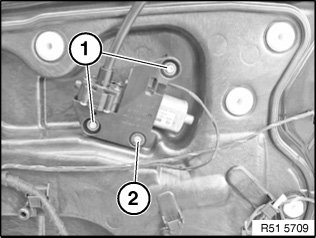

Release screws (1).
Tightening torque 51 16 20AZ .
Release screw (2).
Tightening torque 51 16 19AZ .

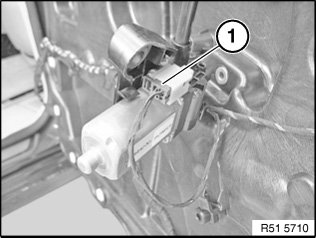

Unfasten plug connection (1) and disconnect.
Pull flex shaft out of drive.

Installation:
Make sure flex shaft is correctly seated in drive.

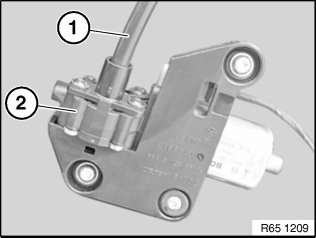

Withdraw flex shaft (1) from gearing (2).

Installation:
Make sure flex shaft (1) is correctly seated in gearing (2).
