67 65 010 Removing and Installing or Replacing Drive Unit For Roller Sun Blind

67 65 010 Removing And Installing Or Replacing Drive Unit For Roller Sun Blind







Necessary preliminary tasks:
- Remove rear window roller blind

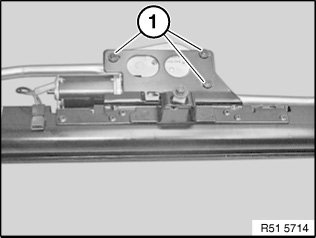

Release screws (1).

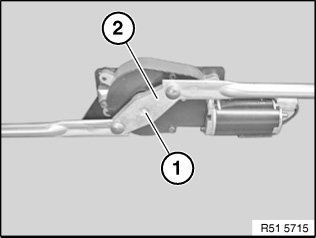

Remove drive linkage (2).

Installation:
Drive linkage (2) can only be installed in one position.







Release screws (1).
Remove drive.

Installation:
Ensure correct cable routing.
