51 35 001 Removing and Installing / Replacing Gearbox For the Roller Sun Blind of Left or Right Rear Door

51 35 001 Removing And Installing / Replacing Gearbox For The Roller Sun Blind Of Left Or Right Rear door







Necessary preliminary work:
- Retract the roller sunblind
- Remove door trim panel
- Remove the weather strip on the inside of the triangle window

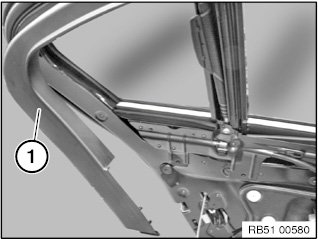

Partially loosen the cover for the window frame (1).







Unfasten screws (1) to (3).
Tightening torque 51 16 18AZ.







Release screws (1).
Pull the Flex shaft (2) out.







Slacken bolt (1).

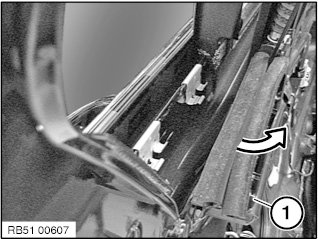

Swivel the gearbox (1) to the side.

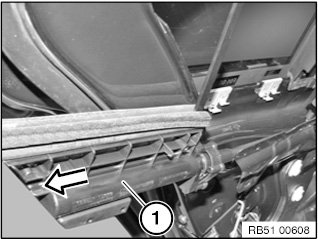

Pull the gearbox (1) off in direction of arrow.







Installation note:
Pivot arm (2) must be vertical.

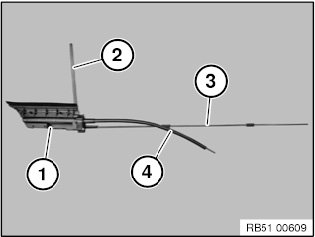

Feed in gearbox (1) with pivot arm (2), radial shaft axle (3) and Flex shaft (4).
Radial shaft axle (3) must be seated correctly in the gearing.
