51 16 405 Removing and Installing/Replacing Roller Sun Blind on Side Window of Left or Right Rear Door

51 16 405 Removing And Installing/Replacing Sun Protection On Fond Door Window Glass Left And Right







Necessary preliminary tasks:
- Remove door trim panel







NOTE: Shown with door removed for purposes clarity.

Trim panel overview:

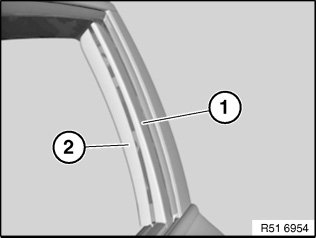

Remove outer (1) and inner (2) trim panel. Refer to the following steps.







Unclip inner trim panel (1).







Unclip outer trim panel (1).

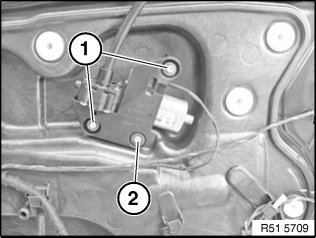

Release screws (1).
Tightening torque 51 16 17AZ.

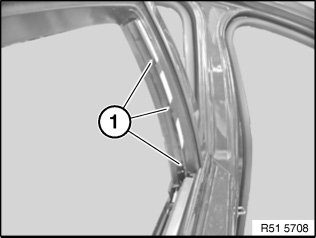

Release screws (1).
Tightening torque 51 16 20AZ.

Release screw (2).
Tightening torque 51 16 19AZ.

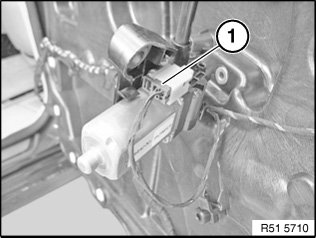

Unfasten plug connection (1) and disconnect.

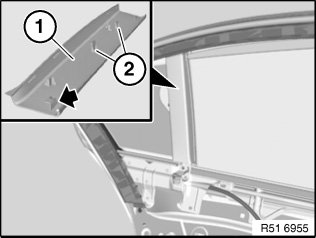

First remove trim panel (1) on top (2). Unhook trim panel (1), pulling it up at an angle (see arrow).

Installation:
Hook (arrow) and catches (2) must not be damaged.







Release screws.
Tightening torque 51 16 18AZ.

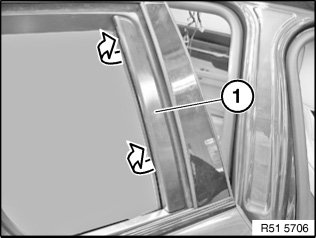

Unlatch roller sun blind in marked area and remove.







Installation:
Catches of roller sun blind (1) must not be damaged.
